A/C Compressor Control Relay

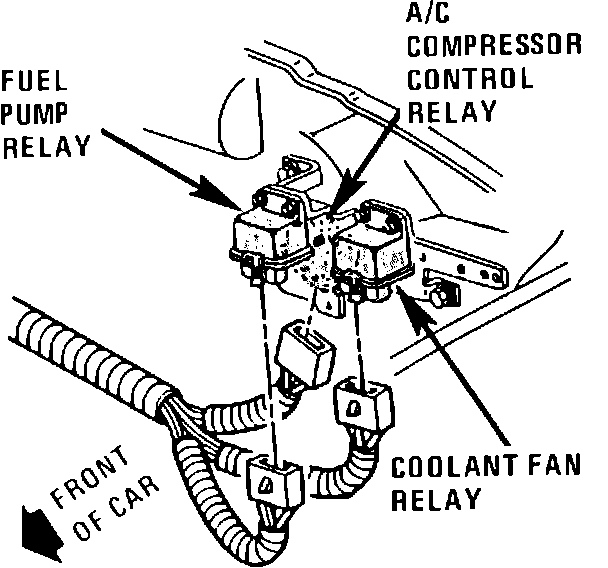

LH Side Of Radiator:




LH Front Of Cowl, Near Master Cylinder

Applicable to: 1984-85 w/V6-173 Engine

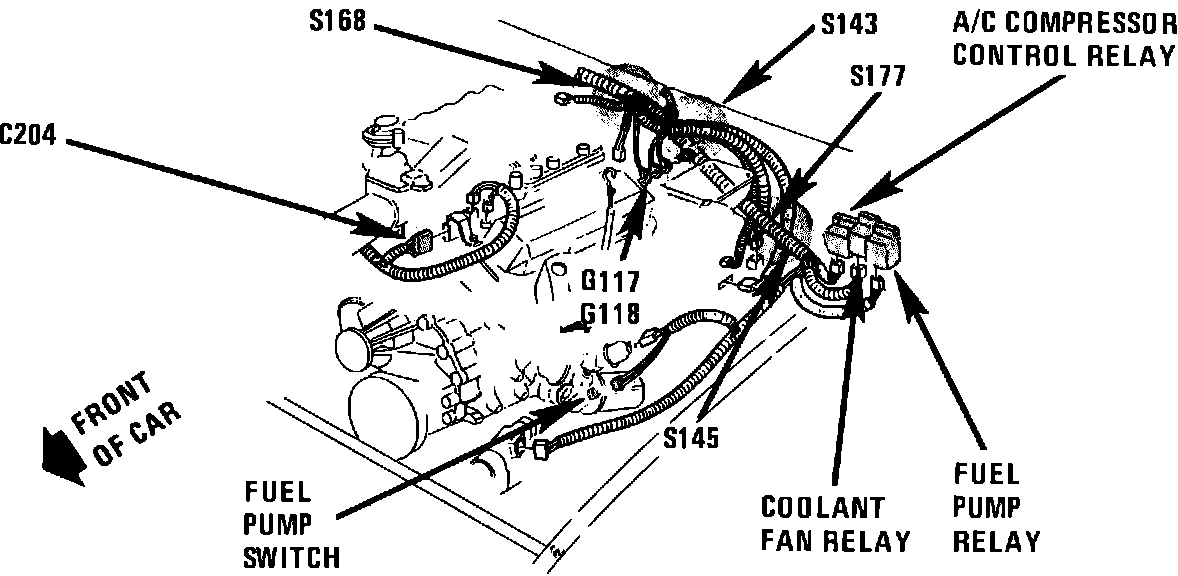

V6-173 Engine Compartment:




LH Front Of Cowl, Near Master Cylinder

Applicable to: 1984-85
