Home >> Pontiac >> 1985 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

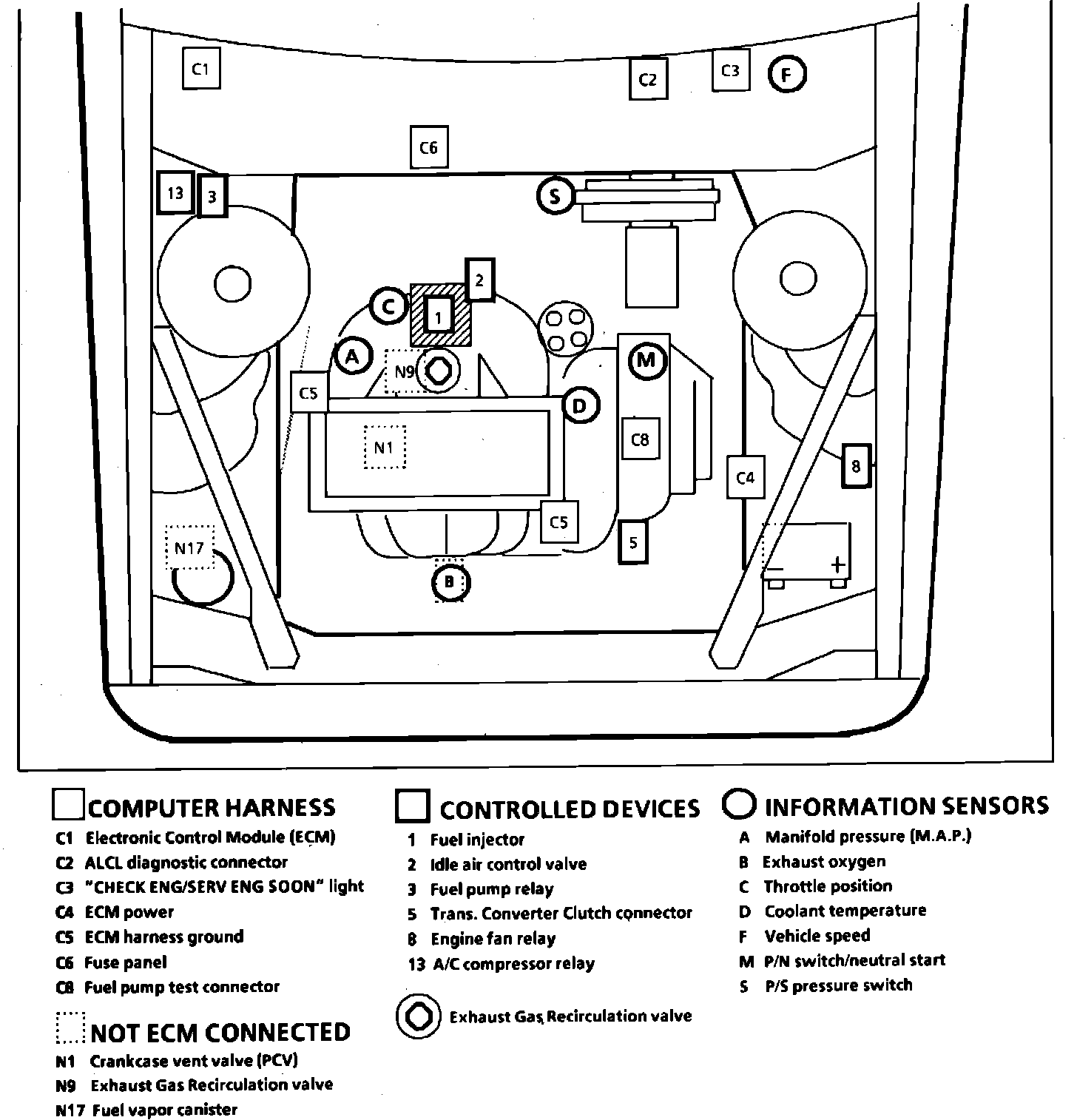

Fig. 15 Emission Component Location. 1985 Celebrity W/4-151/2.5L, TBI:
