Home >> Pontiac >> 1984 >> Firebird V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

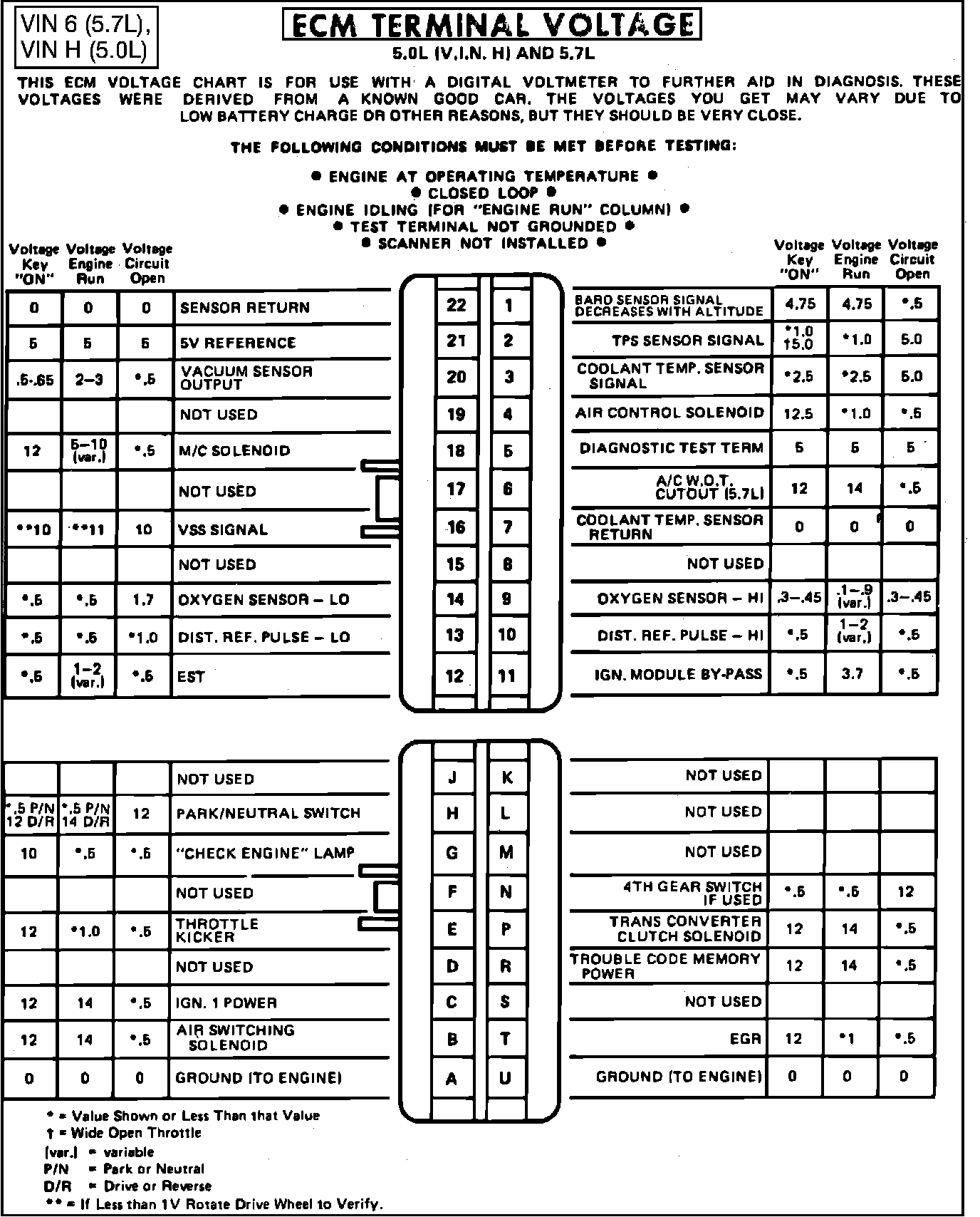

Fig. 004 - ECM Connector Terminal Identification & Voltage Specifications.:
