Home >> Pontiac >> 1982 >> Grand Prix V6-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Mixture Control Solenoid >> Locations

Mixture Control Solenoid: Locations

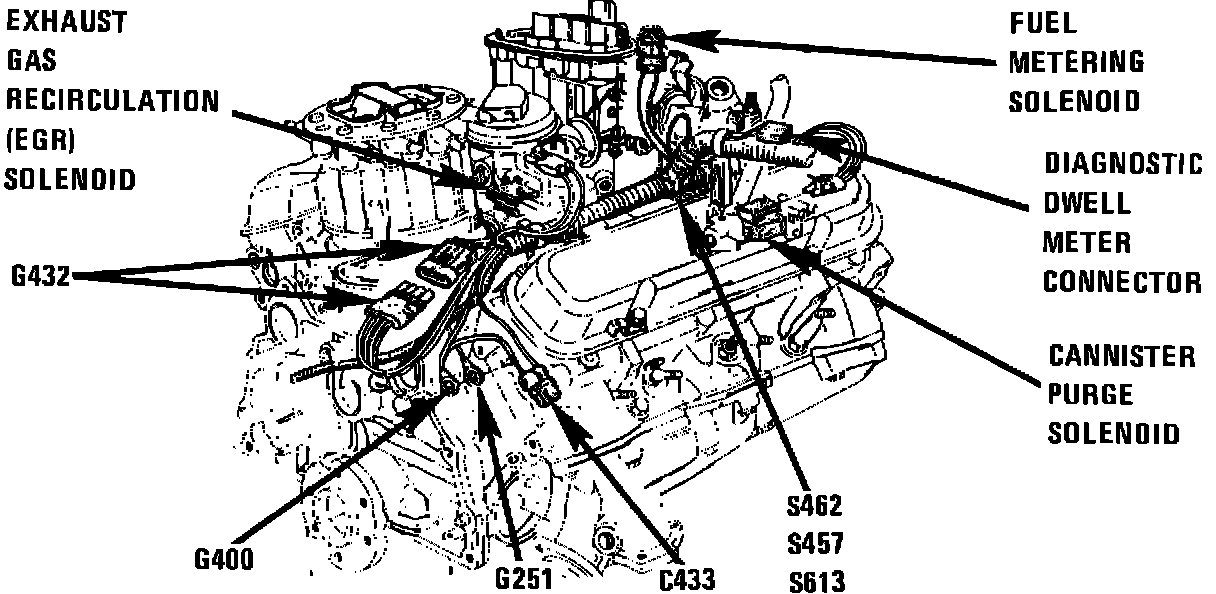

RH Side Of V8 Engine.:




Attached To RH Front Of Carburetor

Applicable to: 1981 Grand Lemans, Lemans & Grand Prix

Top Of V6 Engine.:




Attached To RH Front Of Carburetor

Applicable to: 1982 Grand Prix & Bonneville

Top Of V6 Engine.:




Attached To RH Front Of Carburetor

Applicable to: Grand Lemans, Lemans, 1981-82 Grand Prix & 1982 Bonneville
