Replacement

REMOVAL
1. Remove the right trim panel.
2. Disconnect wire connector from RKE module.

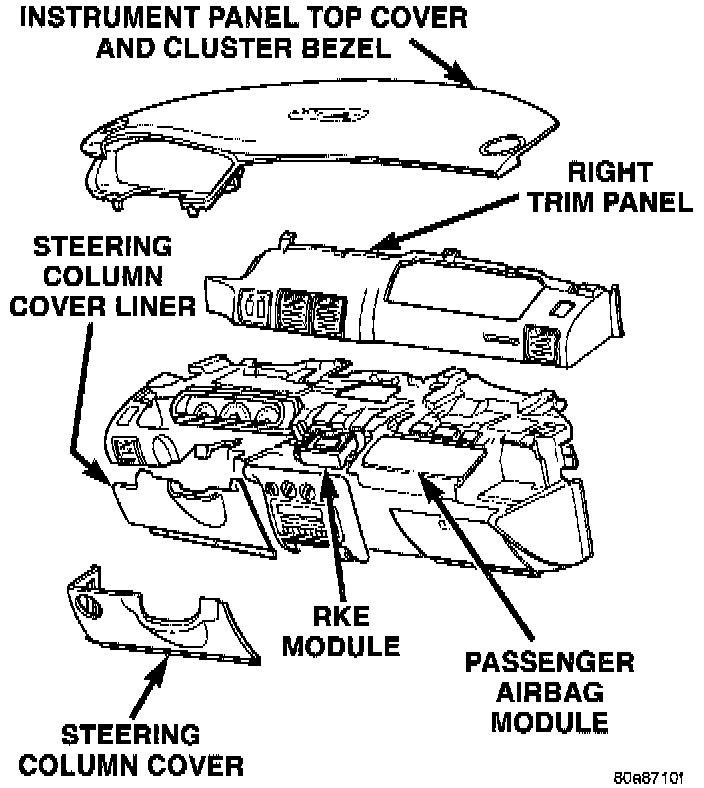

RKE Module Location:

3. Remove screws holding RKE module to instrument panel assembly.
4. Remove module.

INSTALLATION
- For installation, reverse above procedures.
