Timing Component Alignment Marks: Locations

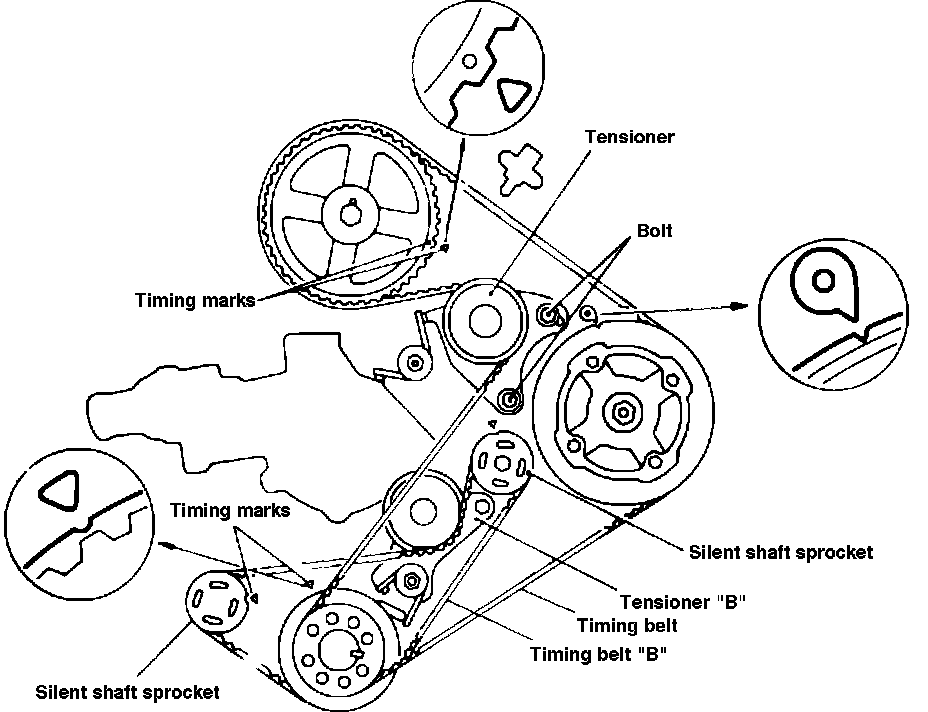

Fig. 2 Aligning of timing belt timing marks:

Fig. 6 Timing belt B tension adjustment:

Fig. 8 Timing belt installation & sprocket timing mark alignment:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
