Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

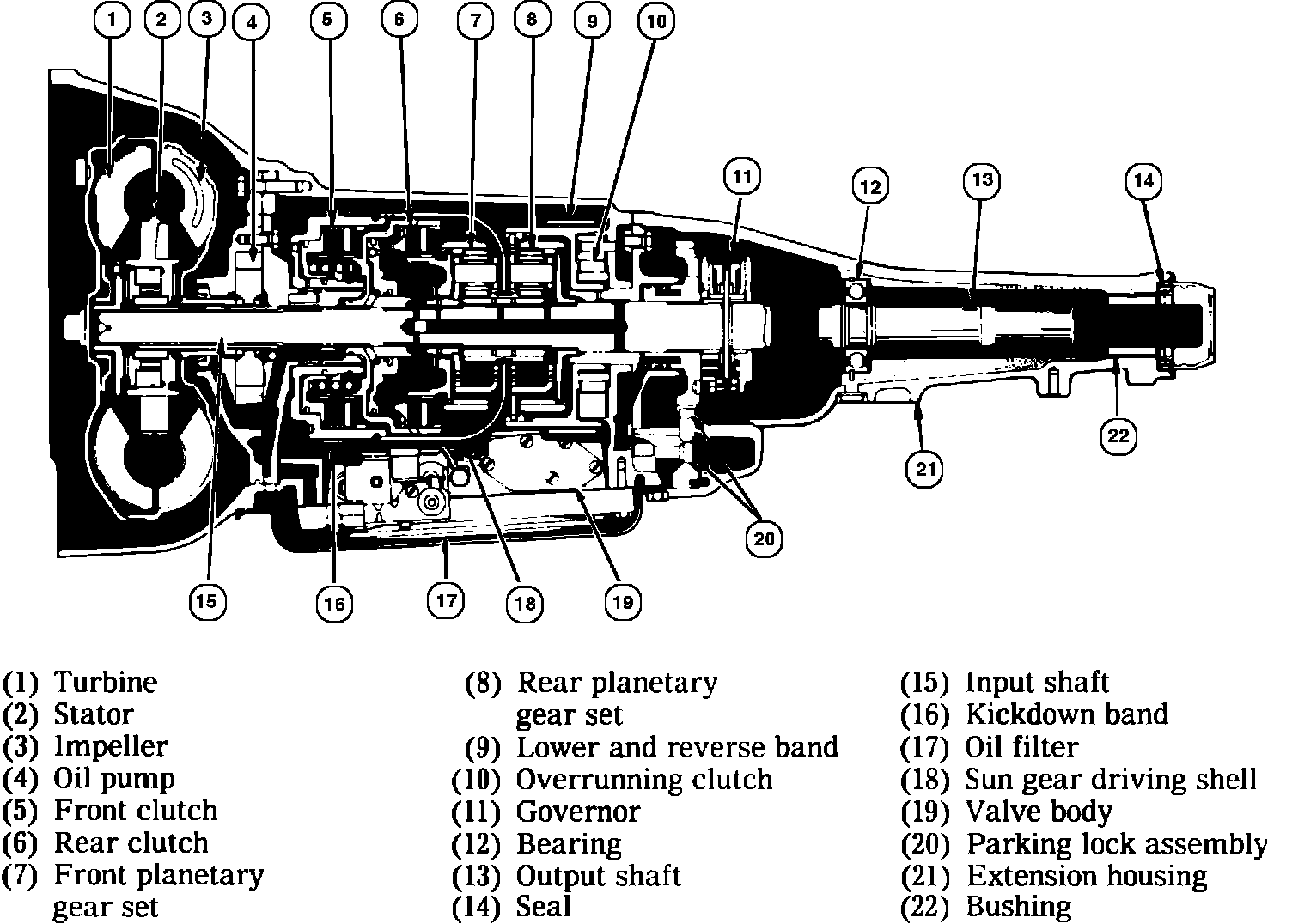

Fig. 1 Sectional view of Torqueflite automatic transmission:
