Home >> Oldsmobile >> 1990 >> Custom Cruiser V8-307 5.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

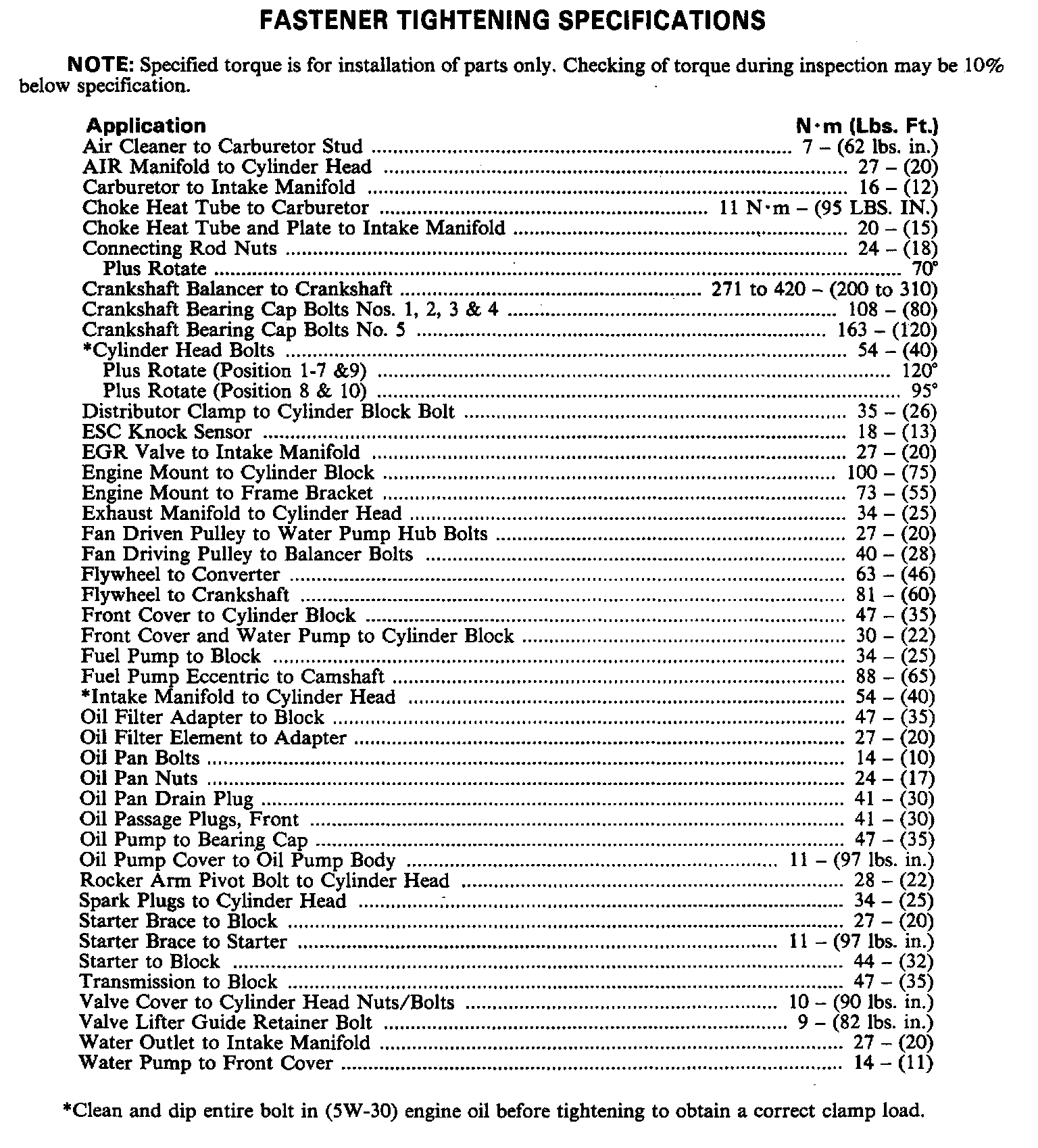

Torque Sequence:

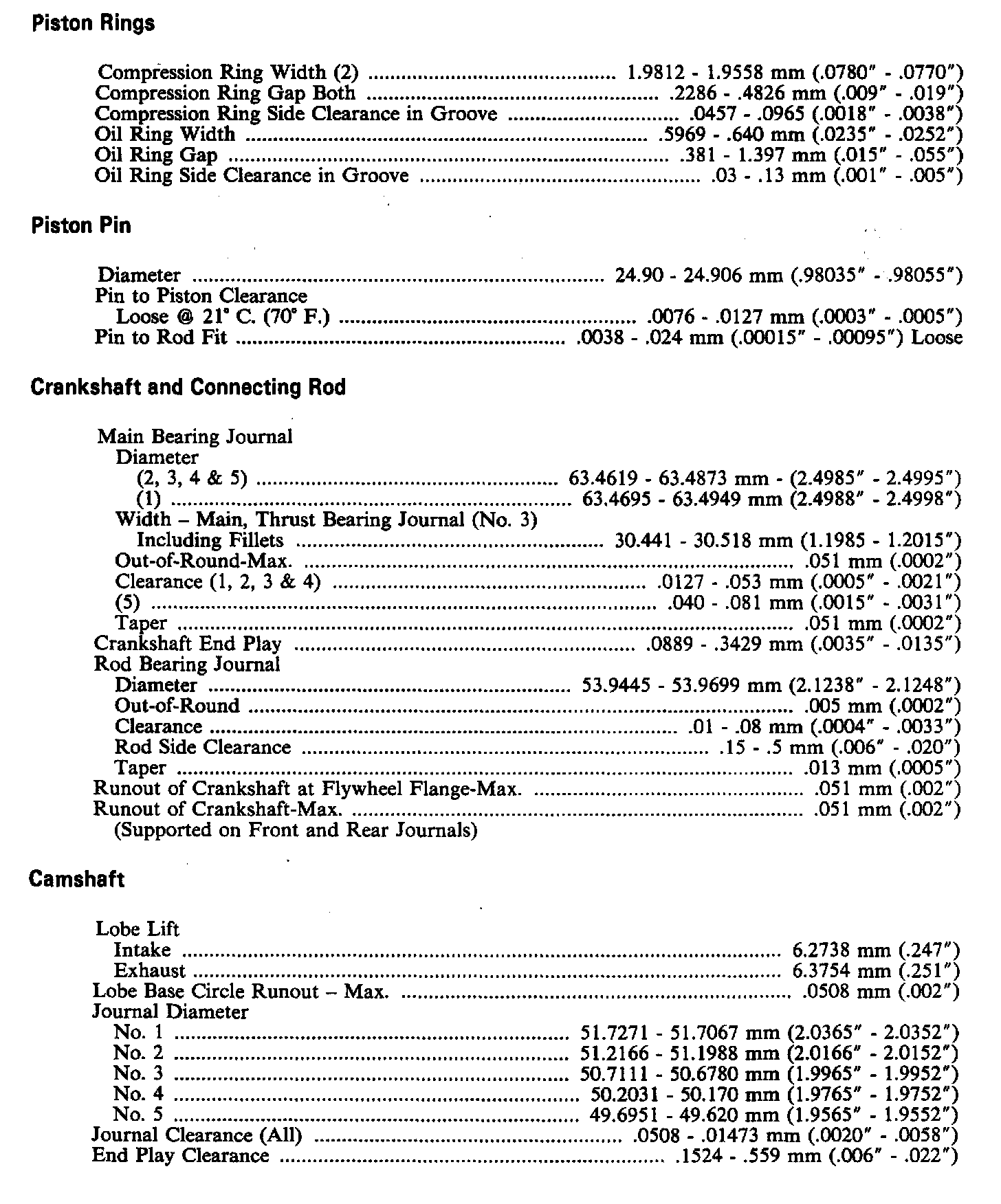

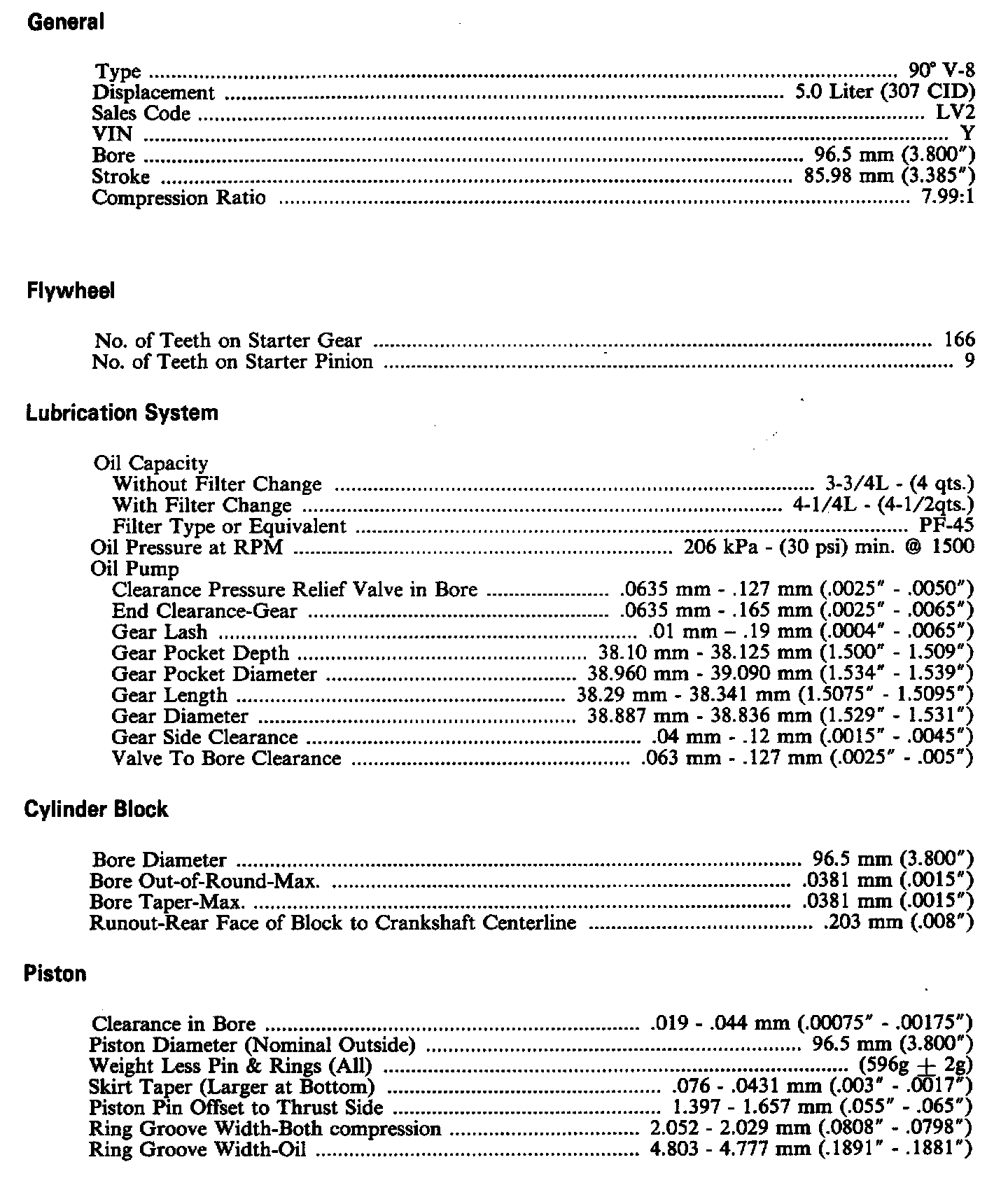

Engine Specifications:





Engine Specifications:

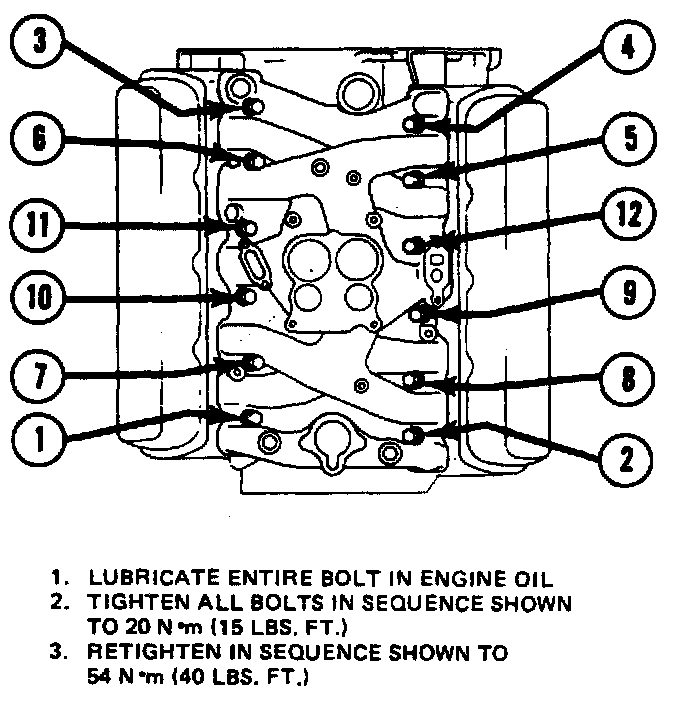

Intake Manifold Torque Sequence:

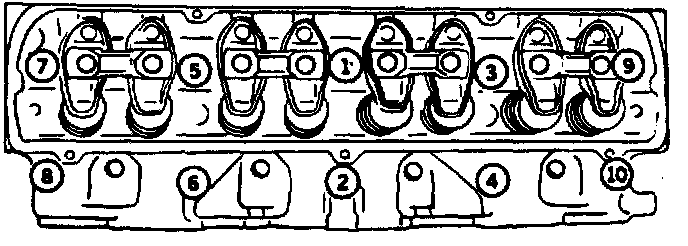

Cylinder Head Torque Sequence:
