System Specifications

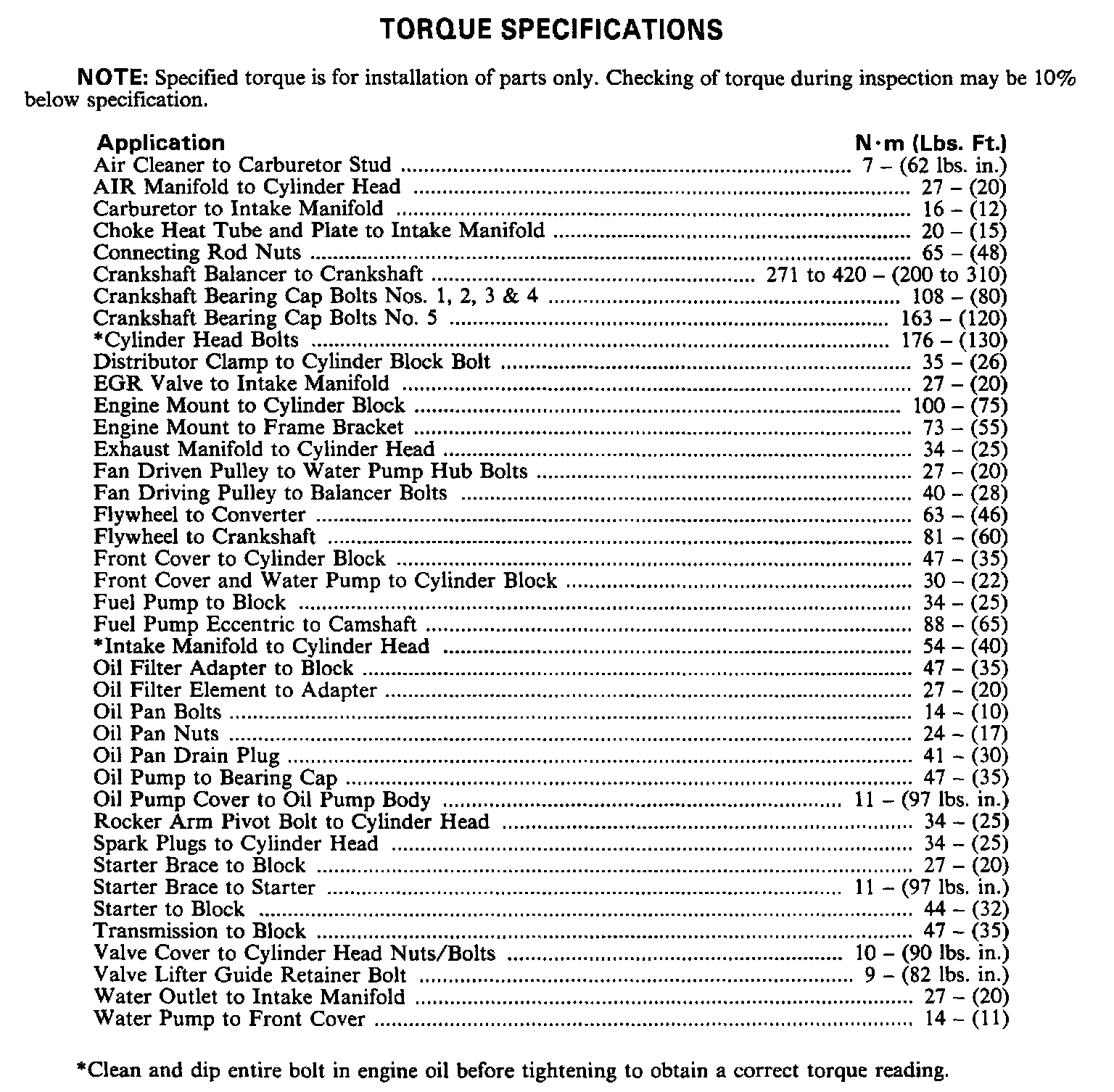

Torque Specifications:

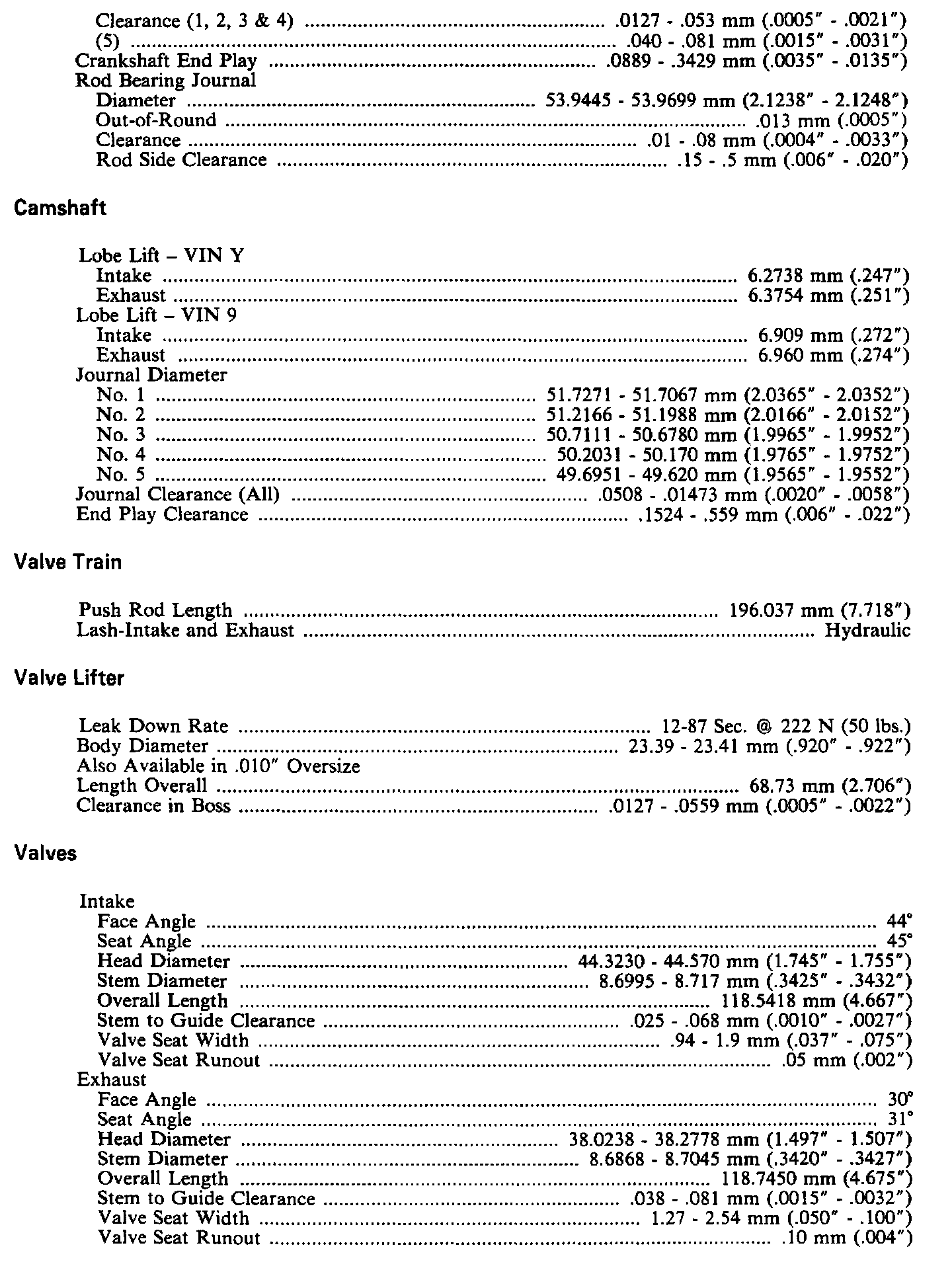

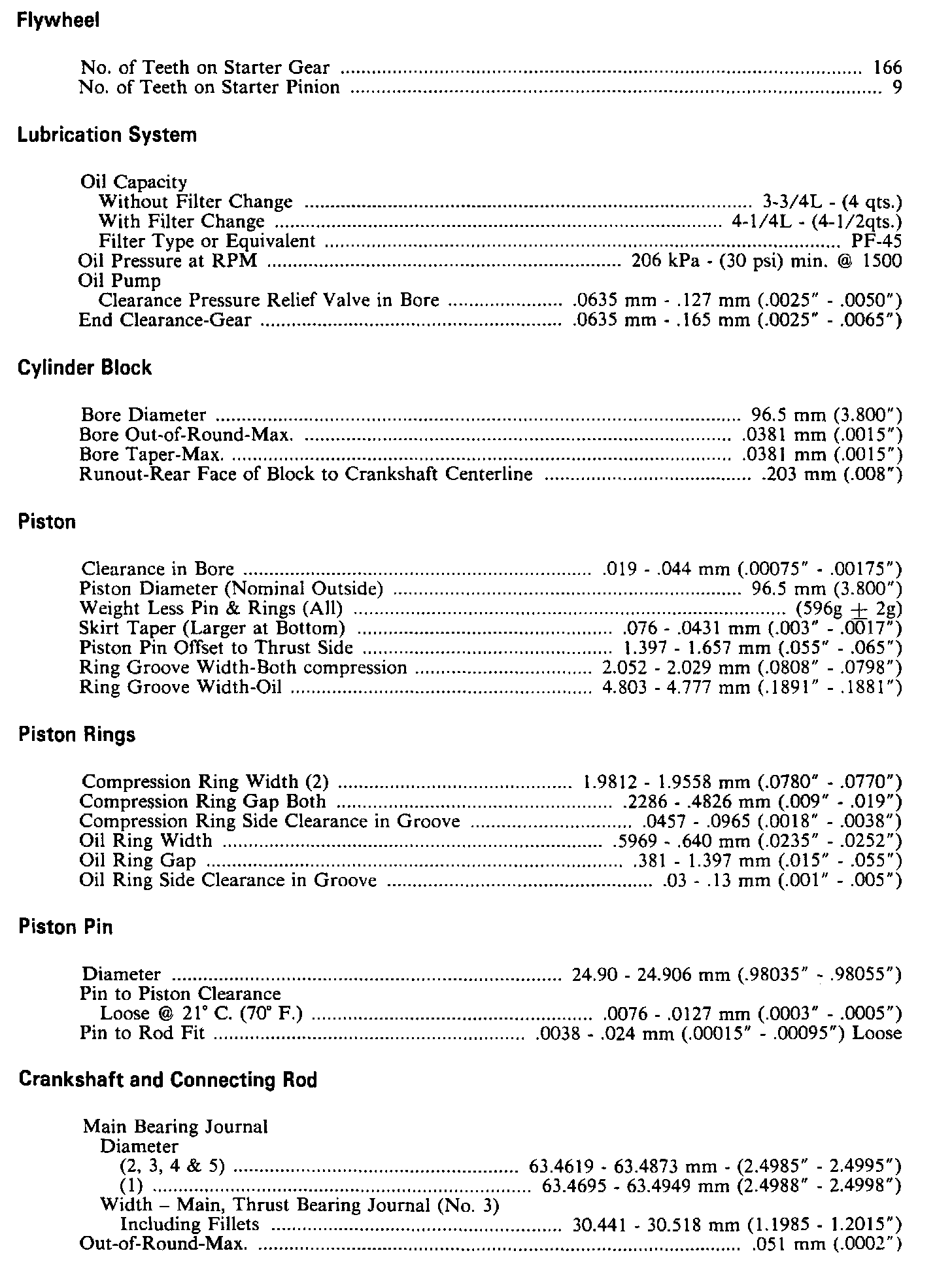

Engine Specifications:




Continued Engine Specifications:




Continued Engine Specifications:




Continued Engine Specifications:

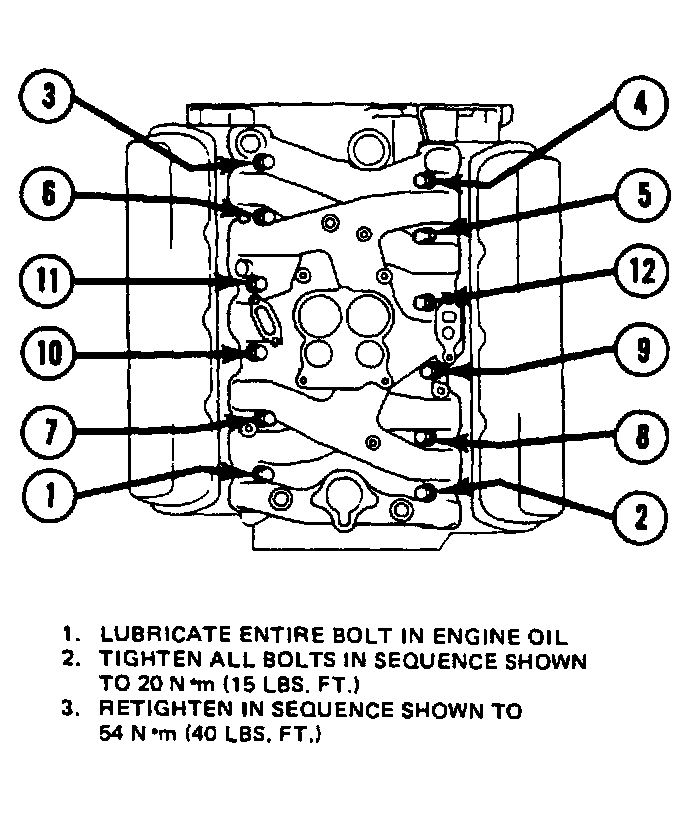

Intake Manifold Sequence:





Cylinder Head Sequence:
