Engine Control Module: Locations

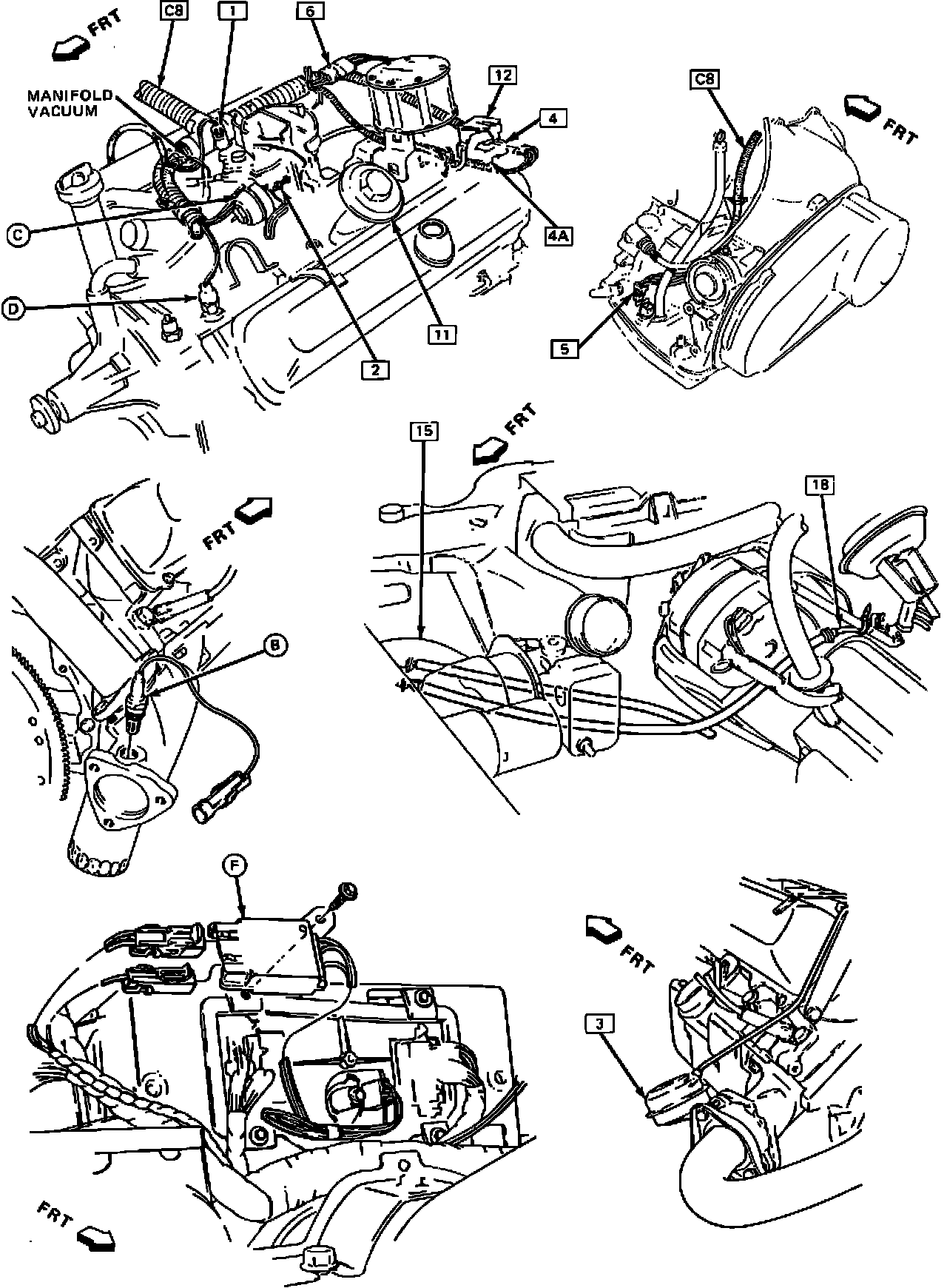

ECM Wiring Harness & Related Components (Part 1 Of 2).:

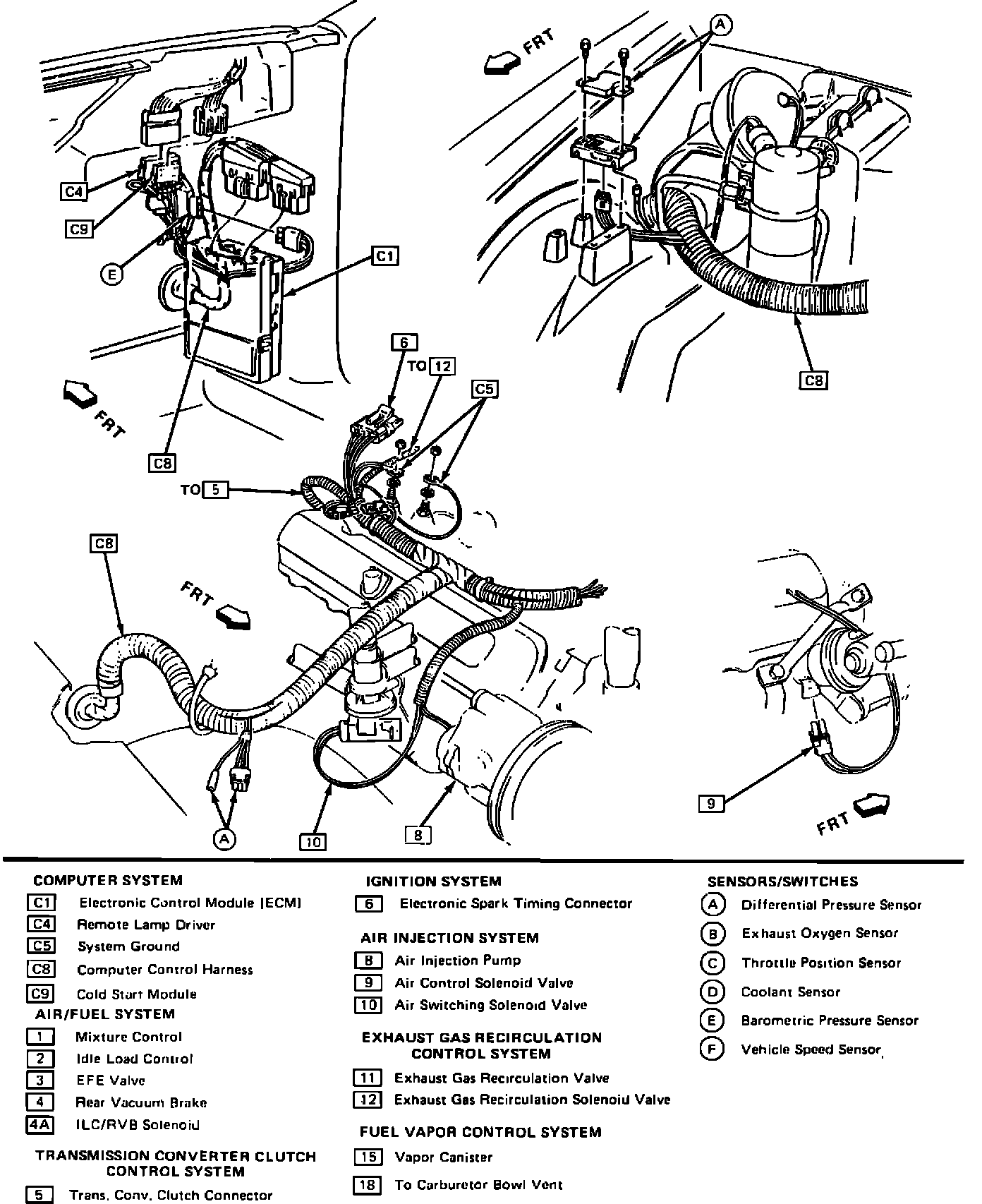

ECM Wiring Harness & Related Components (Part 1 Of 2).:




Behind RH Kick Panel

Applicable to: 1984 Riviera & Toronado w/5.0L Engine
