Cooling Fan Control Module

COMPONENT PARTS

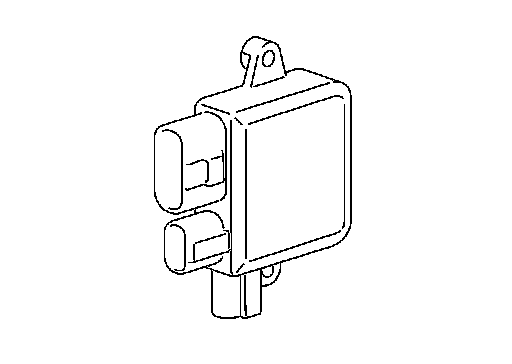

Cooling Fan Control Module






The cooling fan control module is mounted on the cooling fan and drives the cooling fan motor.
The cooling fan control module conducts communication between
VCM via the PWM communication. The cooling fan control module drives the cooling fan motor so that the cooling fan speed is controlled in accordance with the control signal from VCM.
