Air Flow Meter/Sensor: Locations

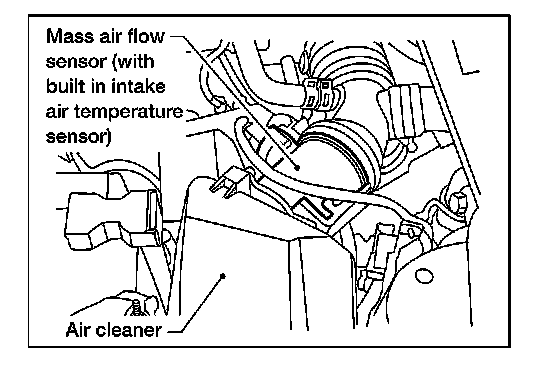

Air Cleaner / Mass Air Flow Sensor (With Built In Intake Air Temperature Sensor):

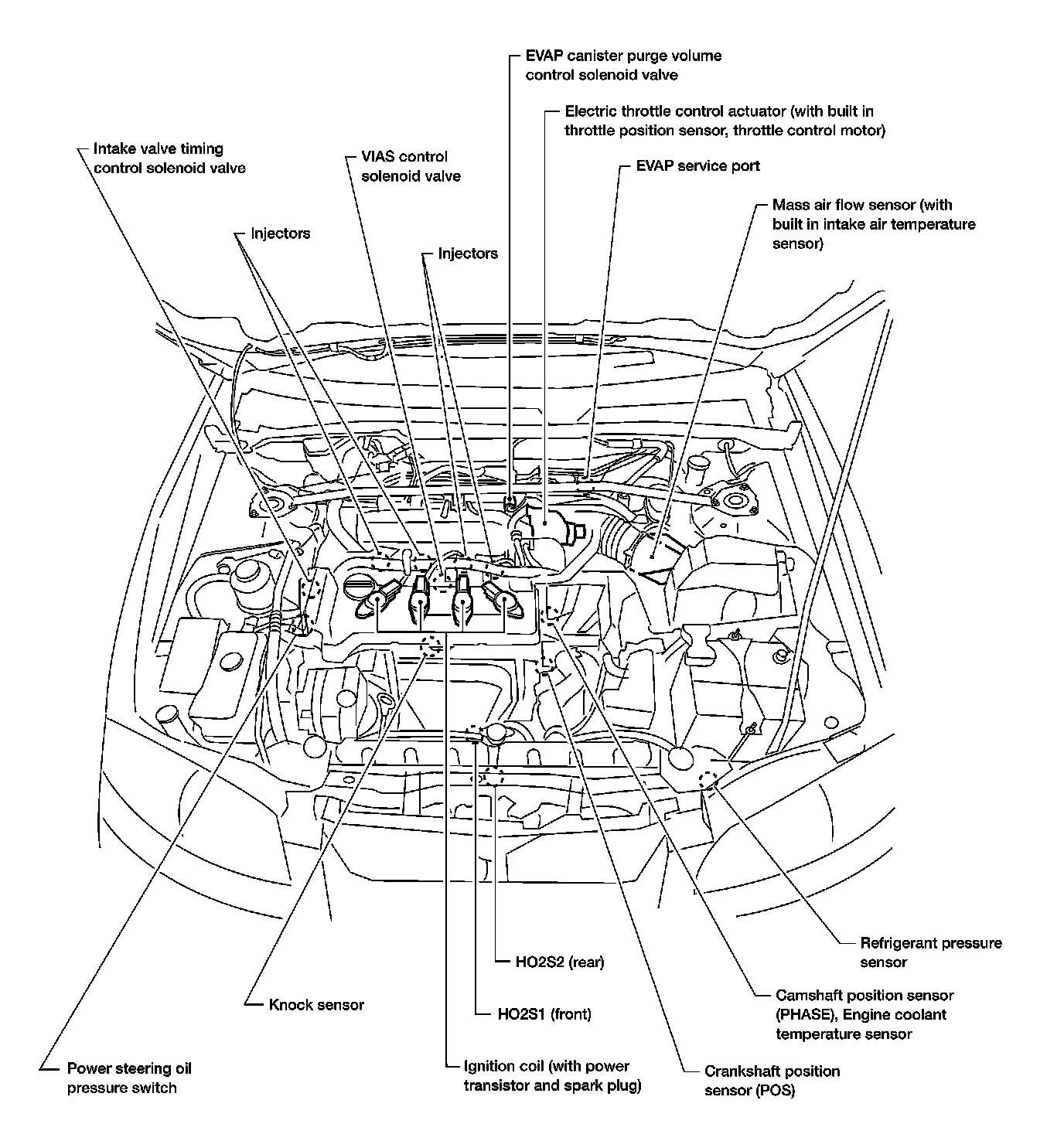

Engine Control Component Parts Location Part 1:
