Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Charging System
>>
Alternator
Alternator

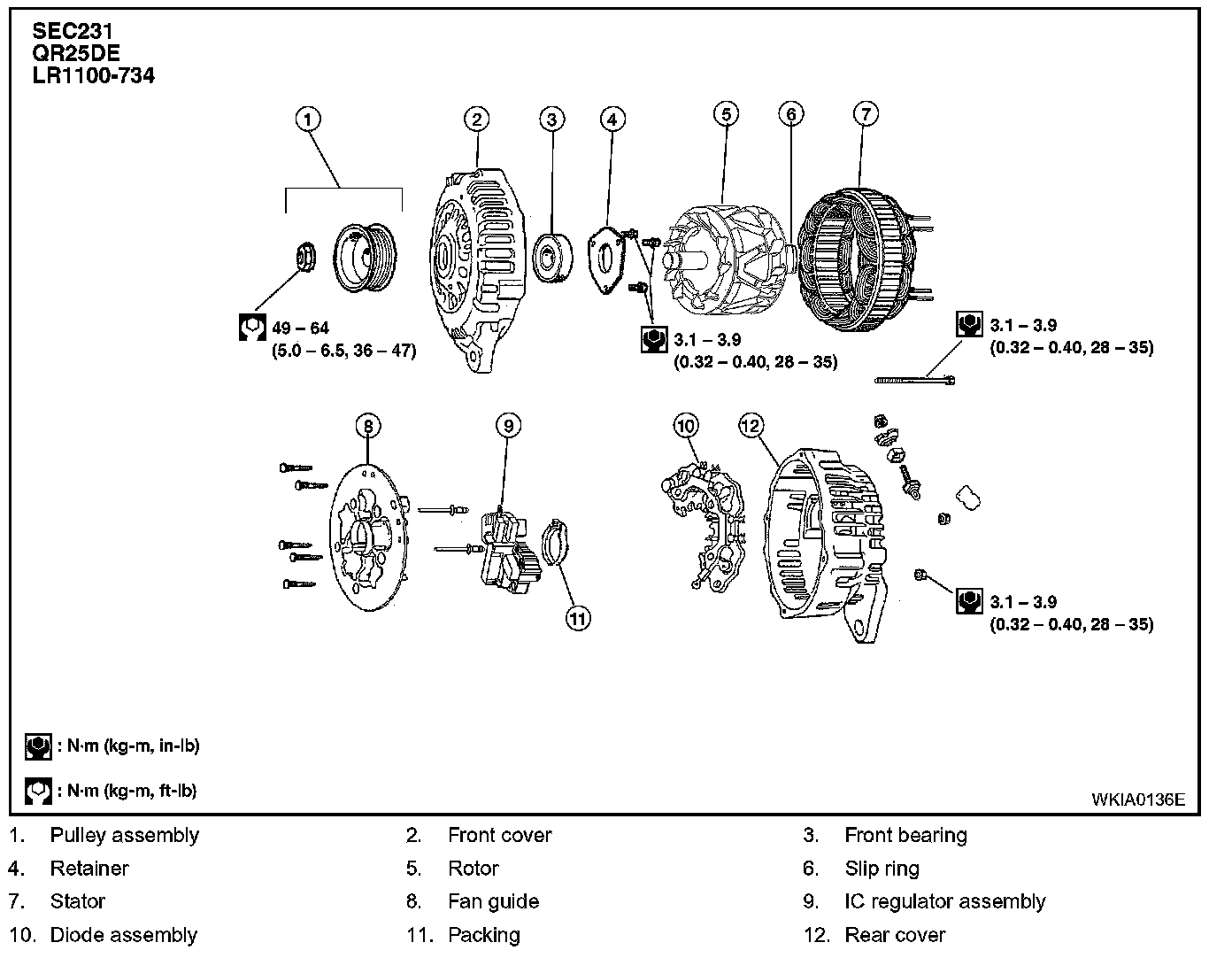

Charging System - Construction:
