Home >> Mitsubishi >> 2008 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations >> Connector Locations

Connector Locations

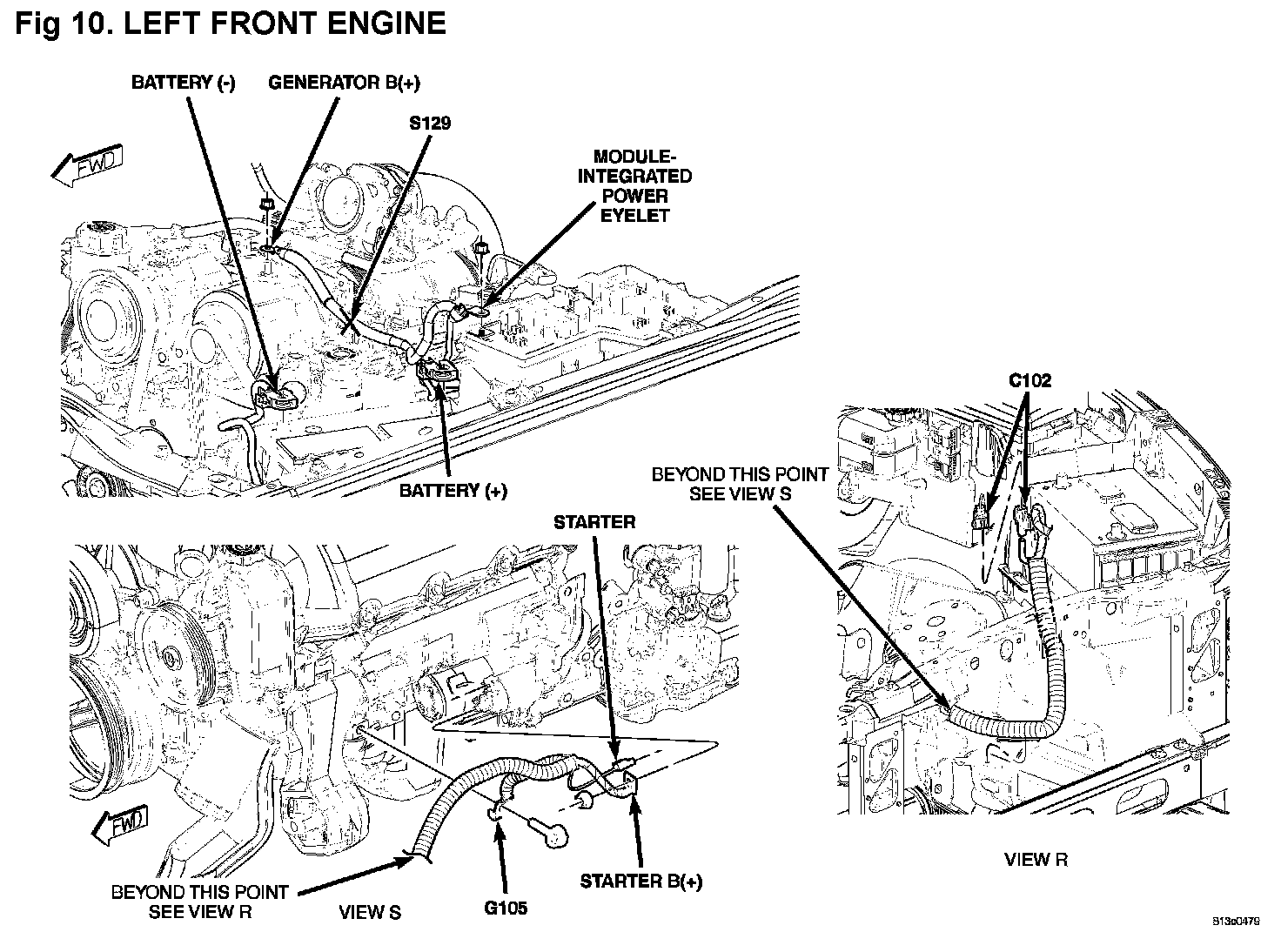

Fig 10. Left Front Engine:

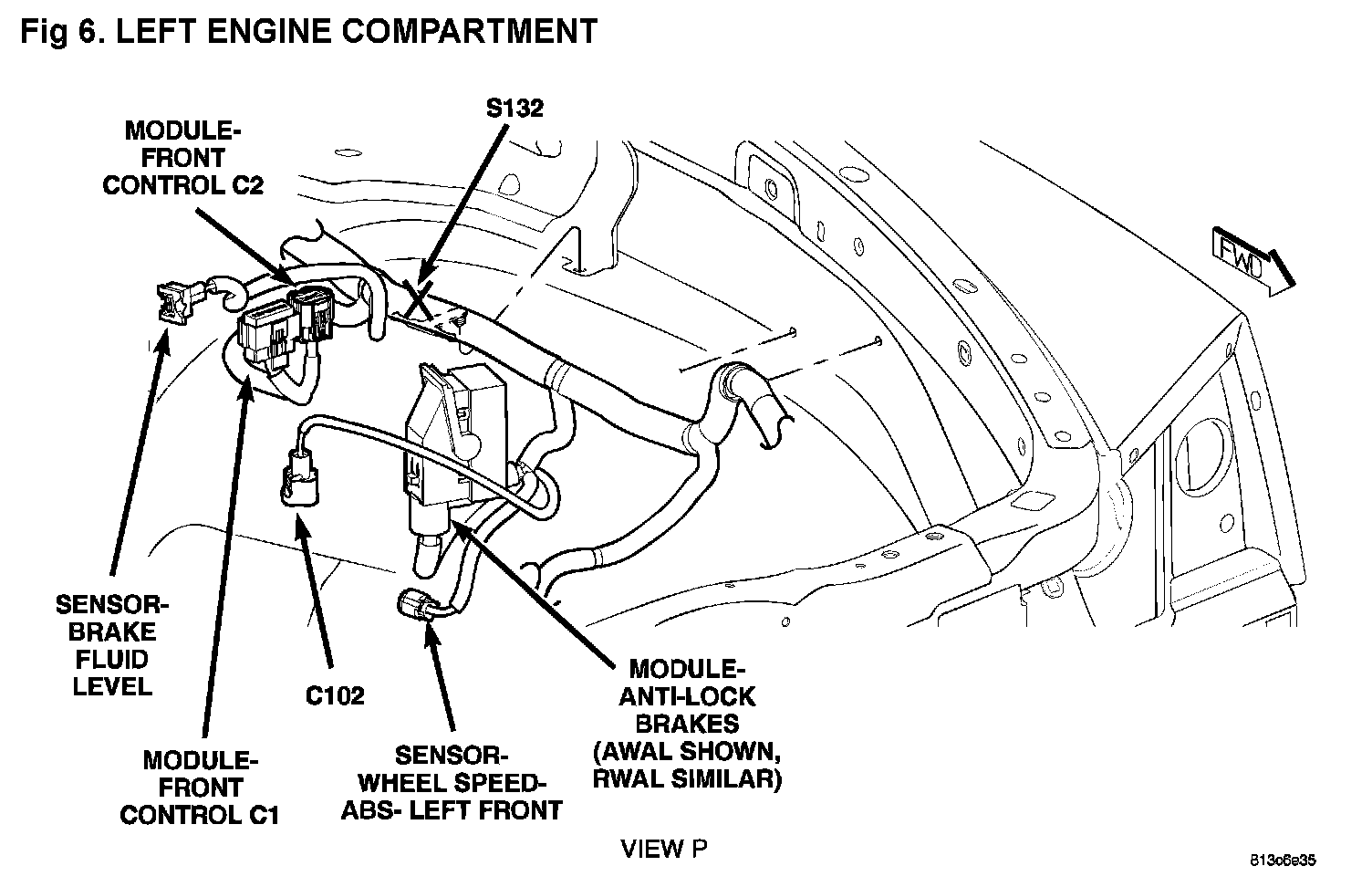

Fig 6. Left Engine Compartment:

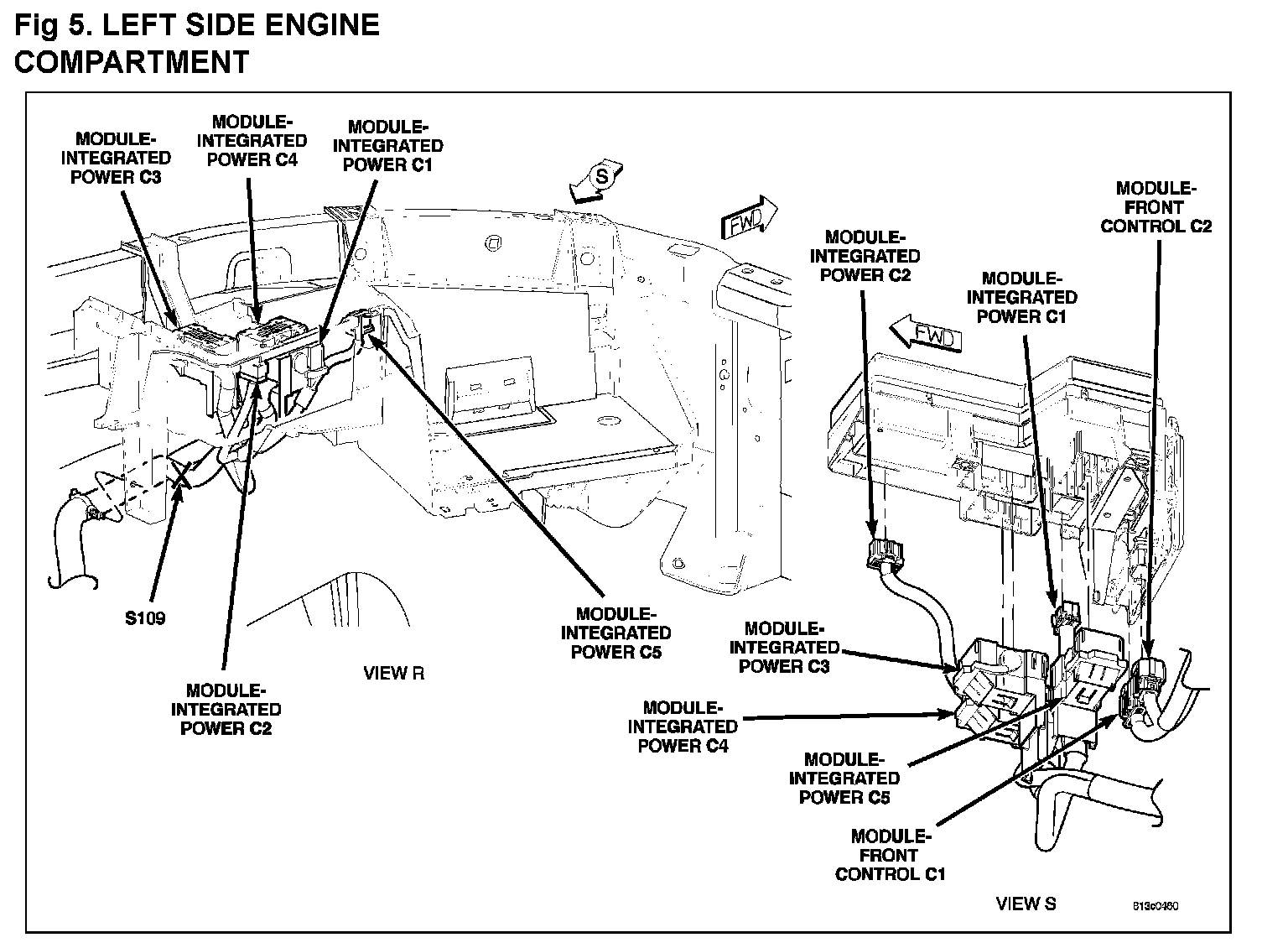

Fig. 5 Left Side Engine Compartment:
