lemon-mirror
:
Home
>>
Mitsubishi
>>
2008
>>
Raider 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
Keyless Entry Module

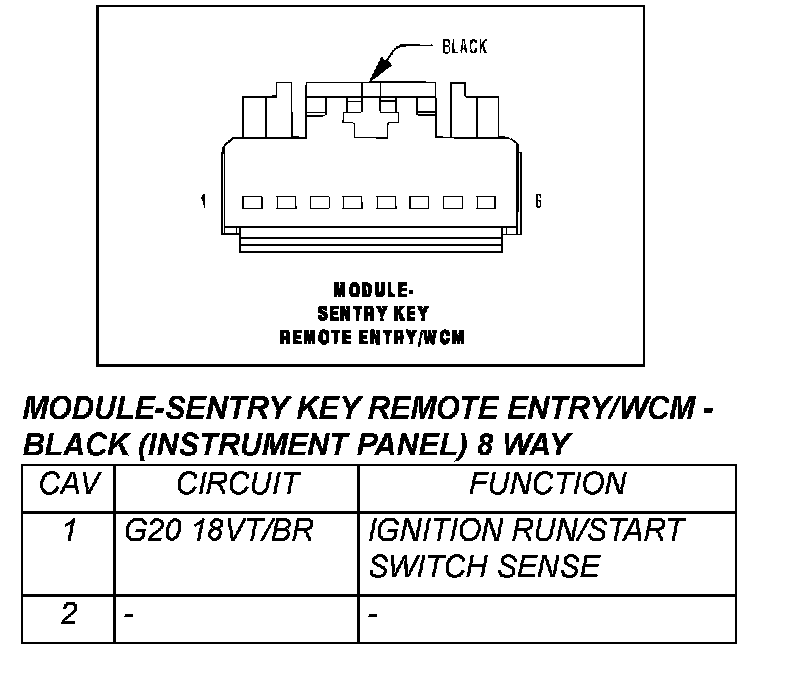

Module - Sentry Key Remote Entry/WCM - Black (Instrument Panel) 8 Way (Part 1):

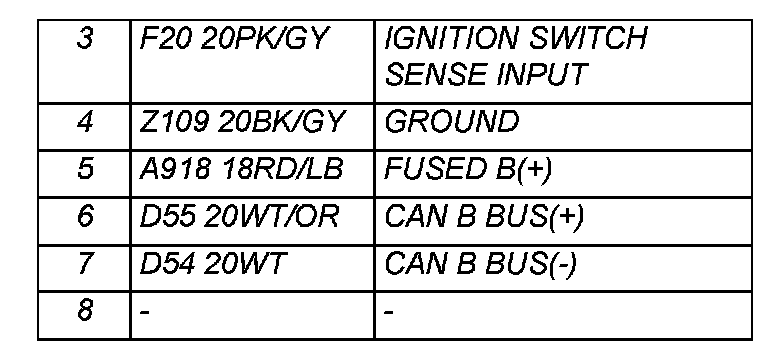

Module - Sentry Key Remote Entry/WCM - Black (Instrument Panel) 8 Way (Part 2):
