Home >> Mitsubishi >> 2004 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Mount

Engine Mount




Part 1 Of 2:




Part 2 Of 2:

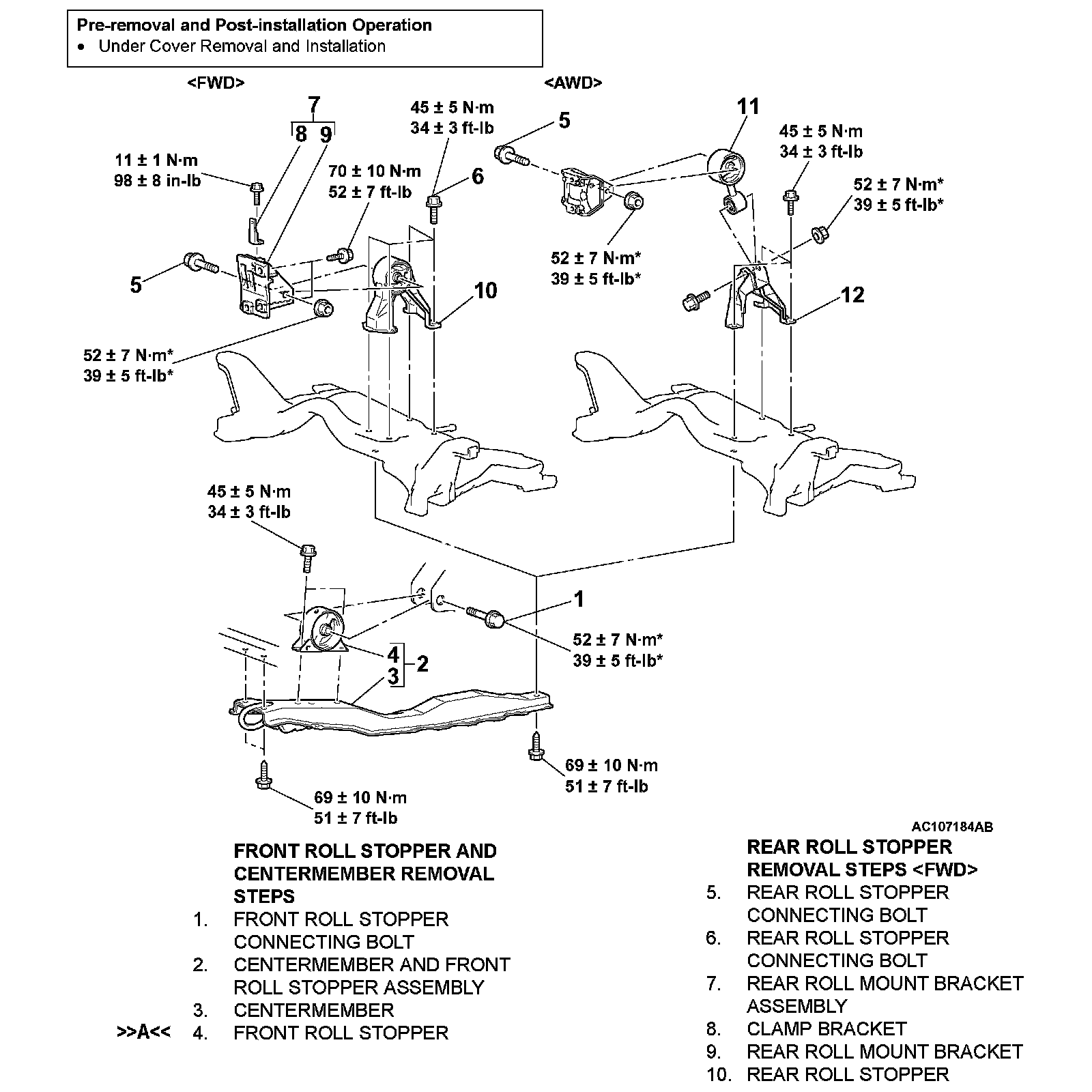

ENGINE ROLL STOPPER AND CENTERMEMBER REPLACEMENT W/ RELATED COMPONENTS
