Home >> Mitsubishi >> 2004 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Assembly

Assembly

Part 1 Of 2:

Part 2 Of 2:

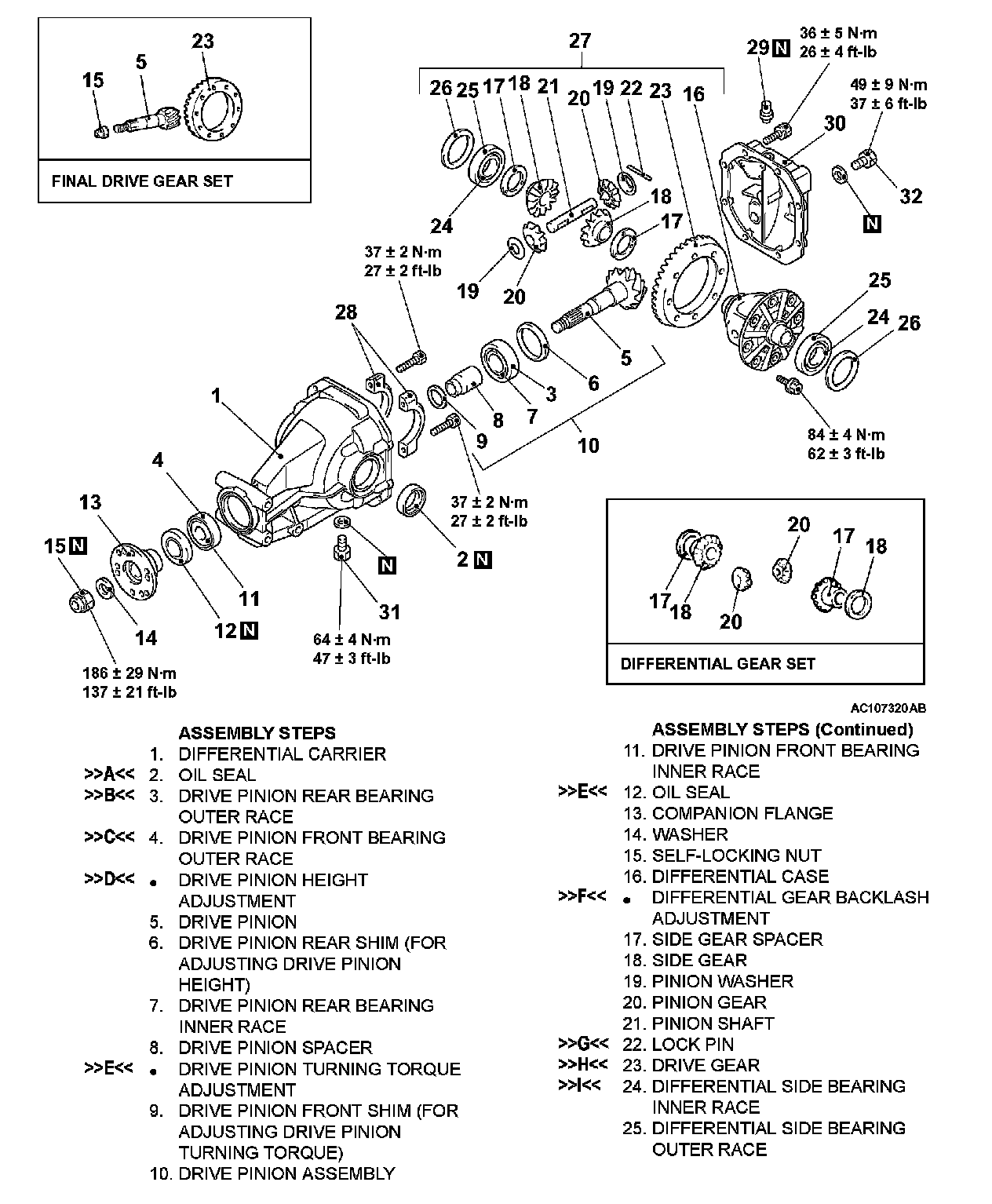

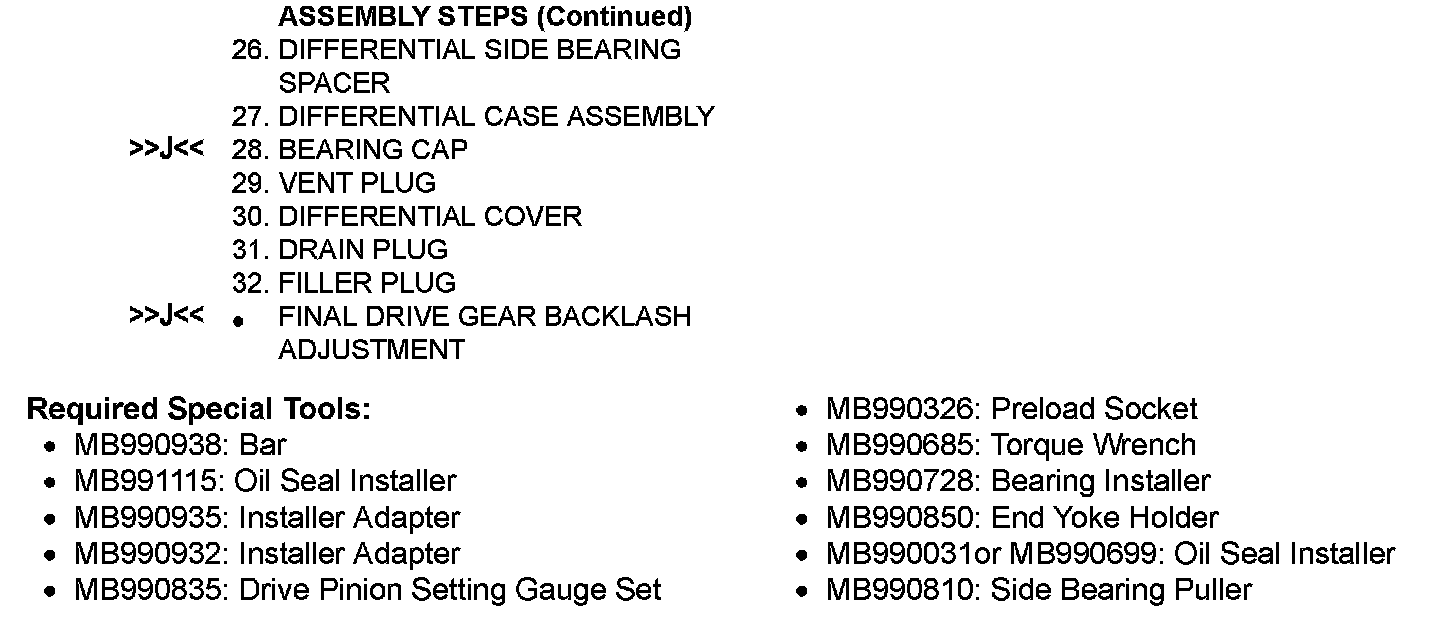

DIFFERENTIAL CARRIER ASSEMBLY W/ RELATED COMPONENTS
