Home >> Mitsubishi >> 2004 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Testing and Inspection

Cruise Control Module: Testing and Inspection

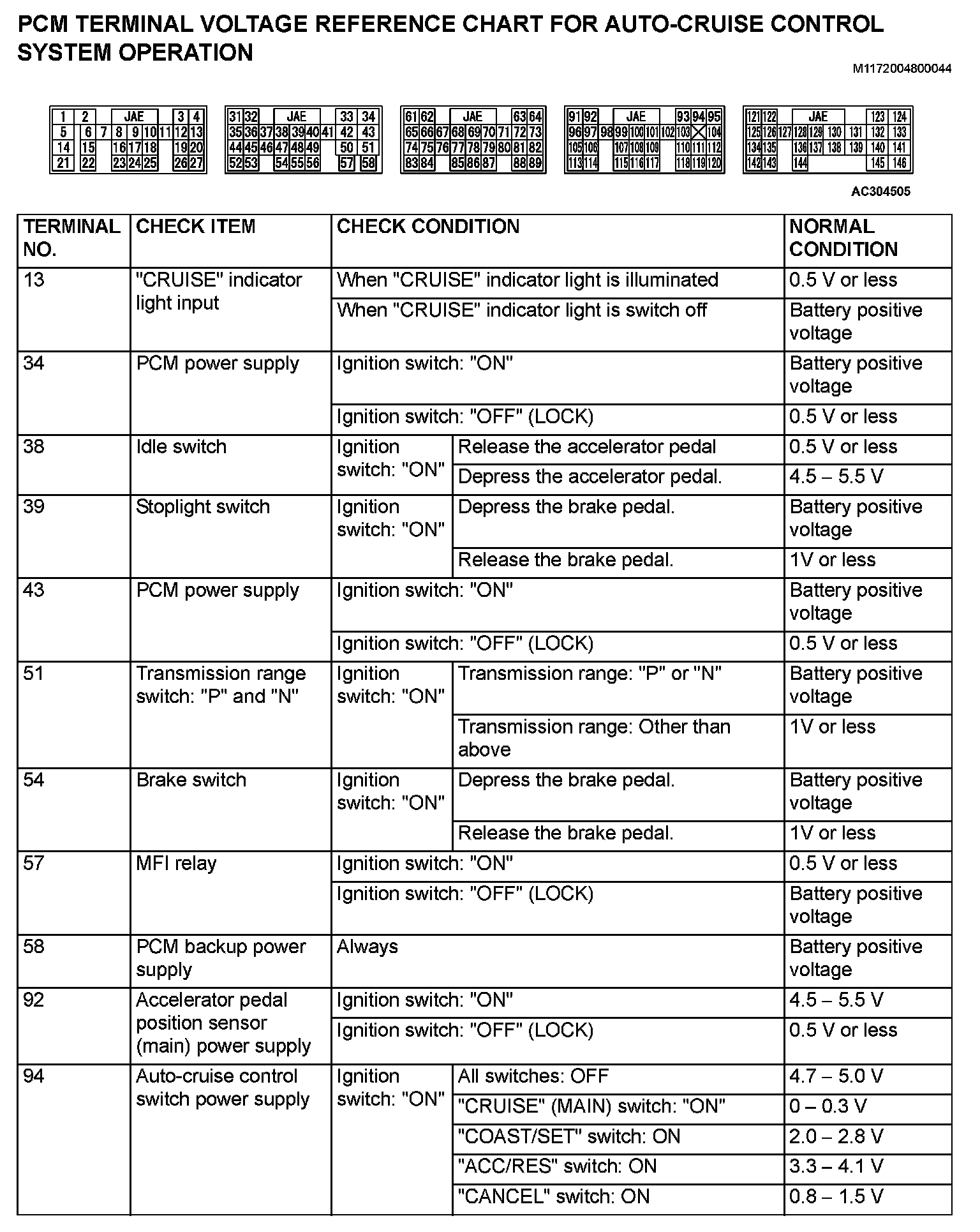

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation Part 1:

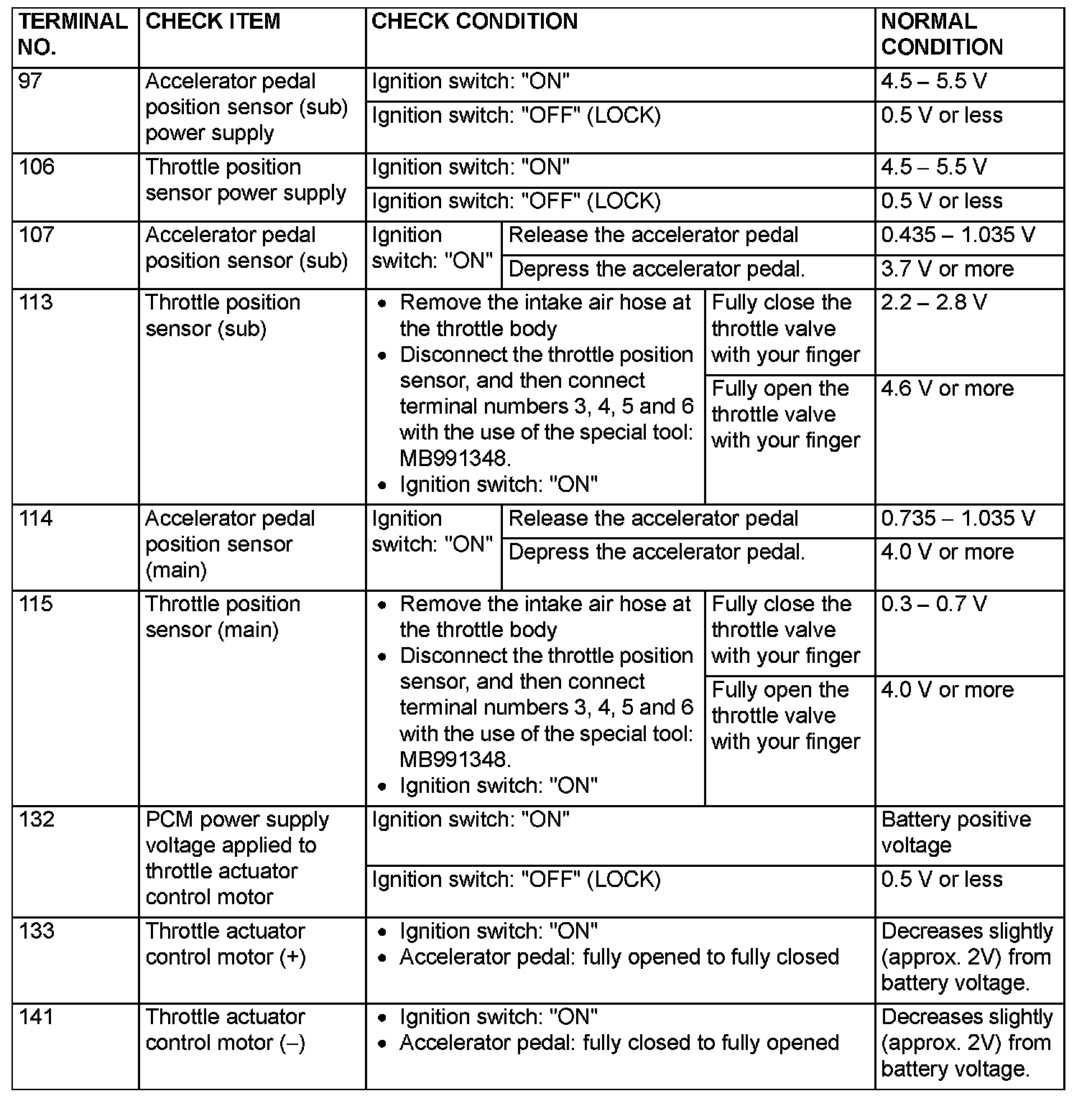

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation Part 2:
