Home >> Mitsubishi >> 2004 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Belt

Timing Belt

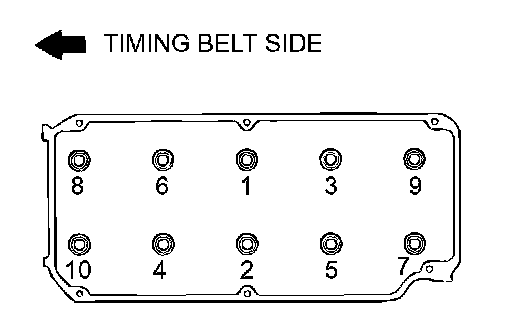

Cylinder Head Tightening Sequence:

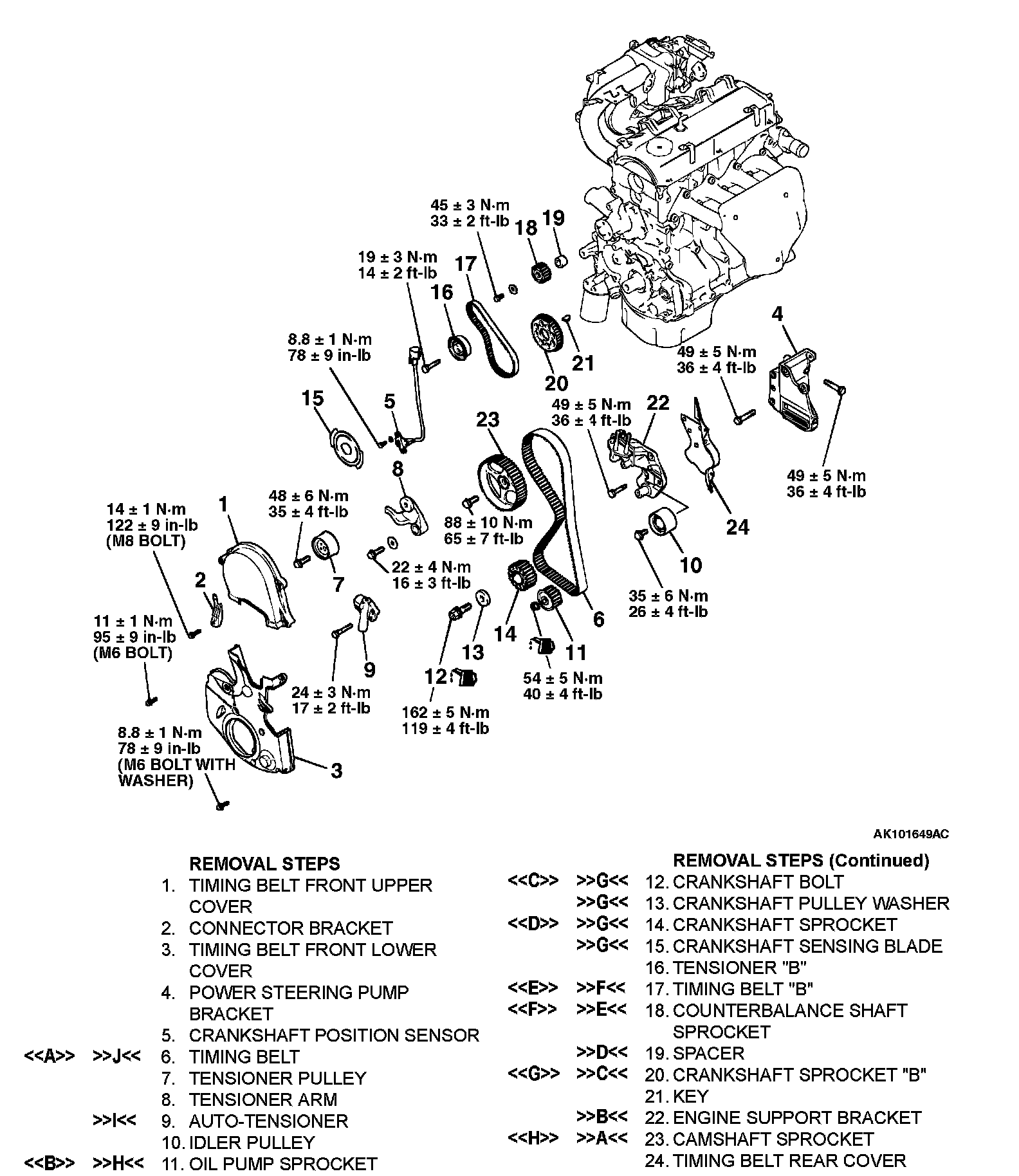

Timing Belt

Part 1 Of 2:

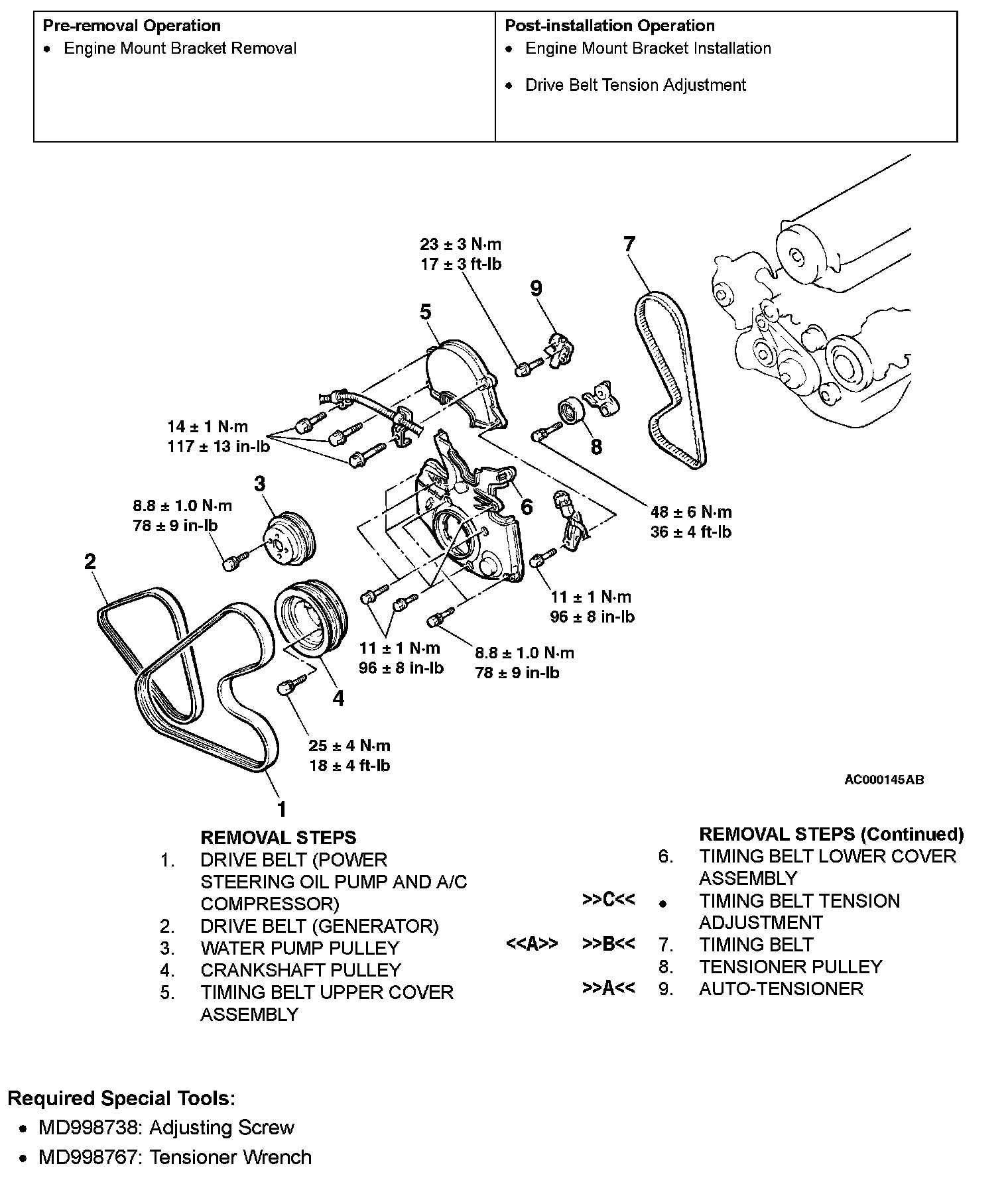

Timing Belt B
