Home >> Mitsubishi >> 2004 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List Reference Table

Data List Reference Table

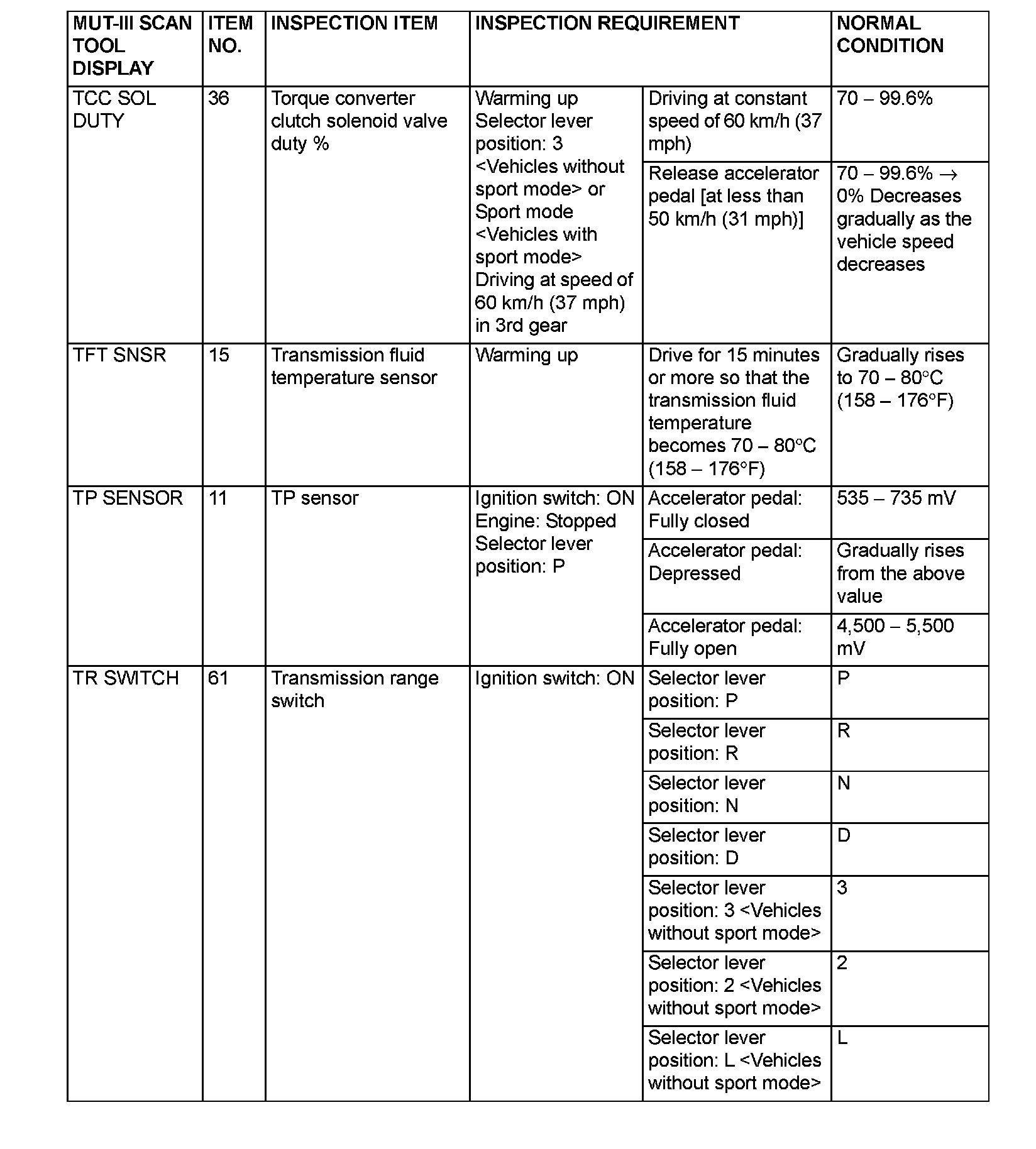

Part 1 Of 7:

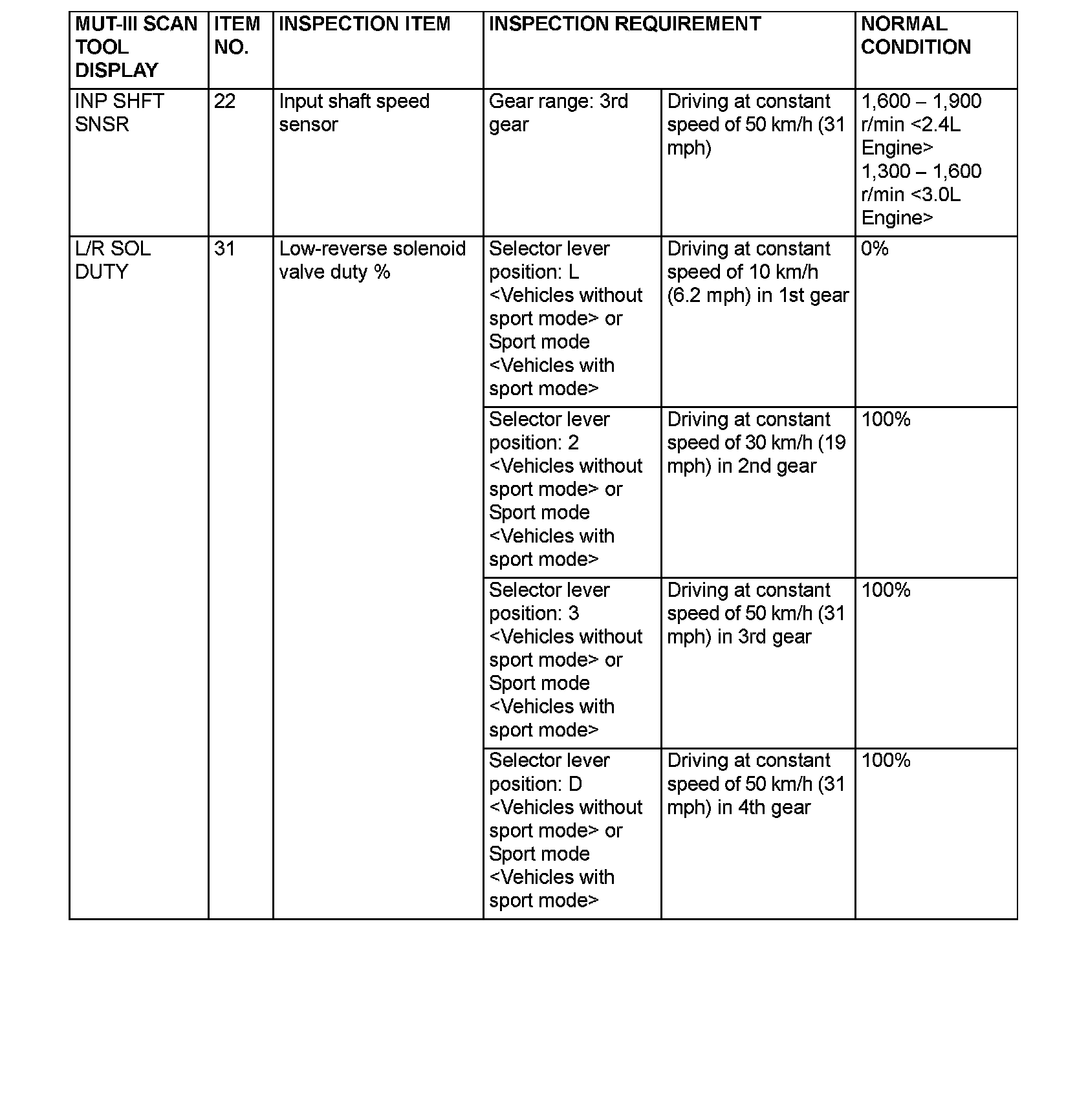

Part 2 Of 7:

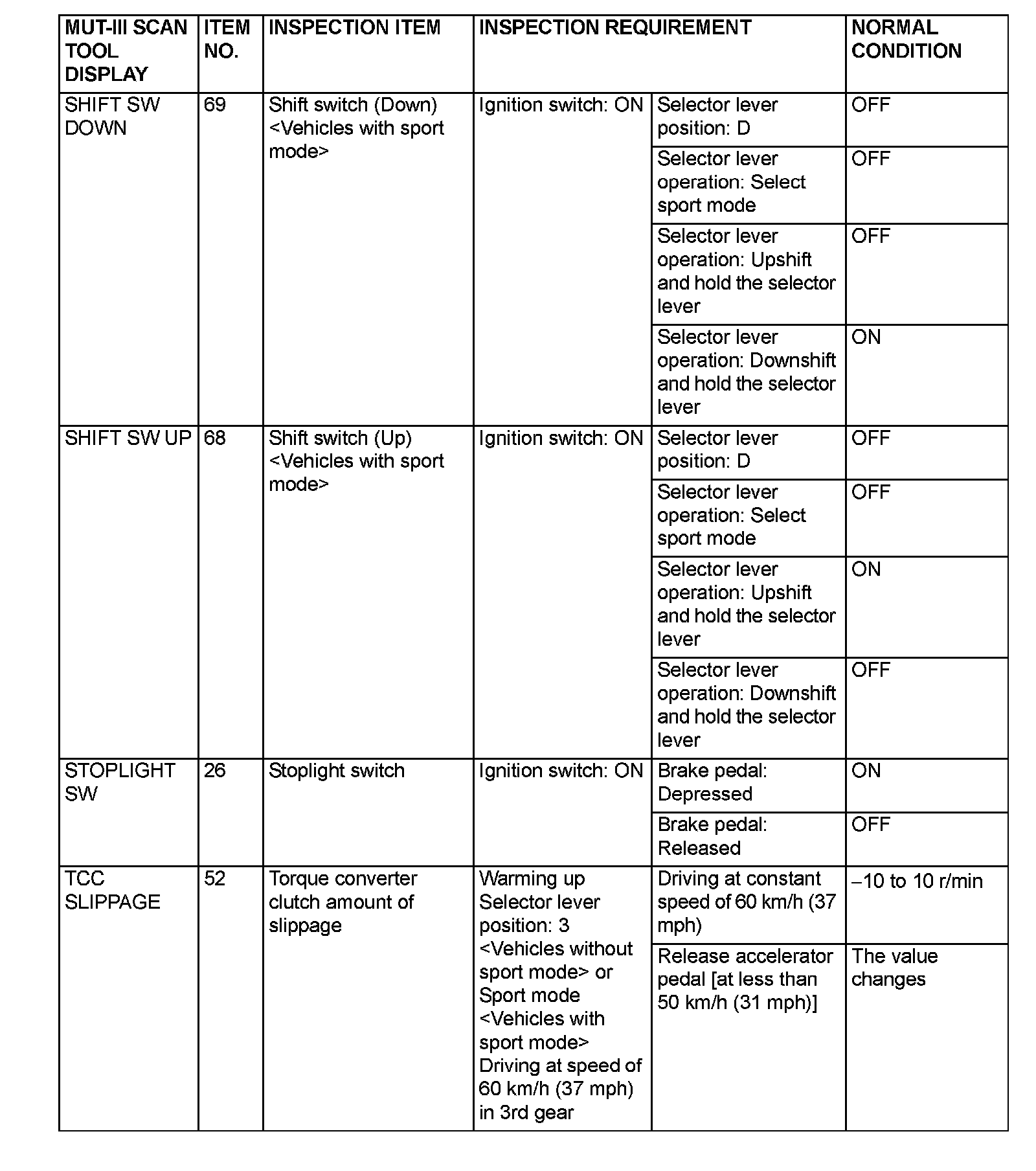

Part 3 Of 7:

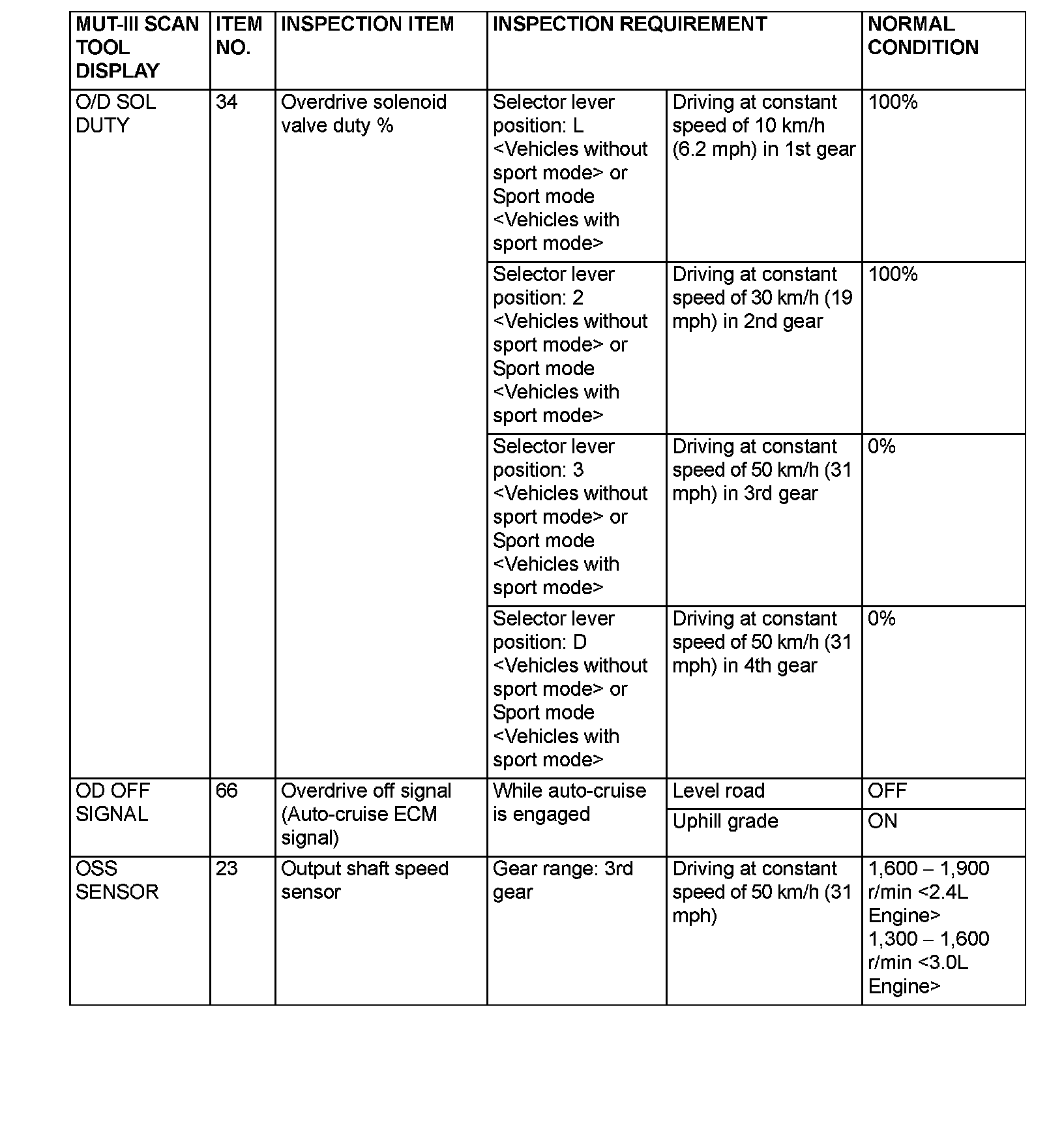

Part 4 Of 7:

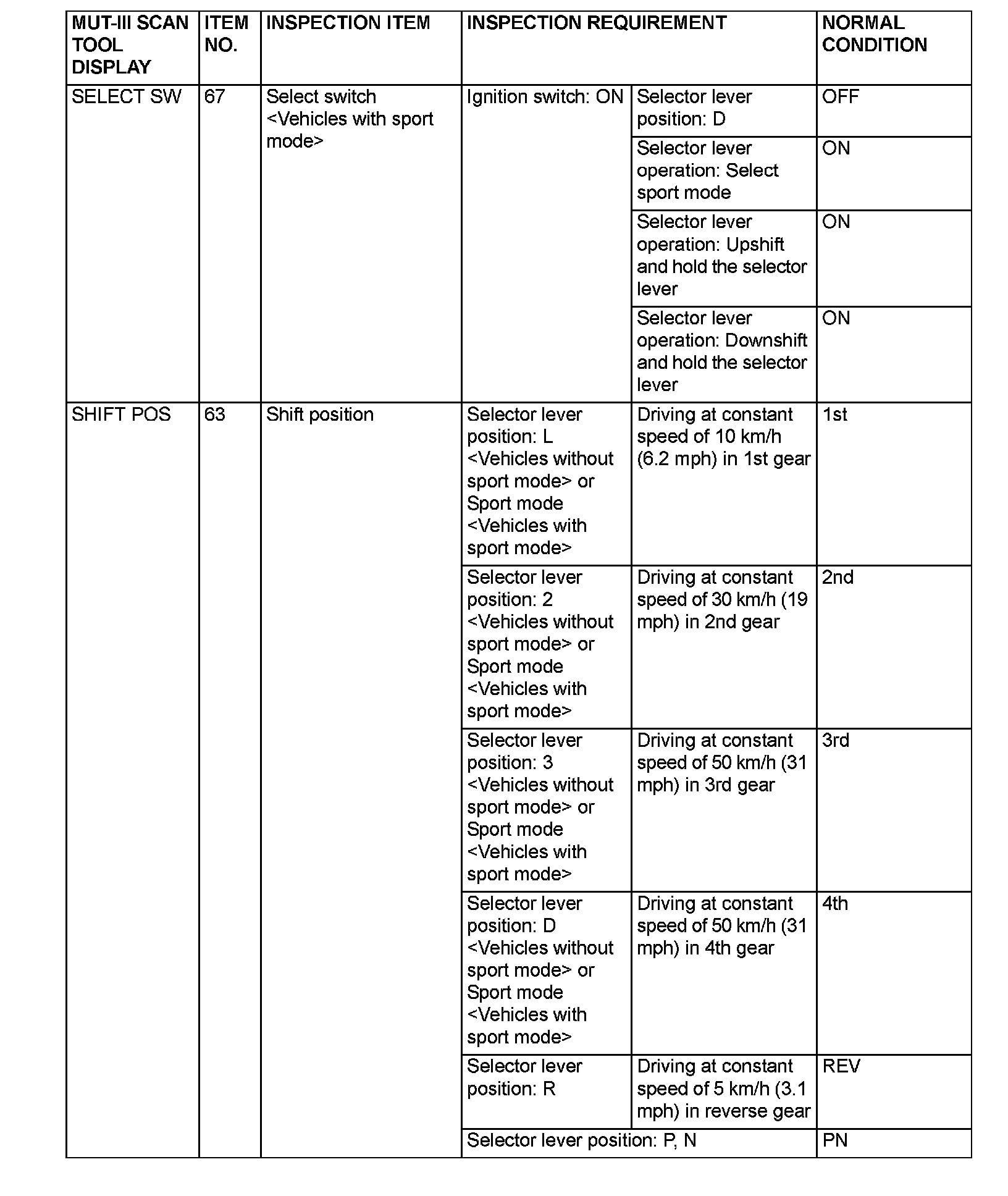

Part 5 Of 7:

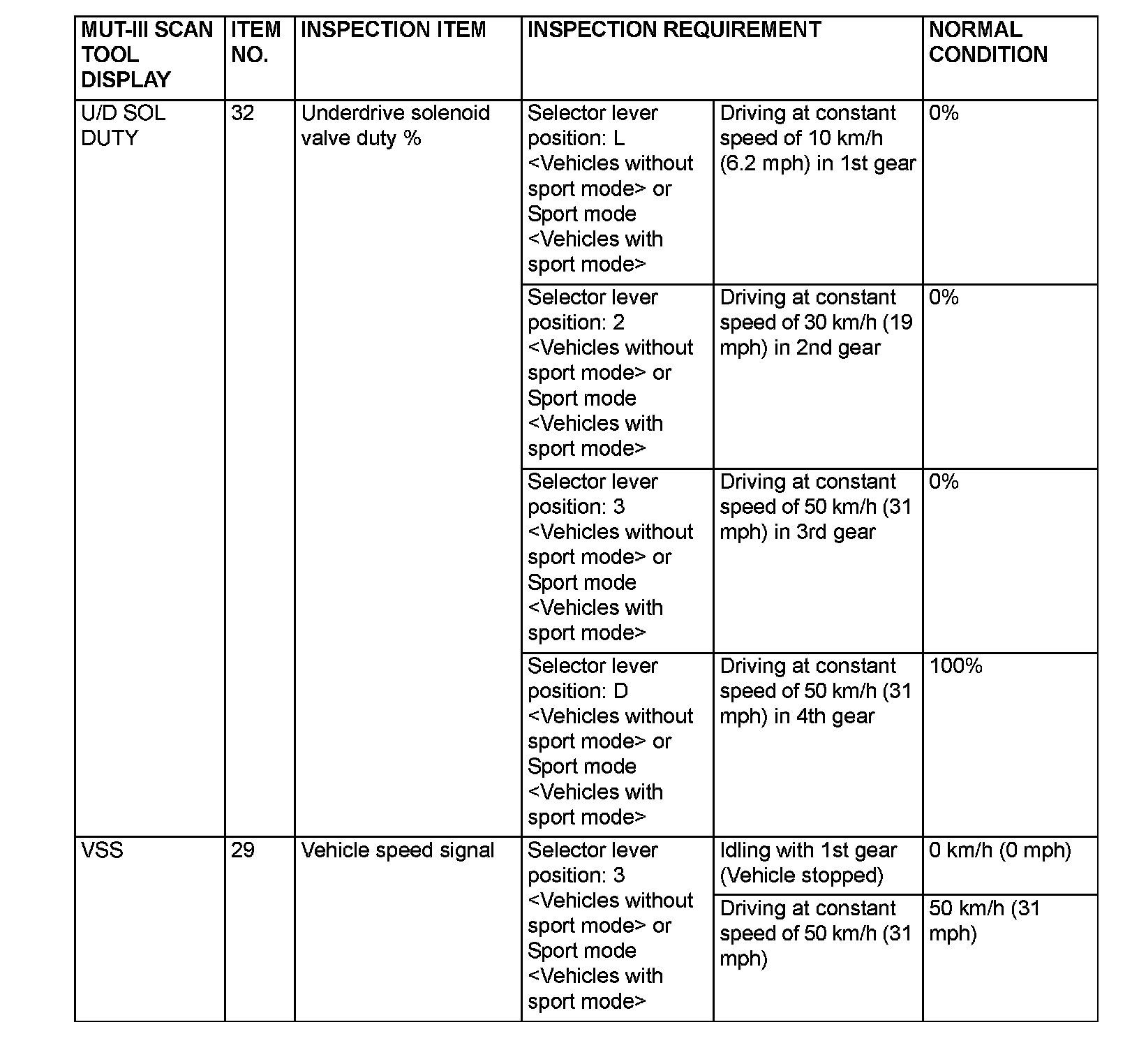

Part 6 Of 7:

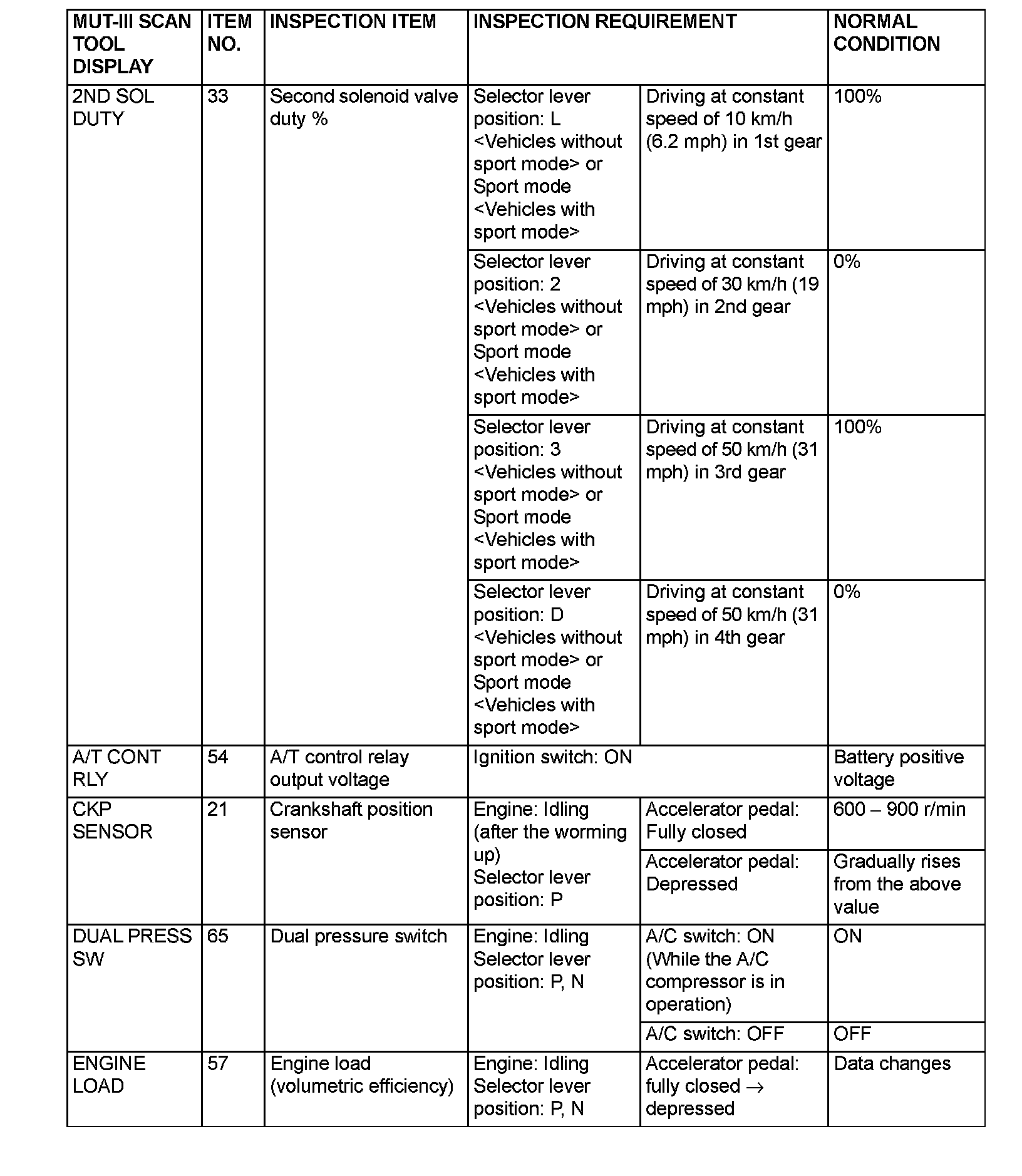

Part 7 Of 7:





DATA LIST REFERENCE TABLE
