Home >> Mitsubishi >> 2003 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

Part 1 Of 2:

Part 2 Of 2:

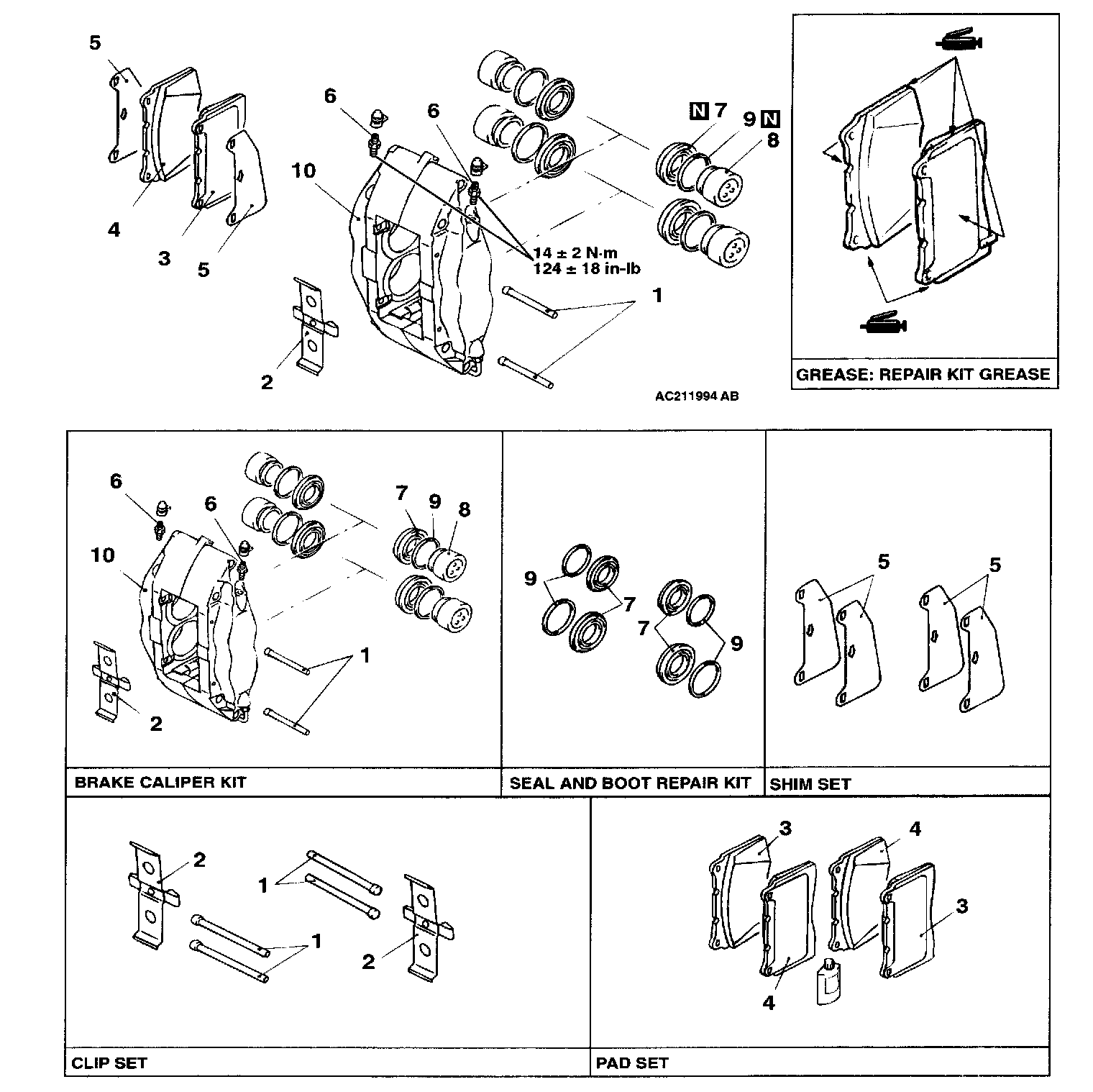

FRONT DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
