Disc Brake System
>>
Rear
Rear

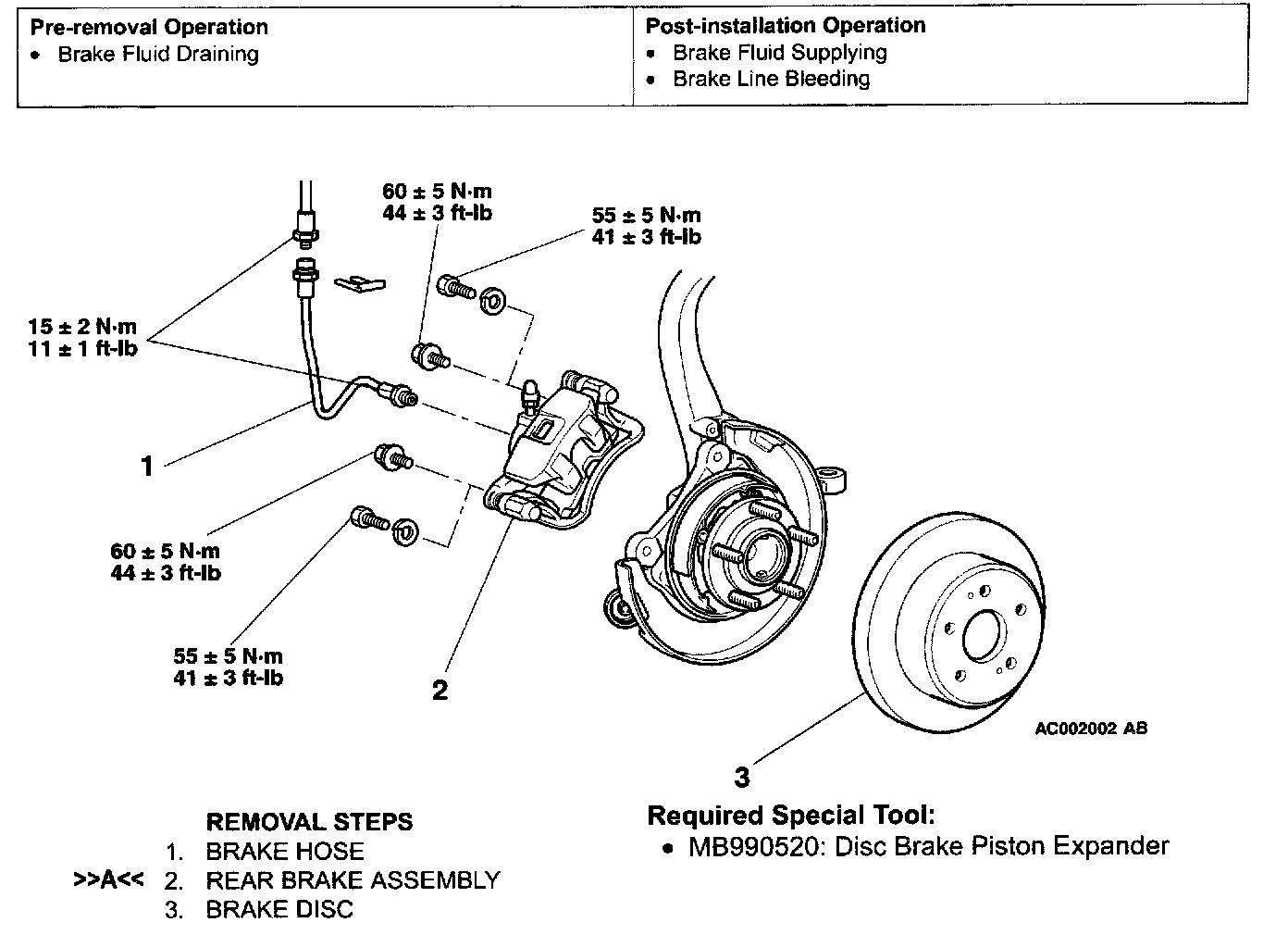

REAR DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

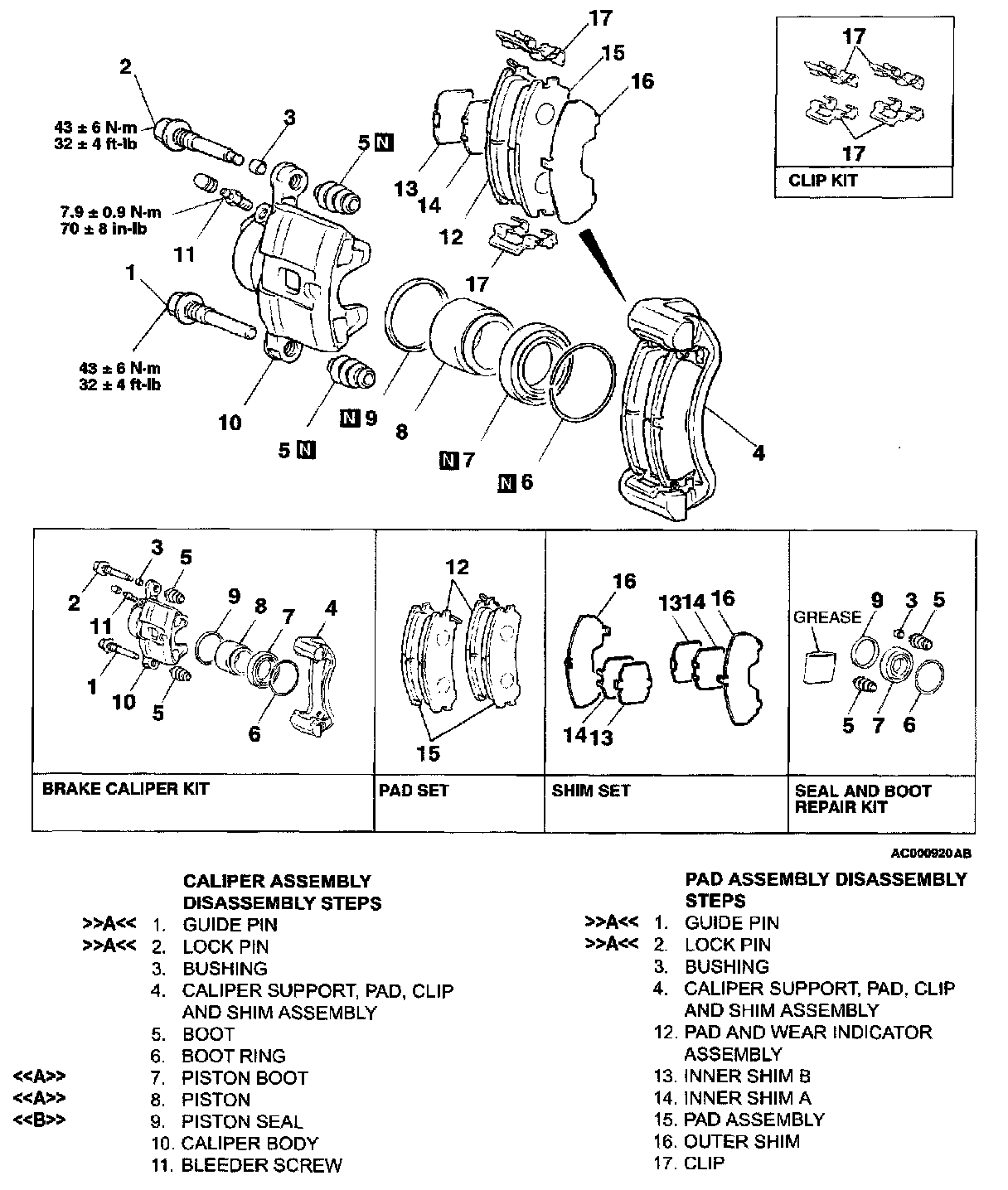

REAR DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
