Disc Brake System
>>
Front
Front

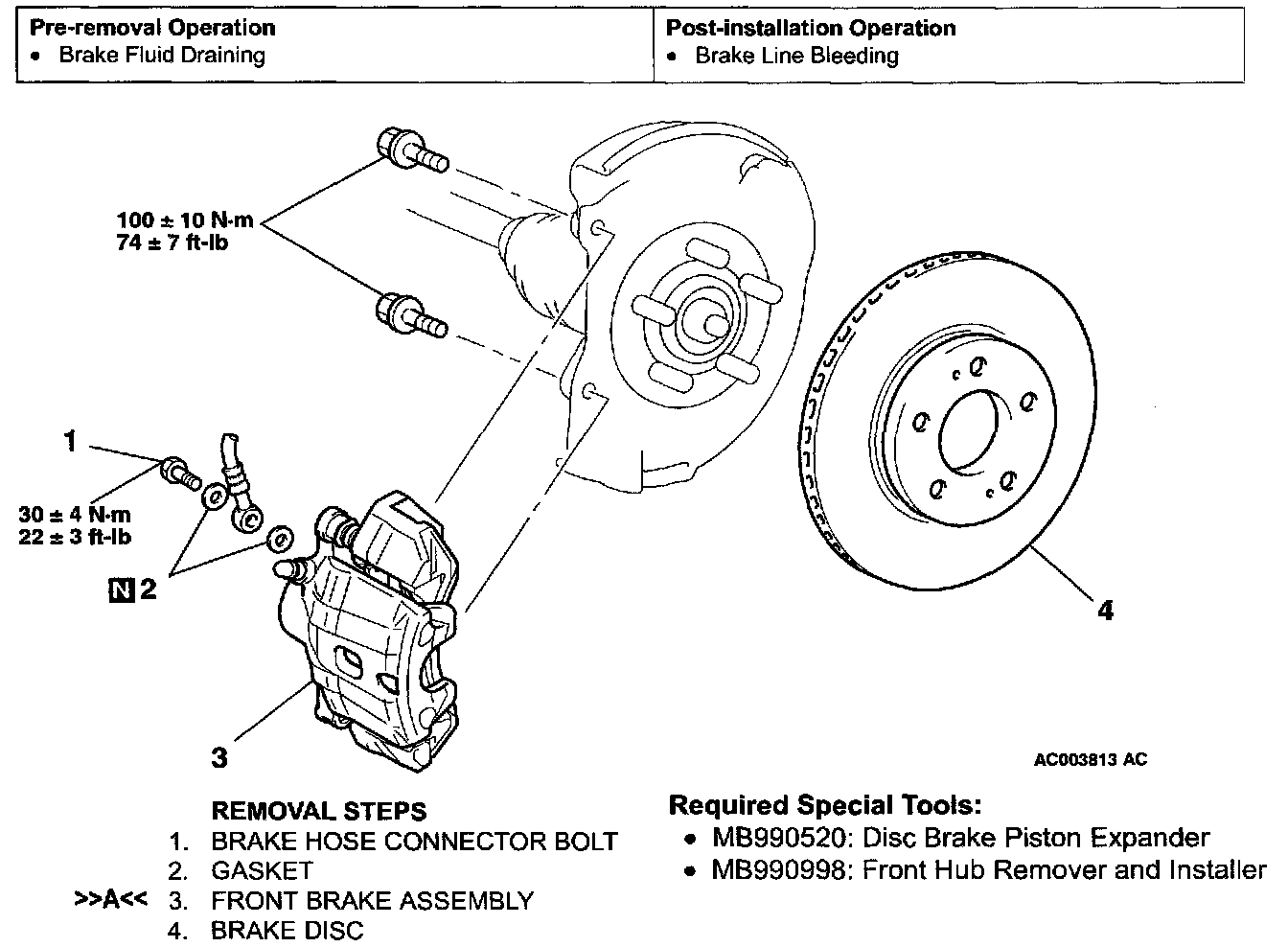

FRONT DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

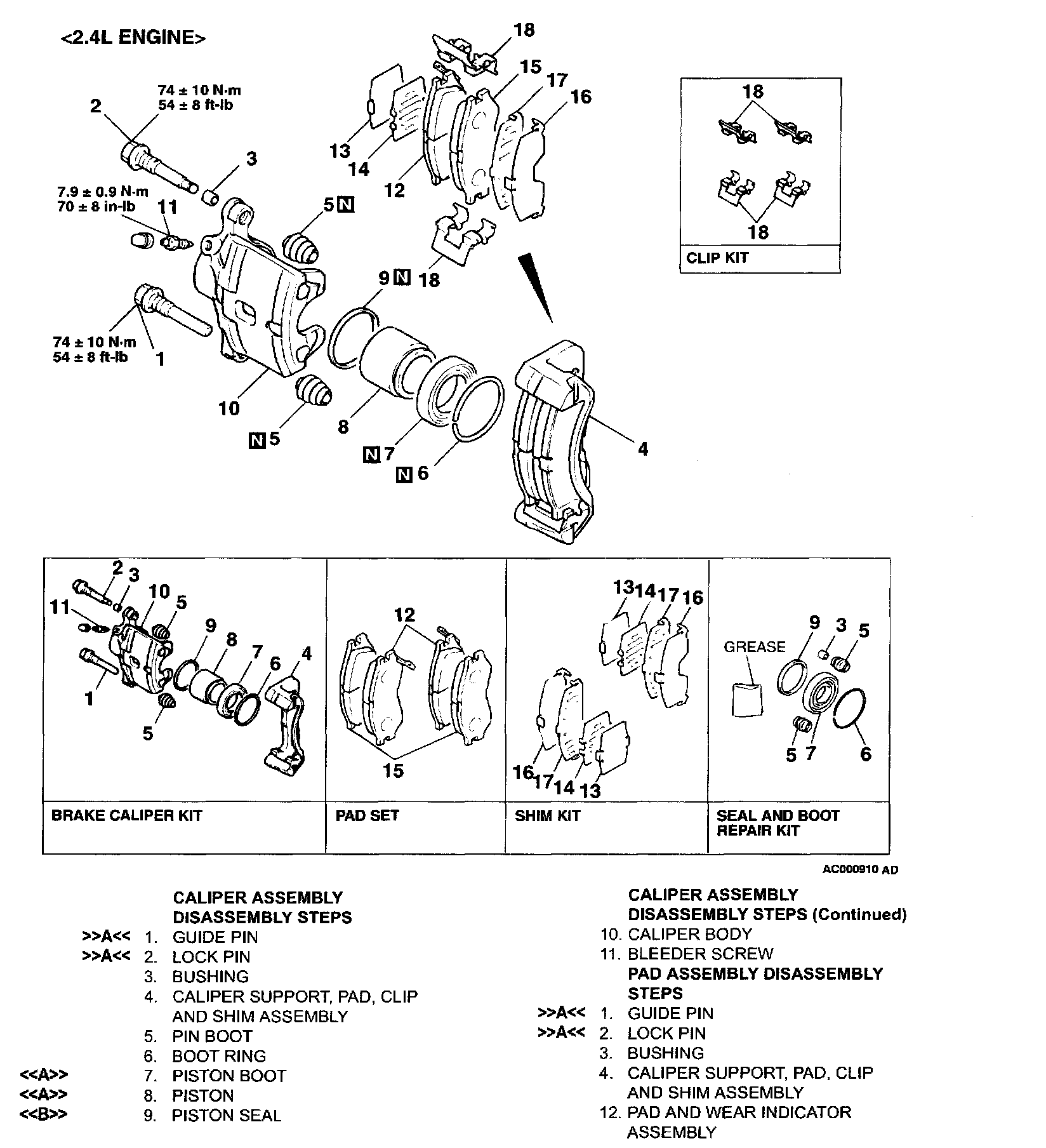

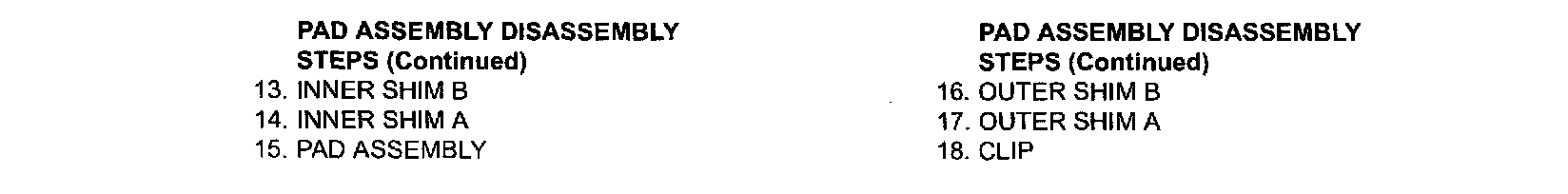

FRONT DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
