Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

Engine Control Module

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:




ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:




ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 3:




ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 4:

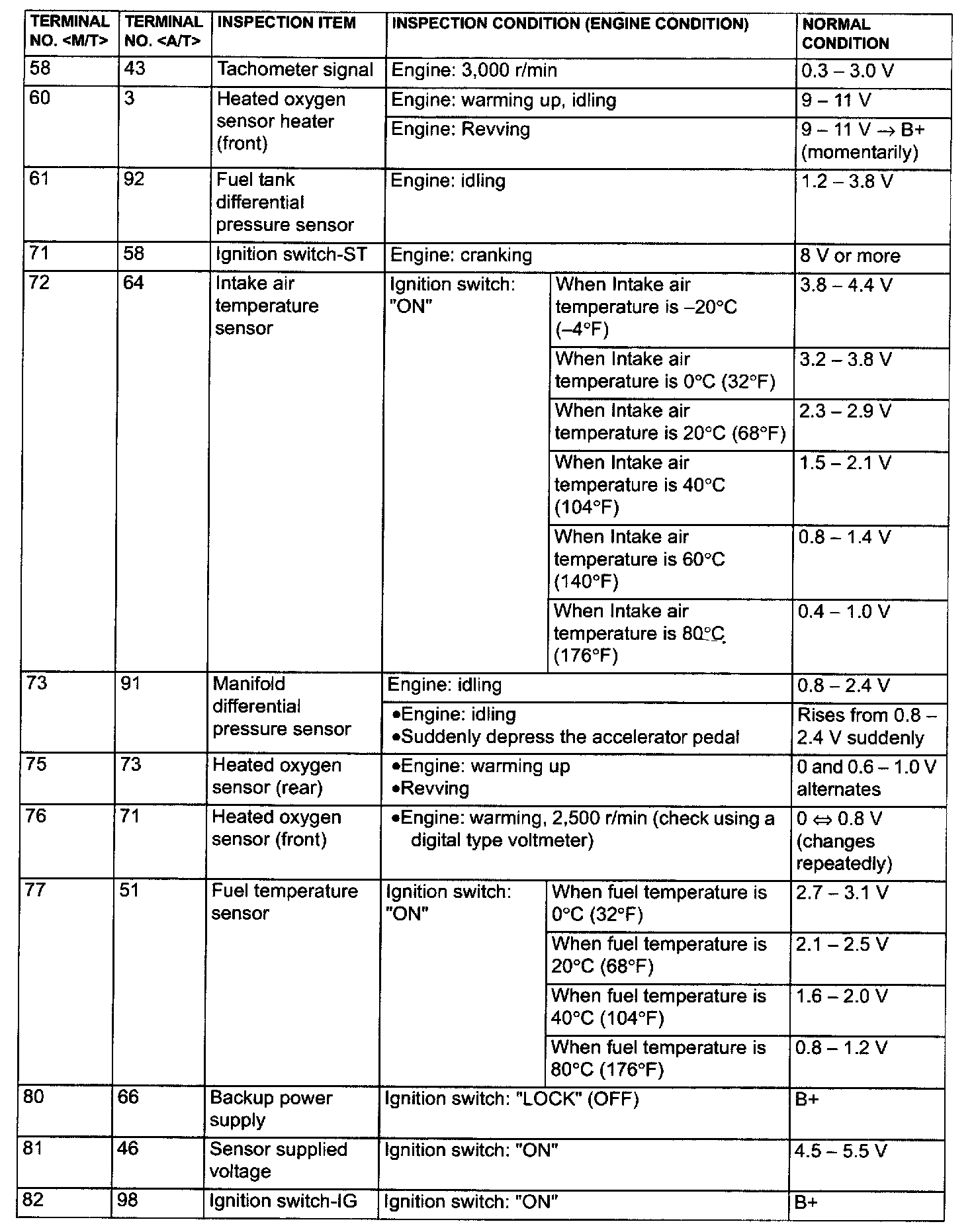

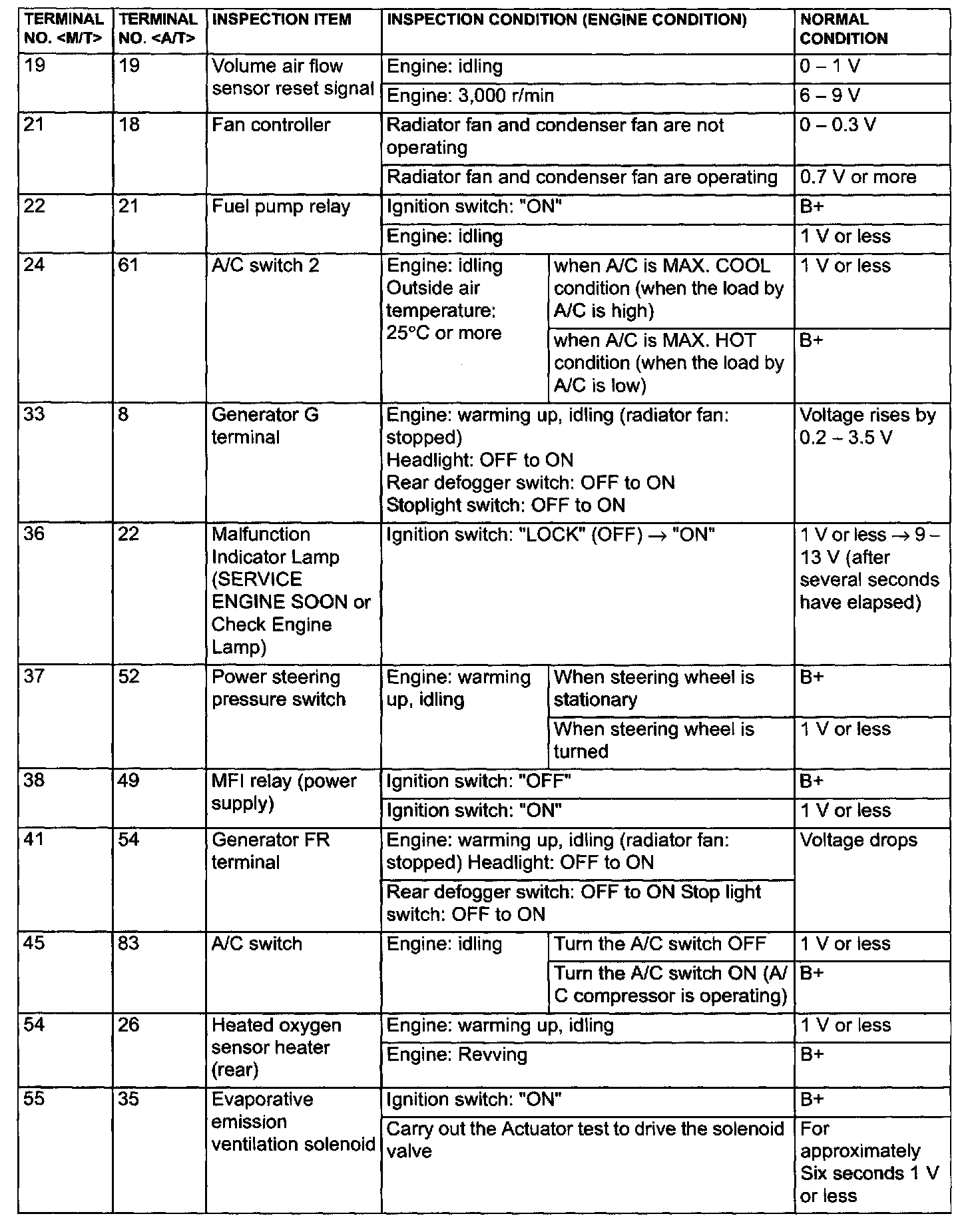

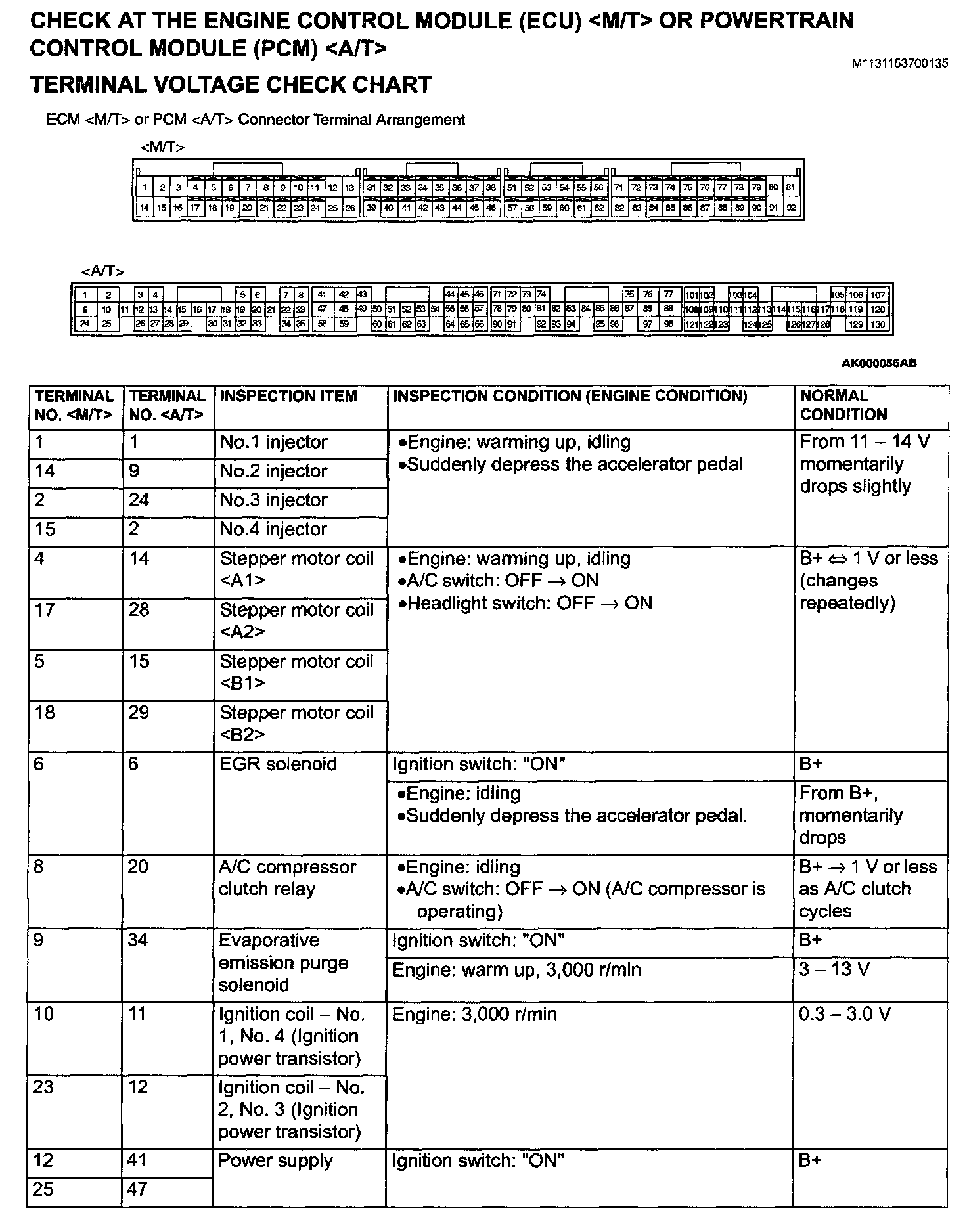

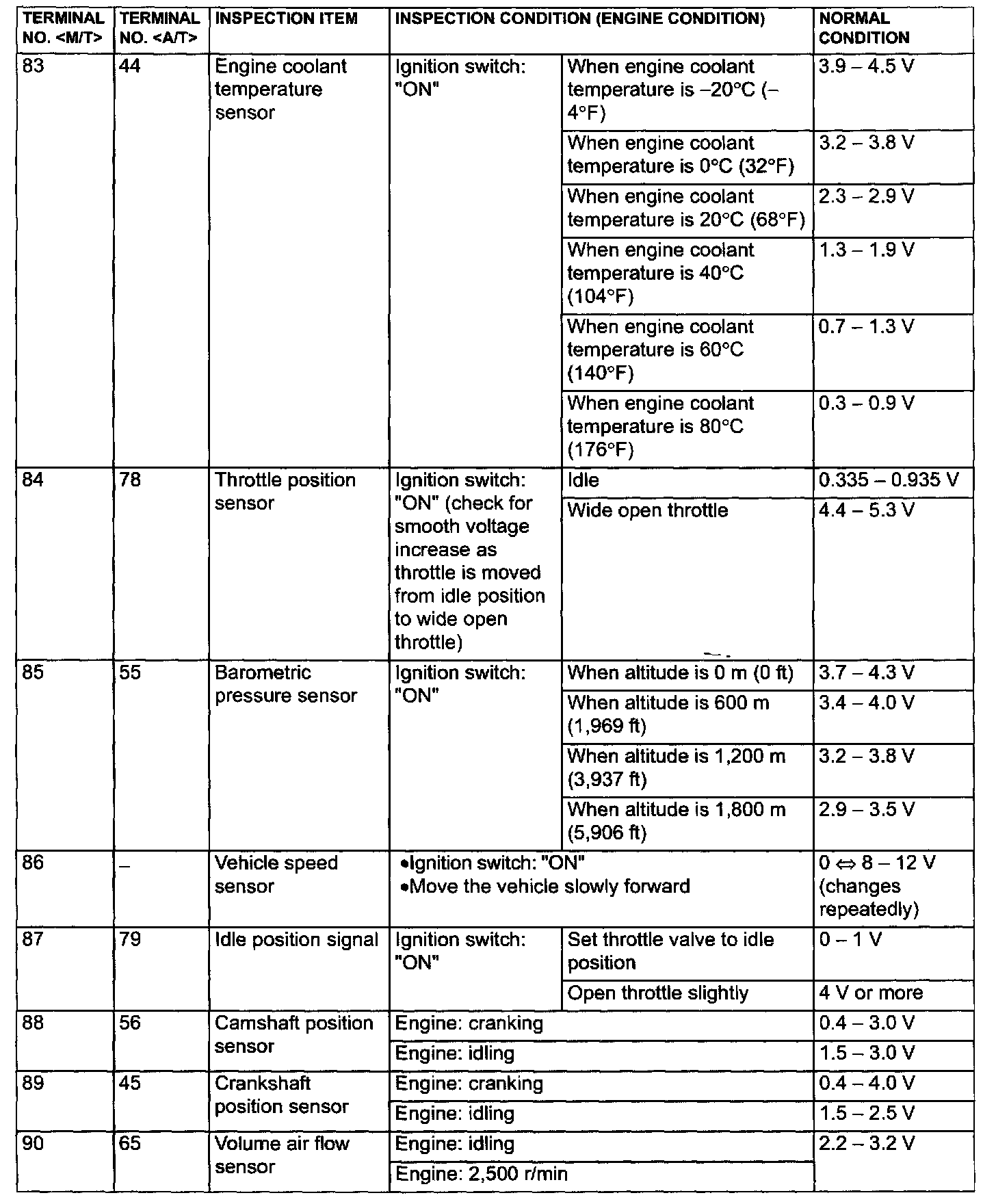

TERMINAL VOLTAGE CHECK CHART
