Home >> Mercury >> 2011 >> Milan FWD L4-2.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

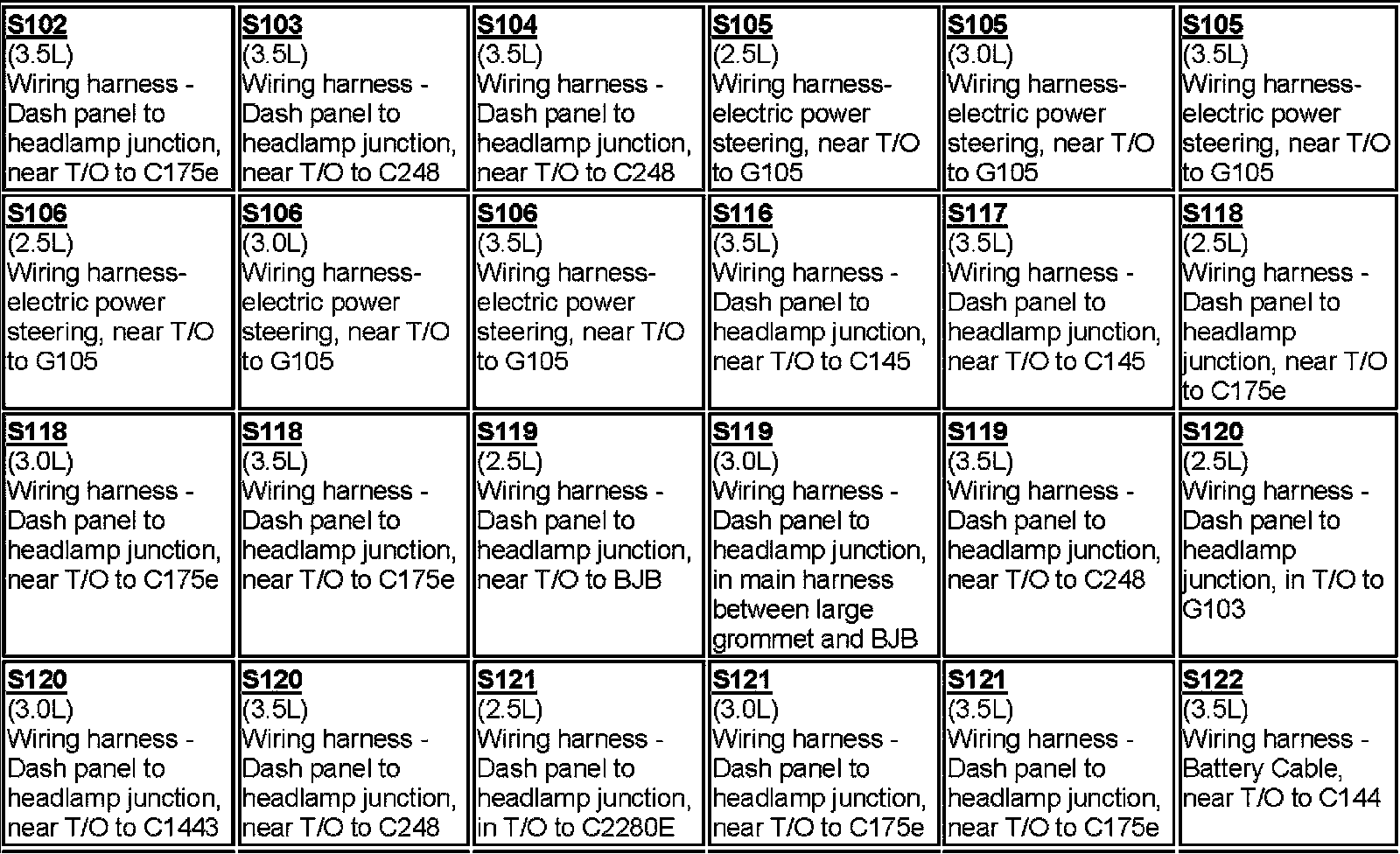

S102-S122:

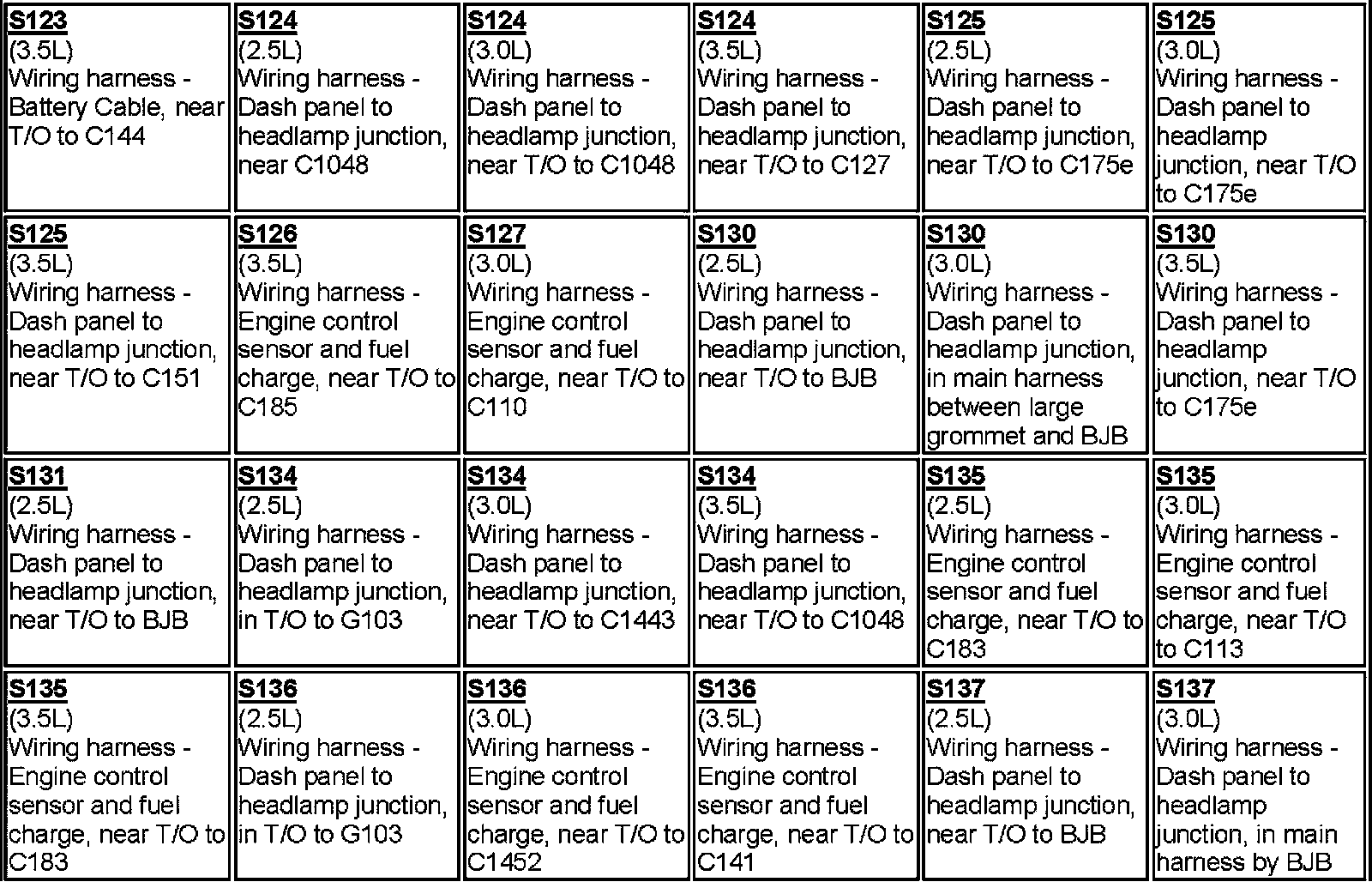

S123-S137:

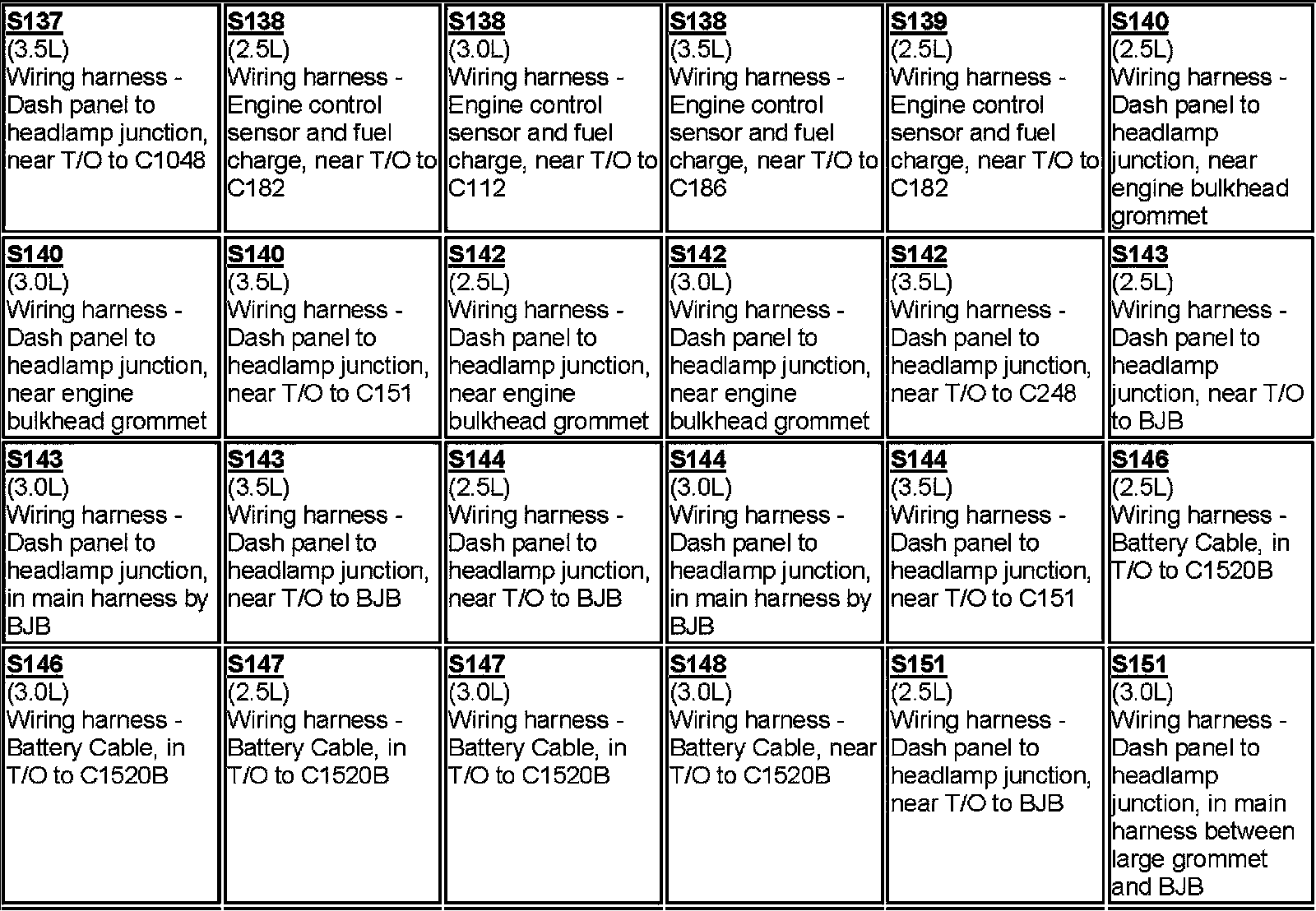

S137-S151:

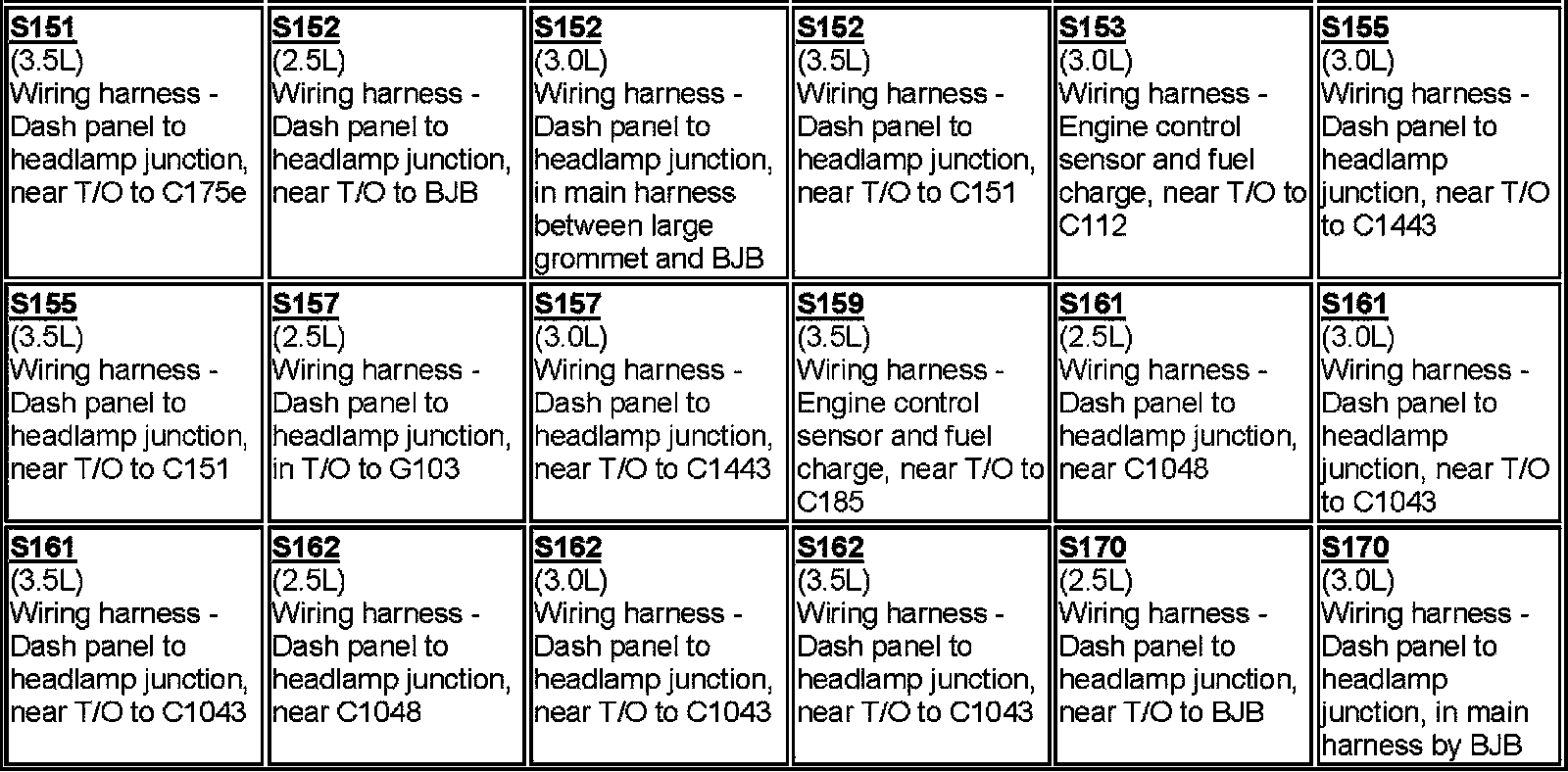

S151-S170:

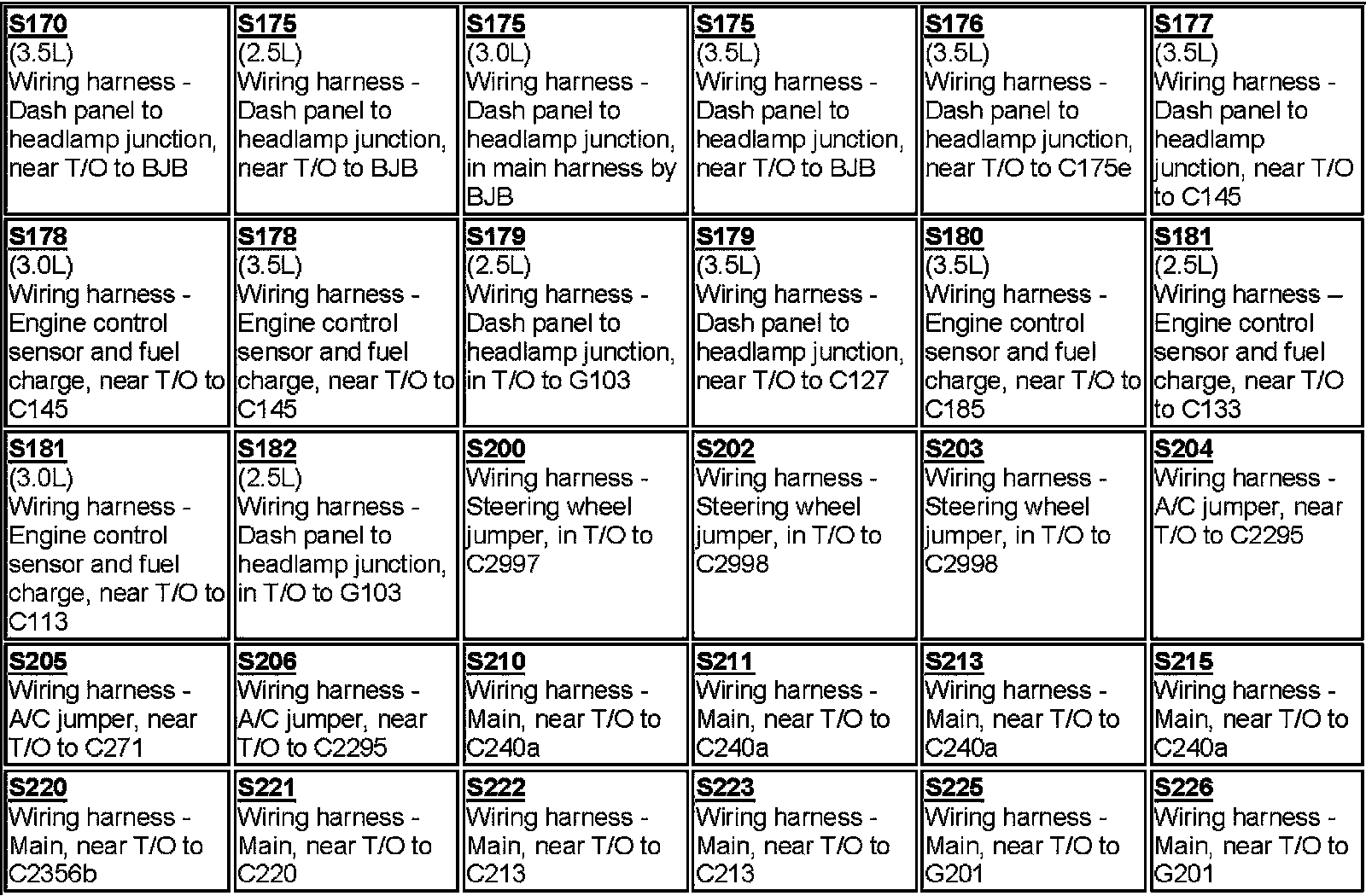

S170-S226:

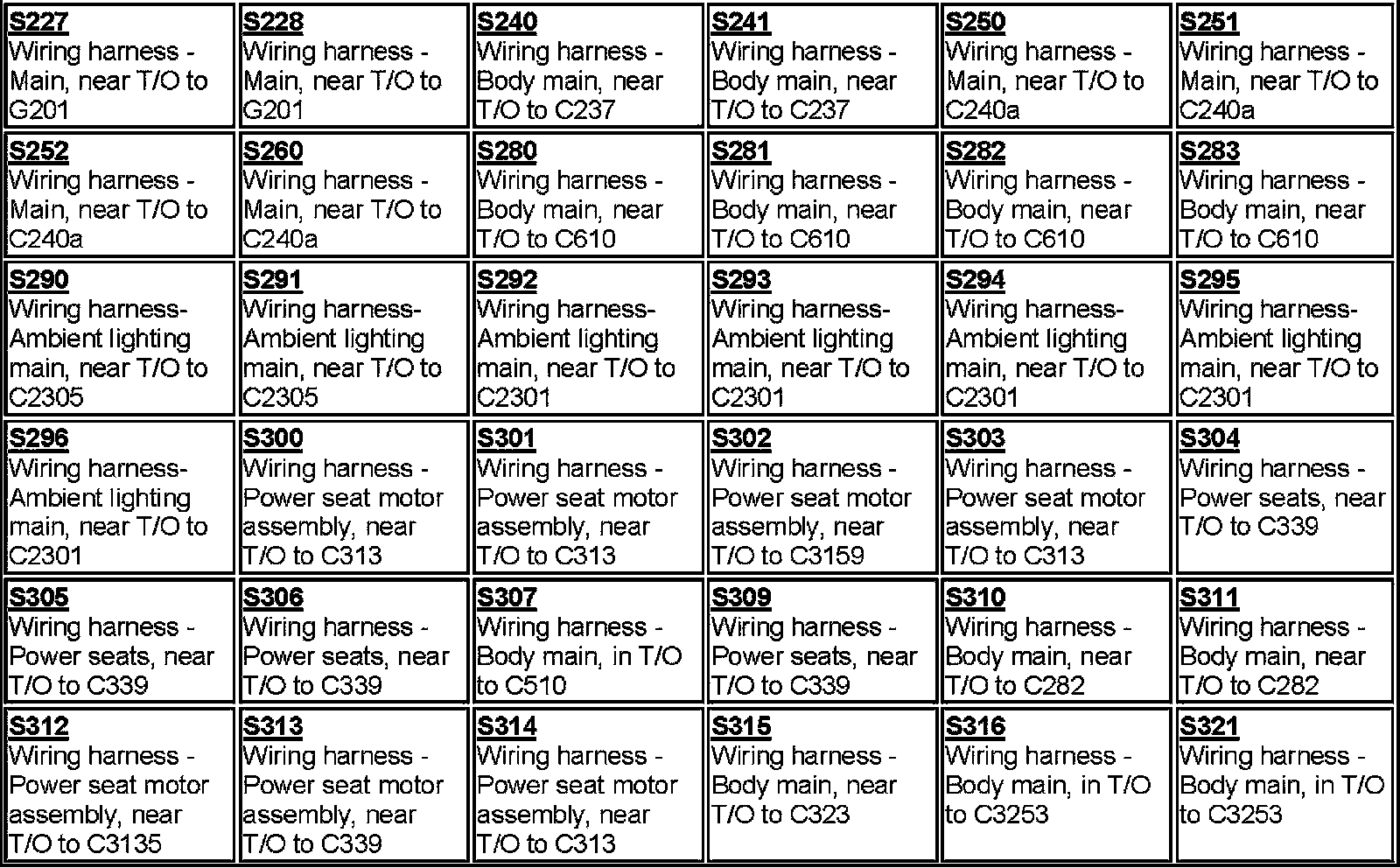

S227-S321:

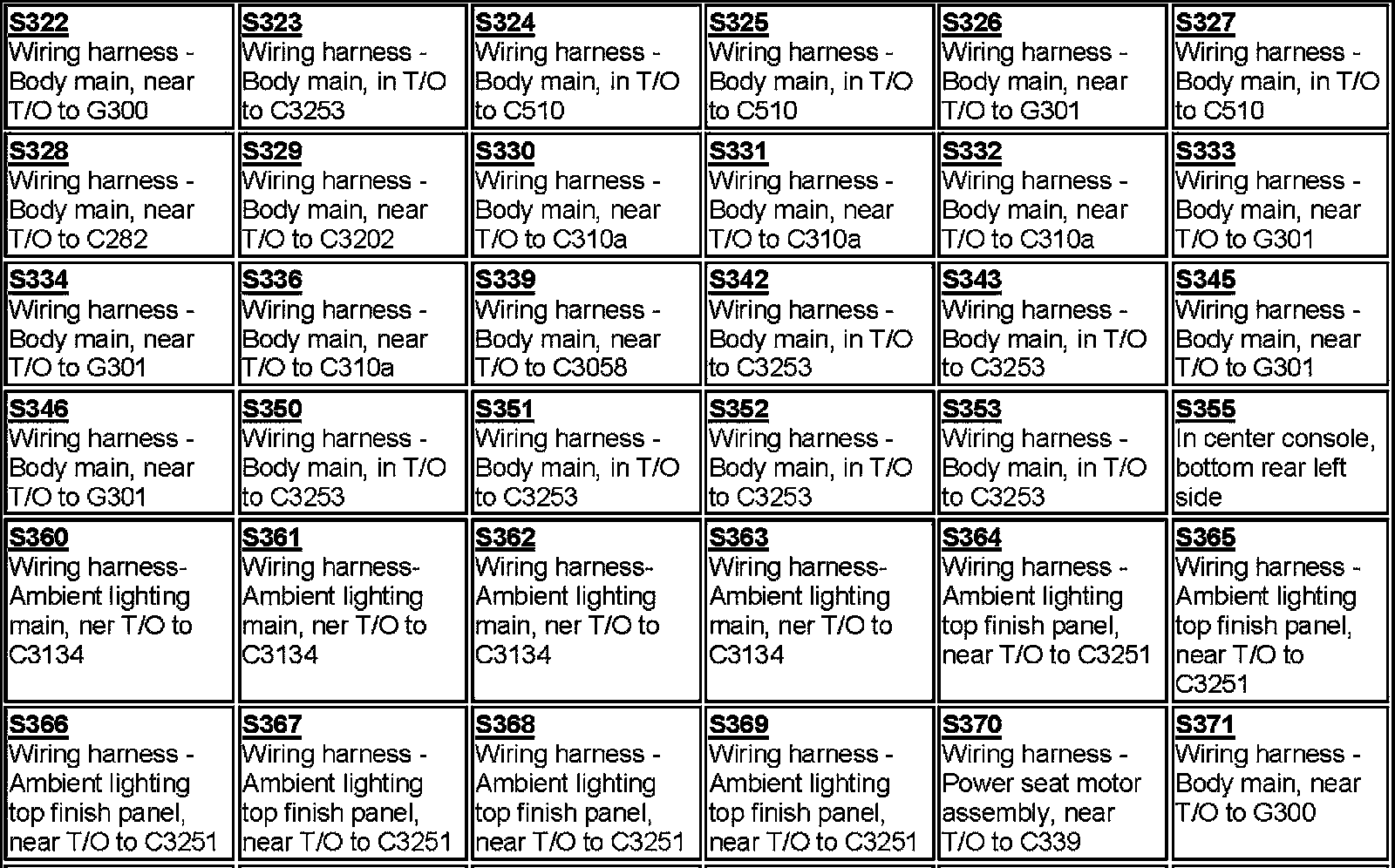

S322-S371:

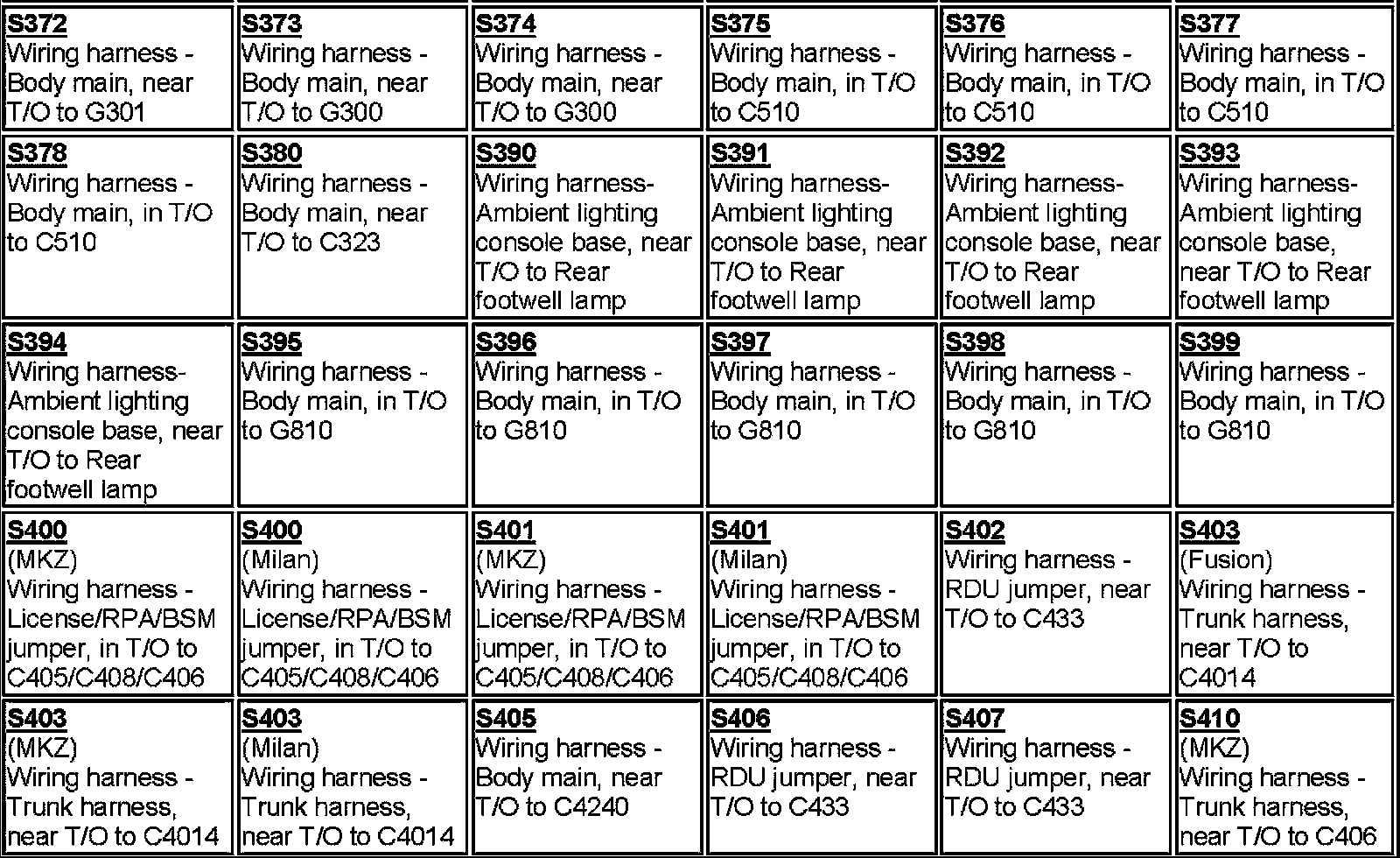

S372-S410:

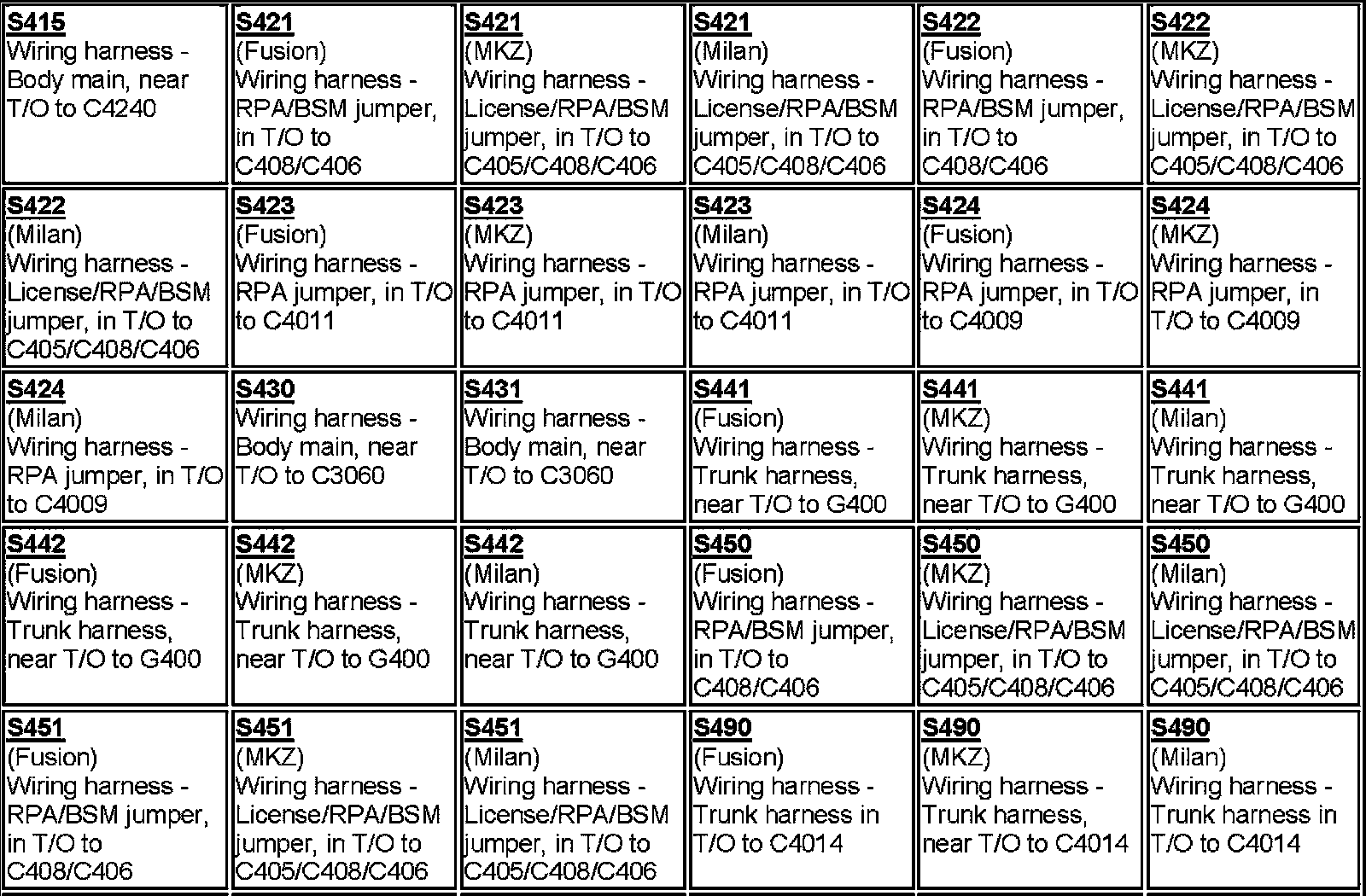

S415-S490:

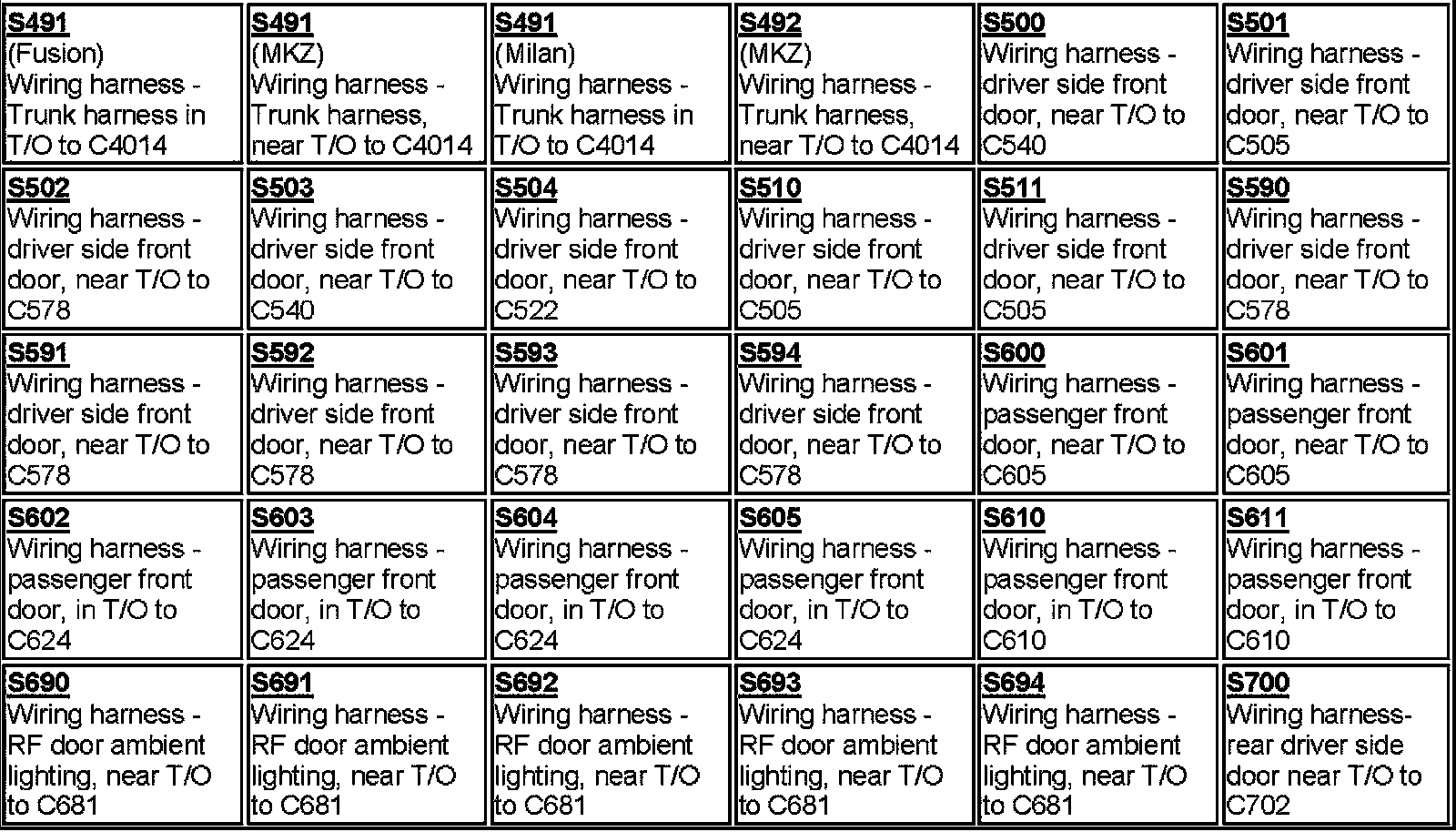

S491-S700:

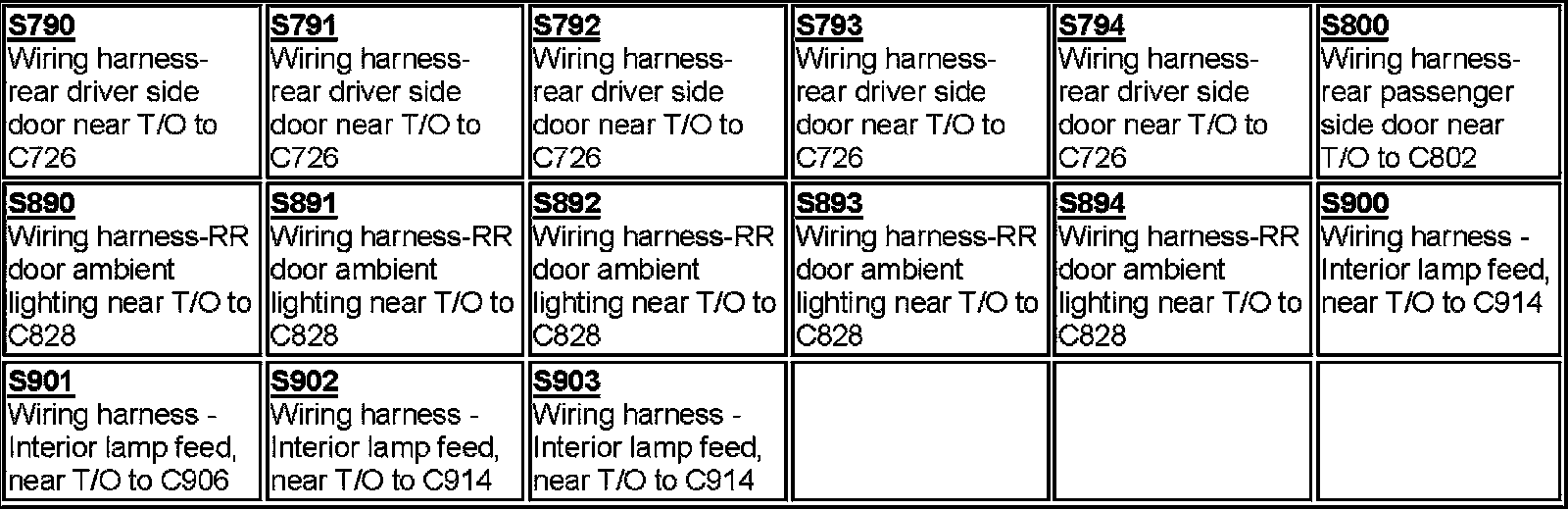

S790-S903:
