lemon-mirror
:
Home
>>
Mercury
>>
2011
>>
Milan FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

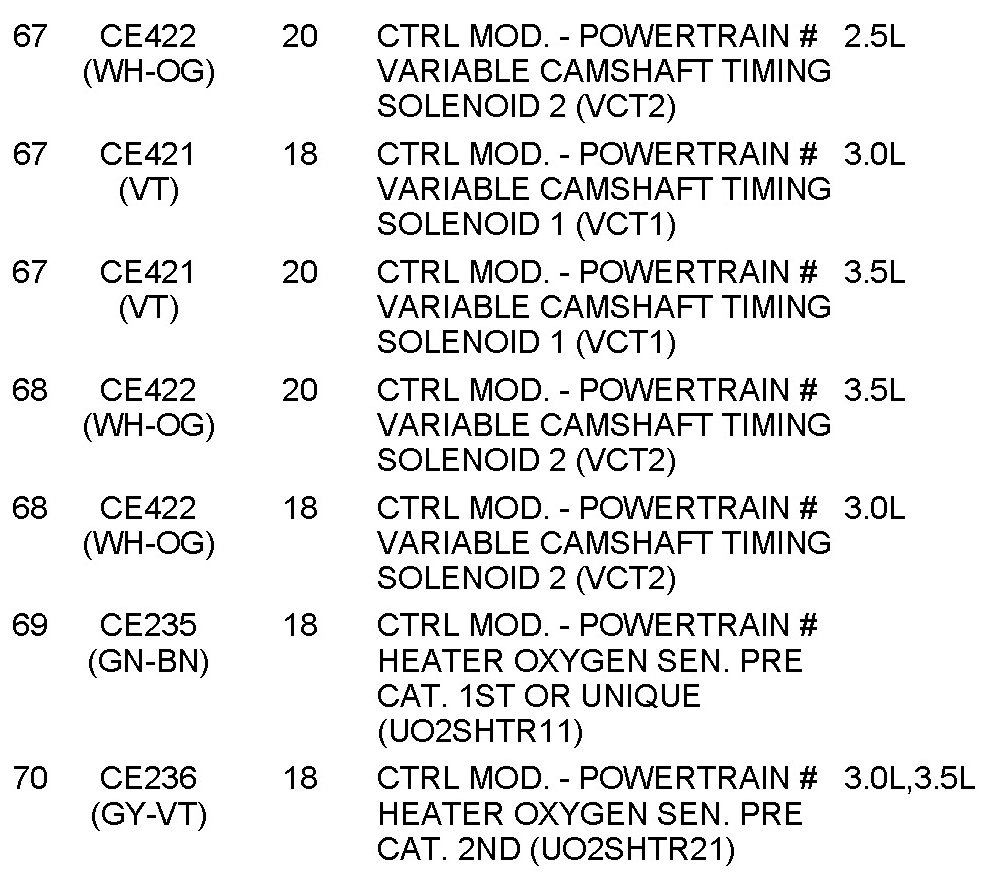

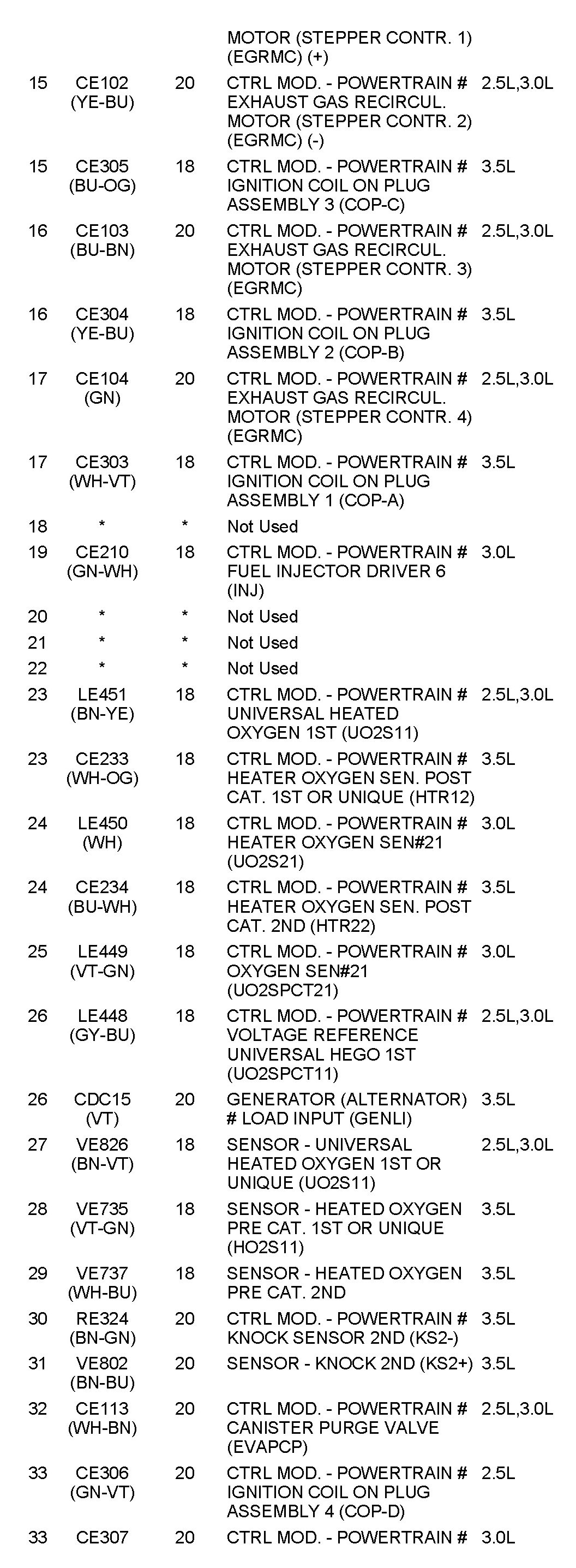

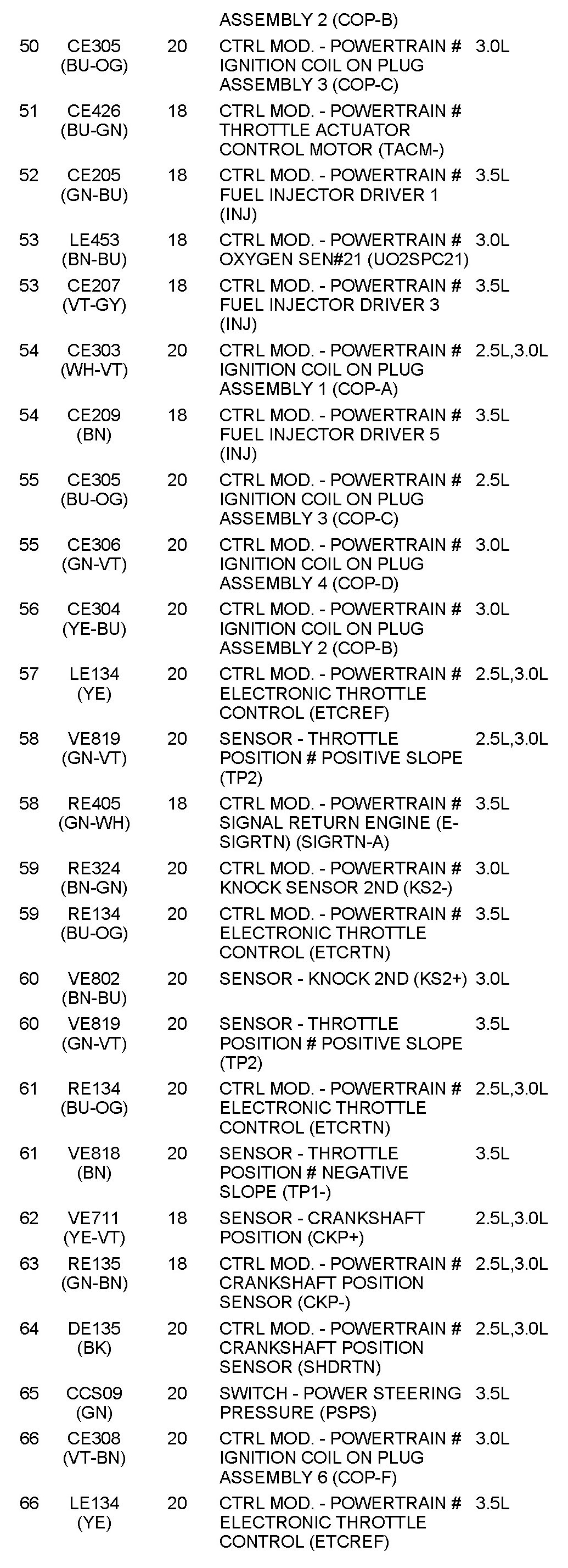

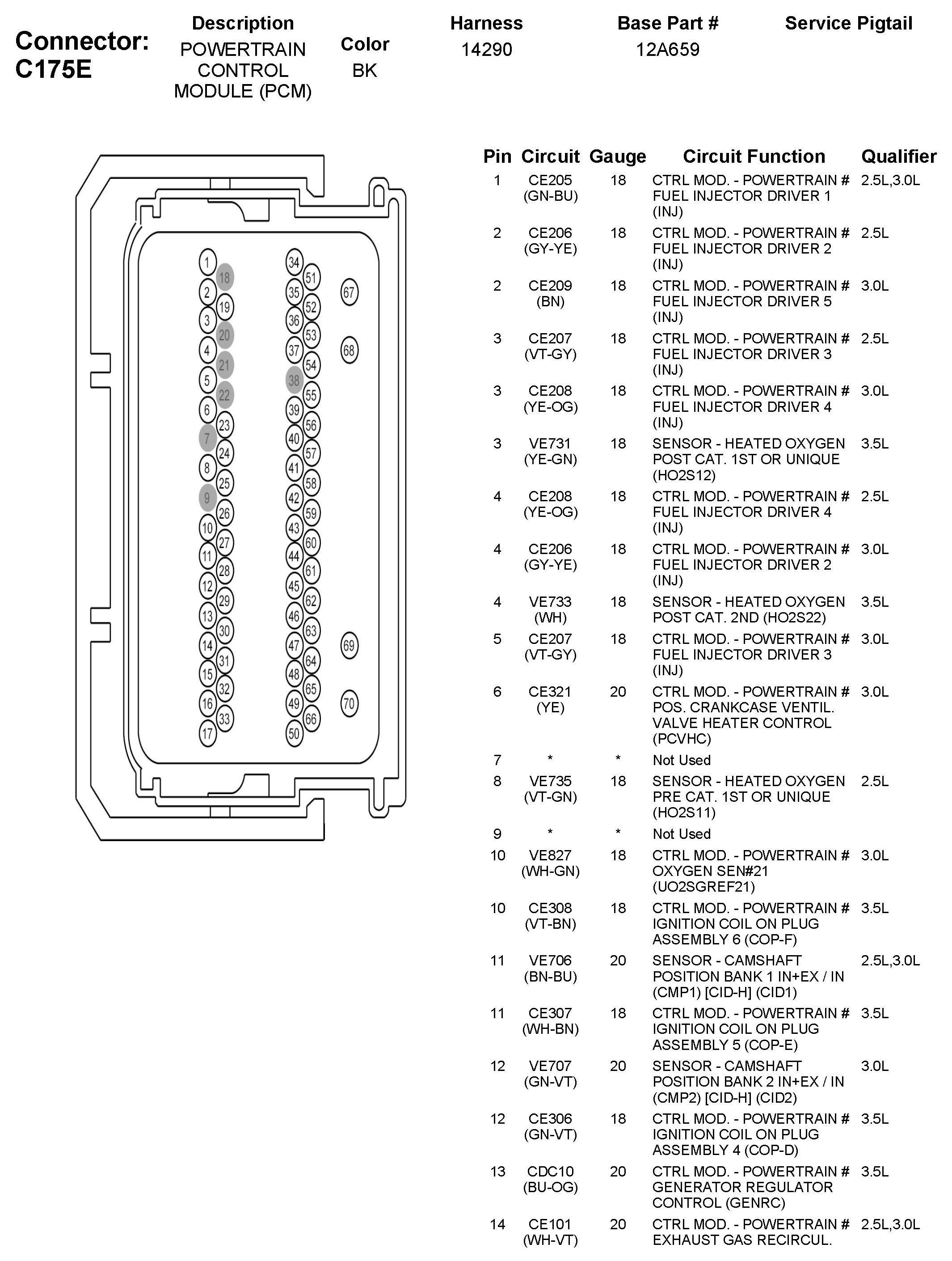

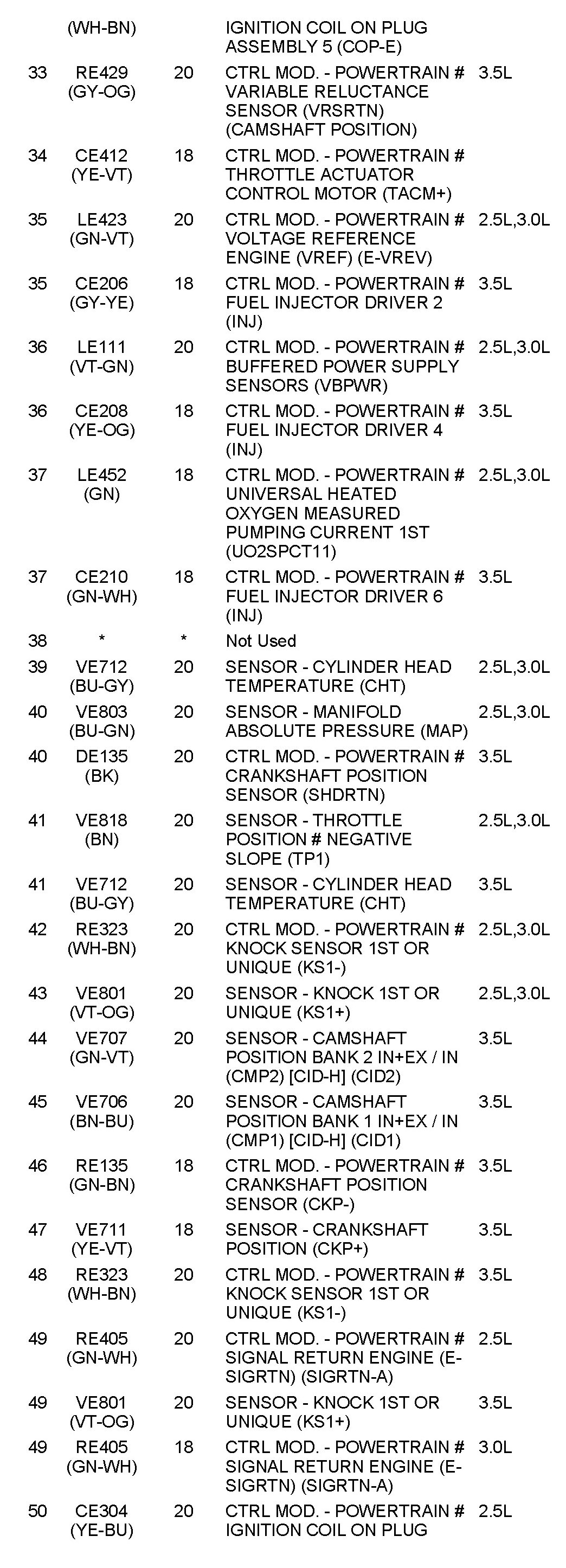

C175E Powertrain Control Module (PCM)
C175E Powertrain Control Module (PCM)
