Home >> Mercury >> 2011 >> Mariner 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Air Filter Element

Air Filter Element

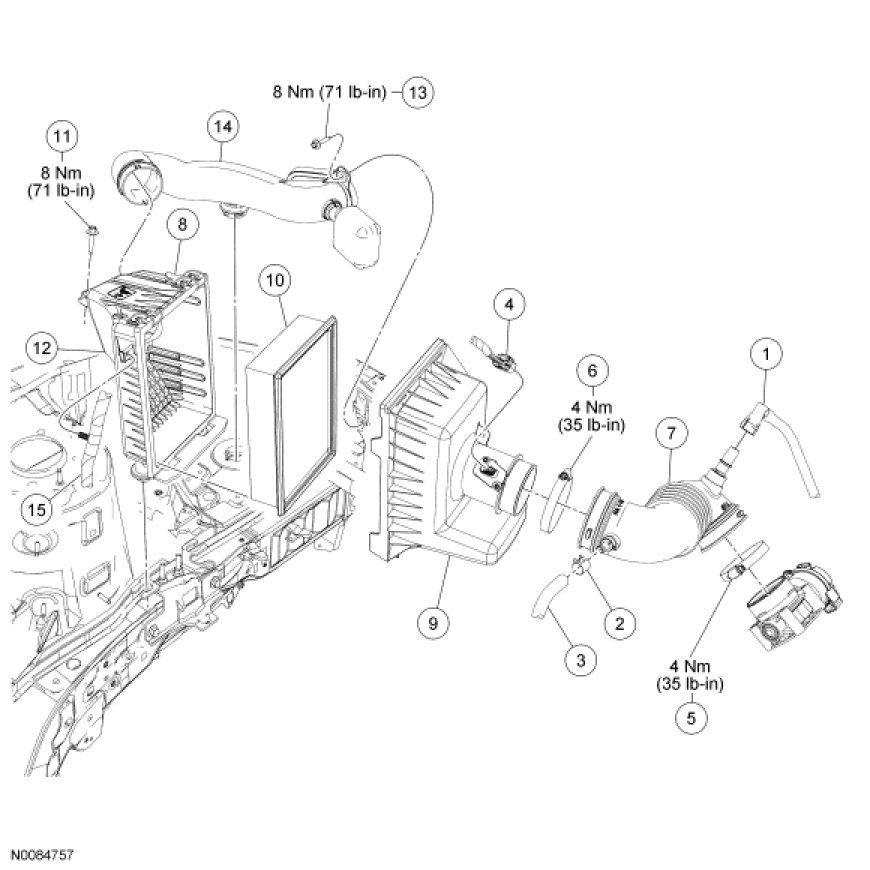

Intake Air System Components - Exploded View

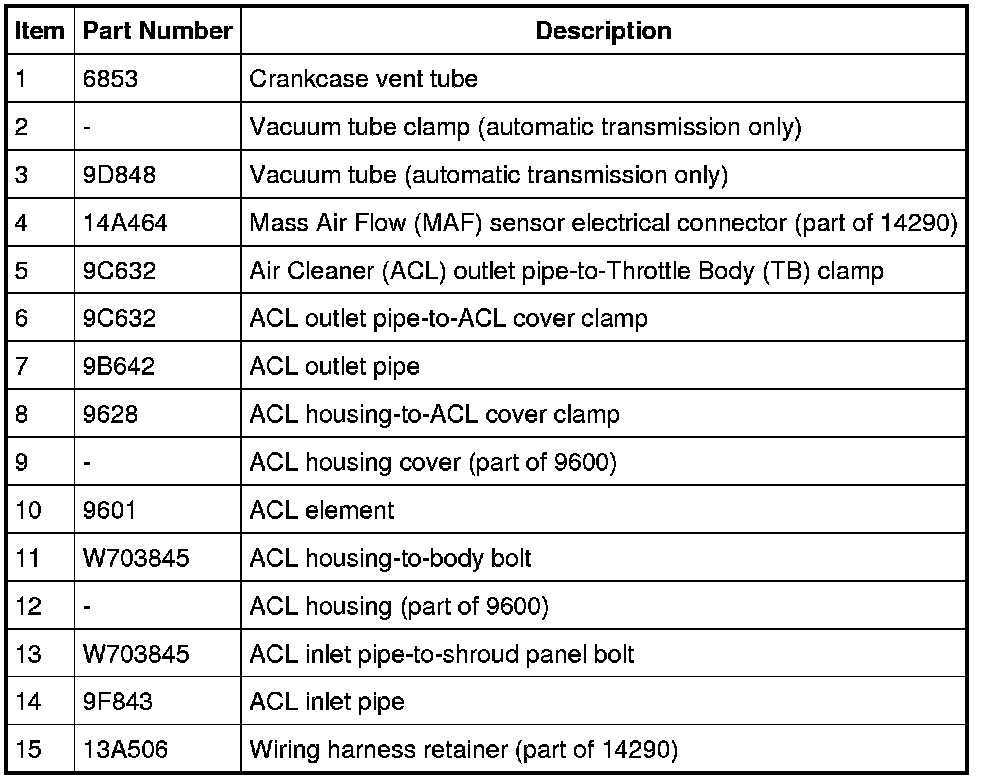

Air Cleaner Assembly, Intake Pipe and Outlet Pipe

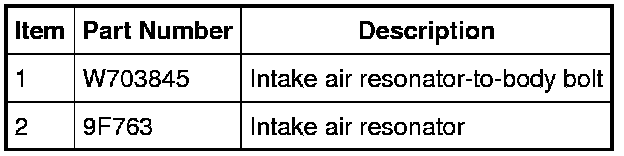

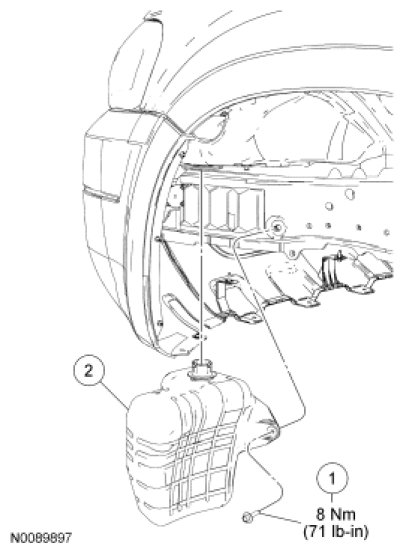

Intake Air Resonator
