Mercury
>>
2011
>>
Mariner 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>

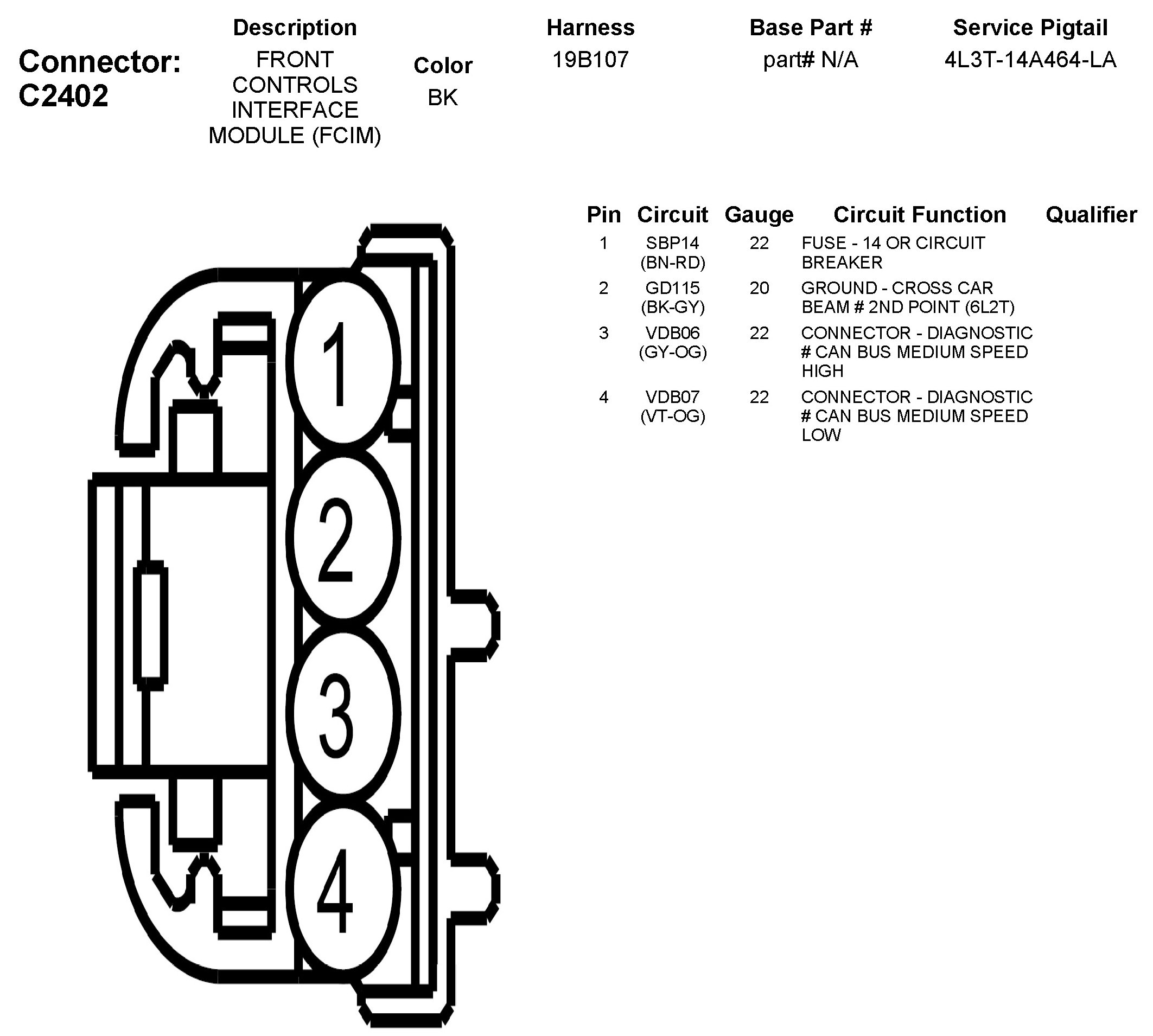

C2402 Front Controls Interface Module (FCIM)
C2402 Front Controls Interface Module (FCIM)
