Home >> Mercury >> 2009 >> Mariner 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

Accessory Protocol Interface Module (APIM)

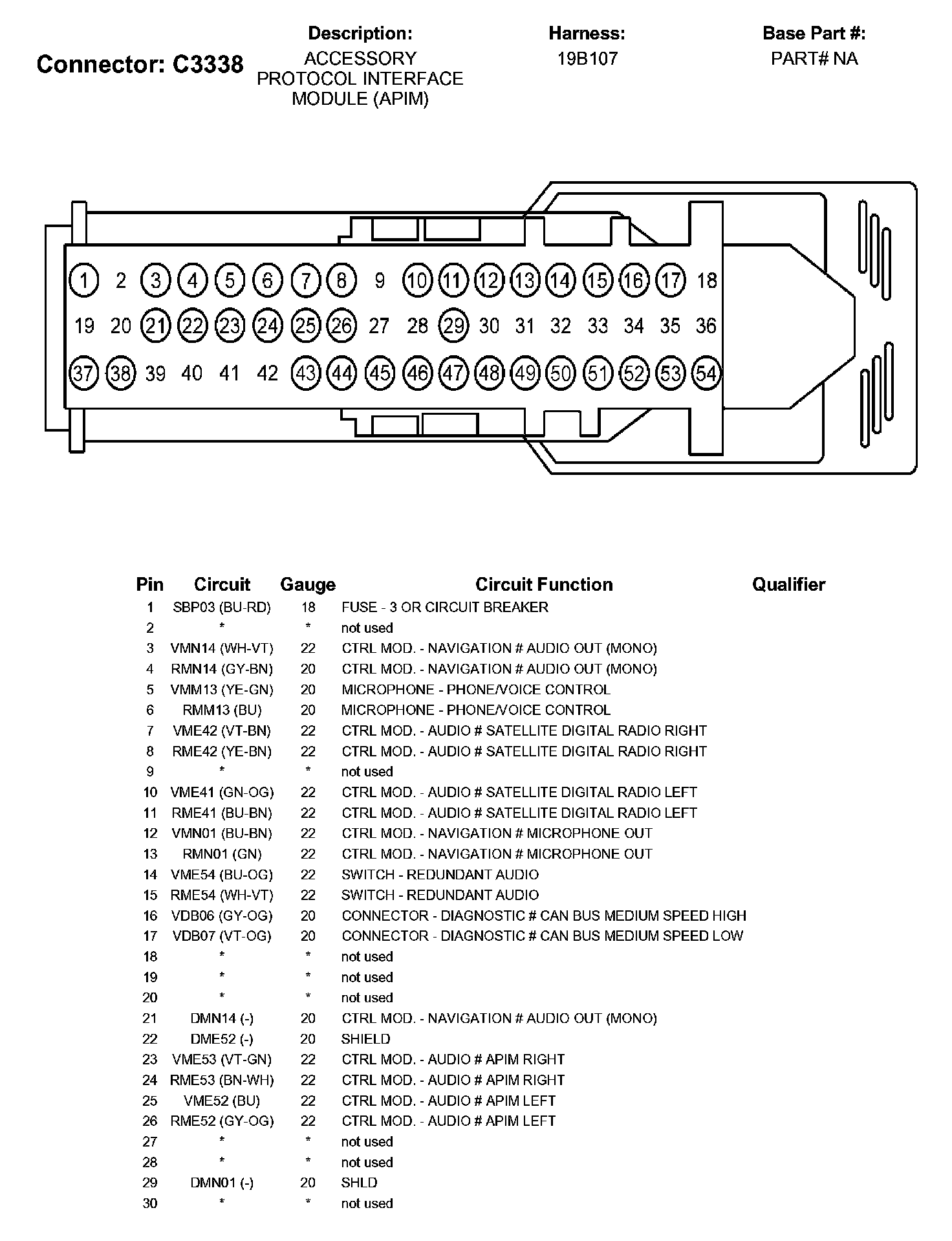

Part 1:

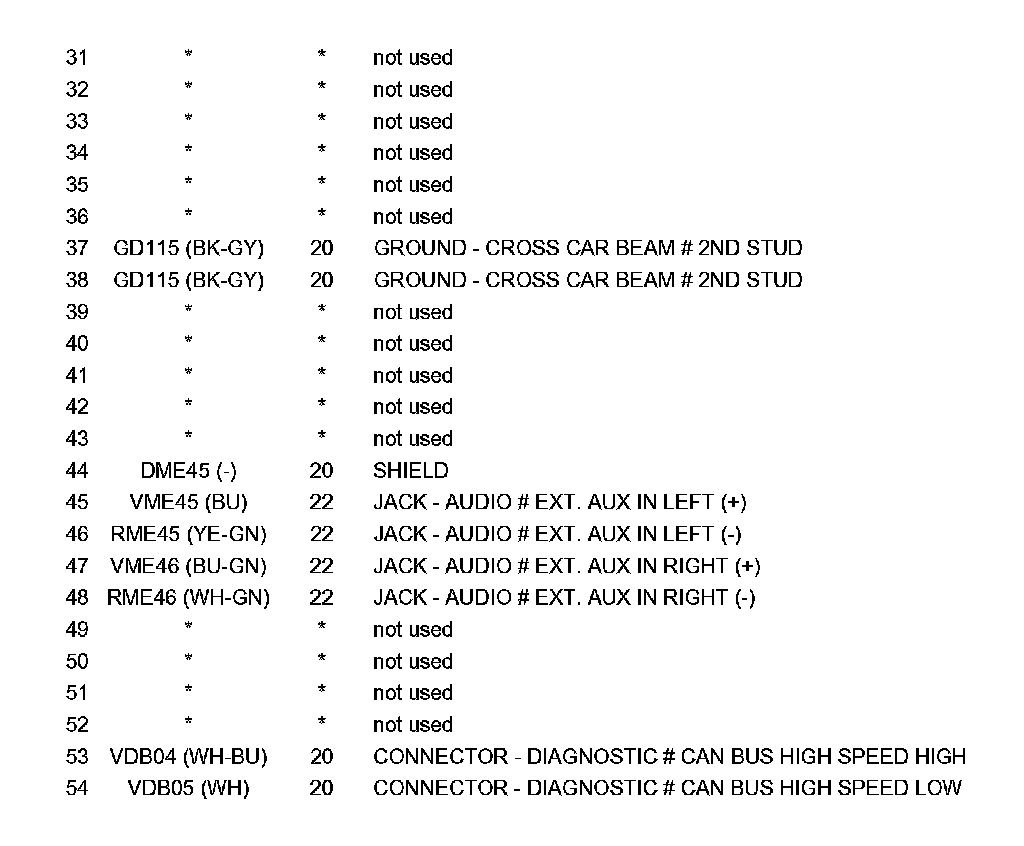

Part 2:
