Home >> Mercury >> 2009 >> Mariner 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

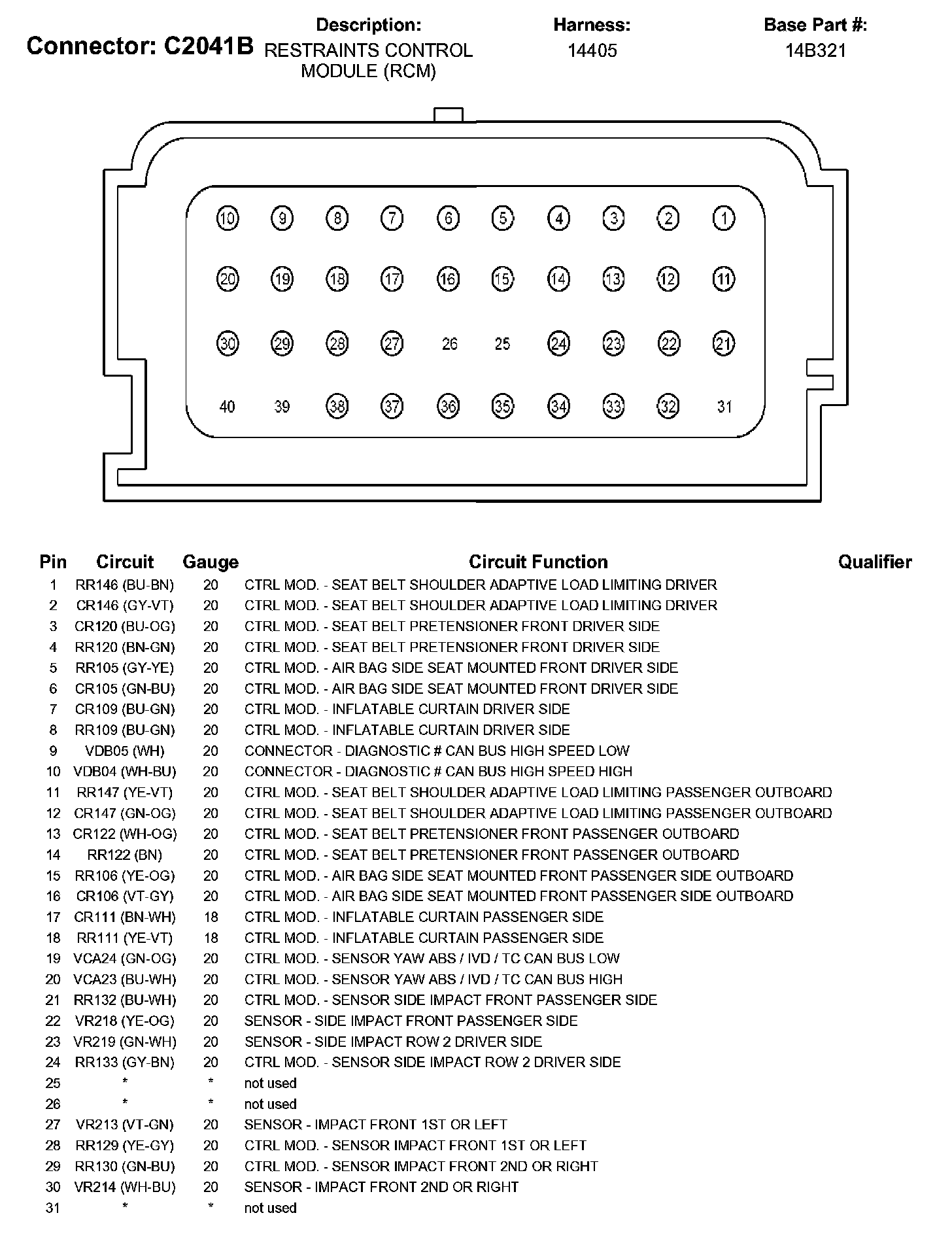

Part 1:

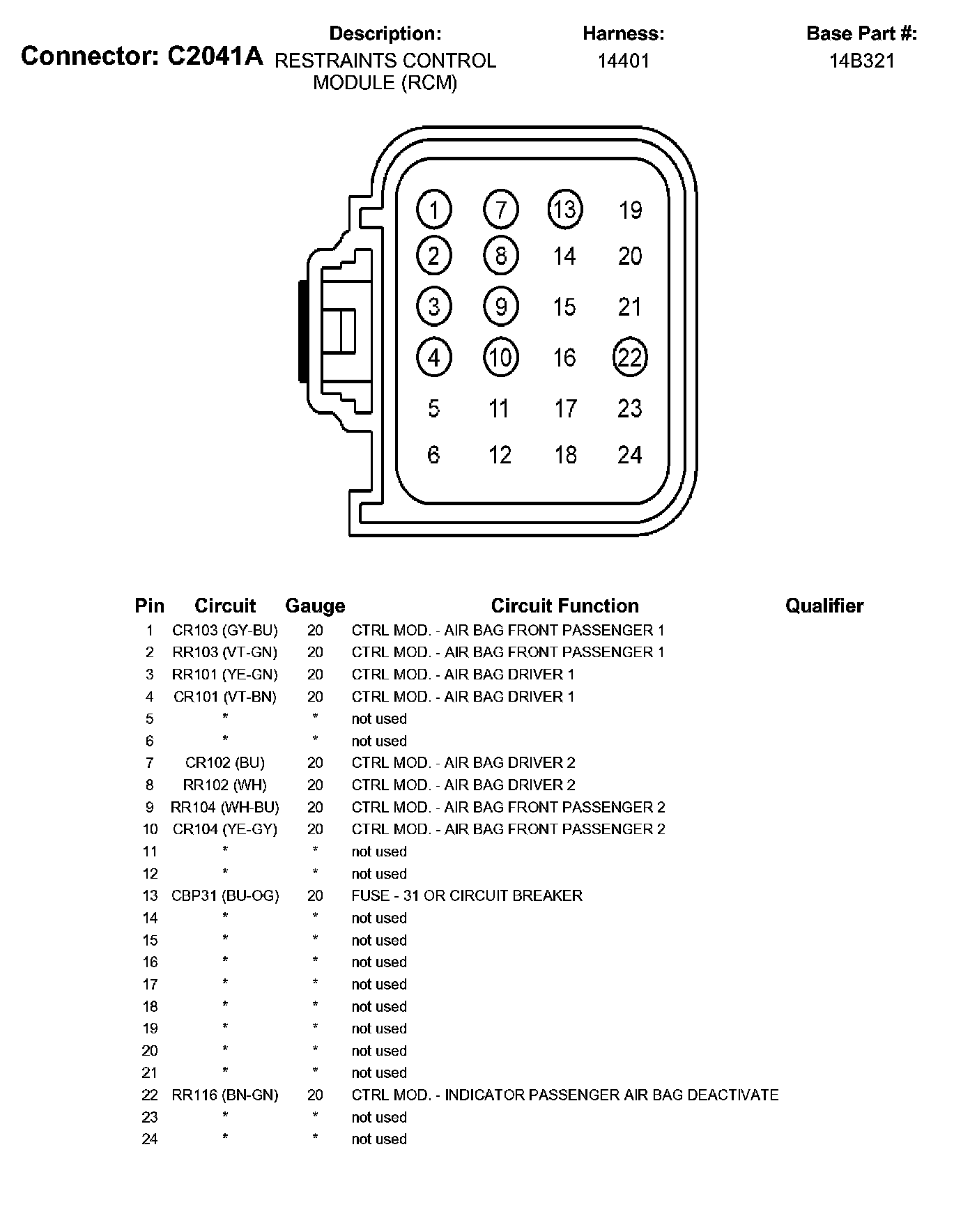

Part 2:
