Mariner 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Front Display Interface Module (FDIM)
Front Display Interface Module (FDIM)

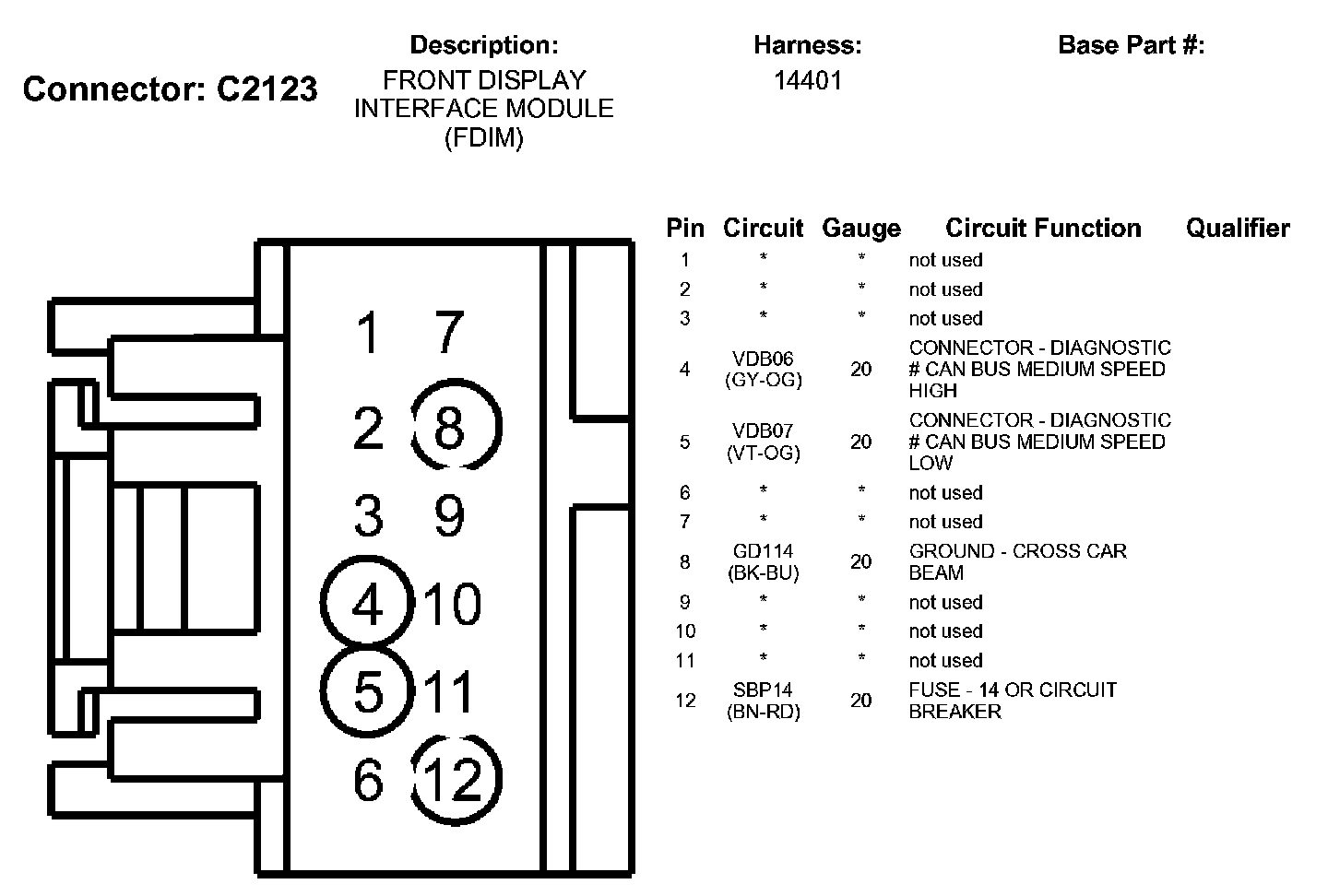

C2123:
