Electronic Manual Temperature Control (EMTC) Module
Electronic Manual Temperature Control (EMTC) Module

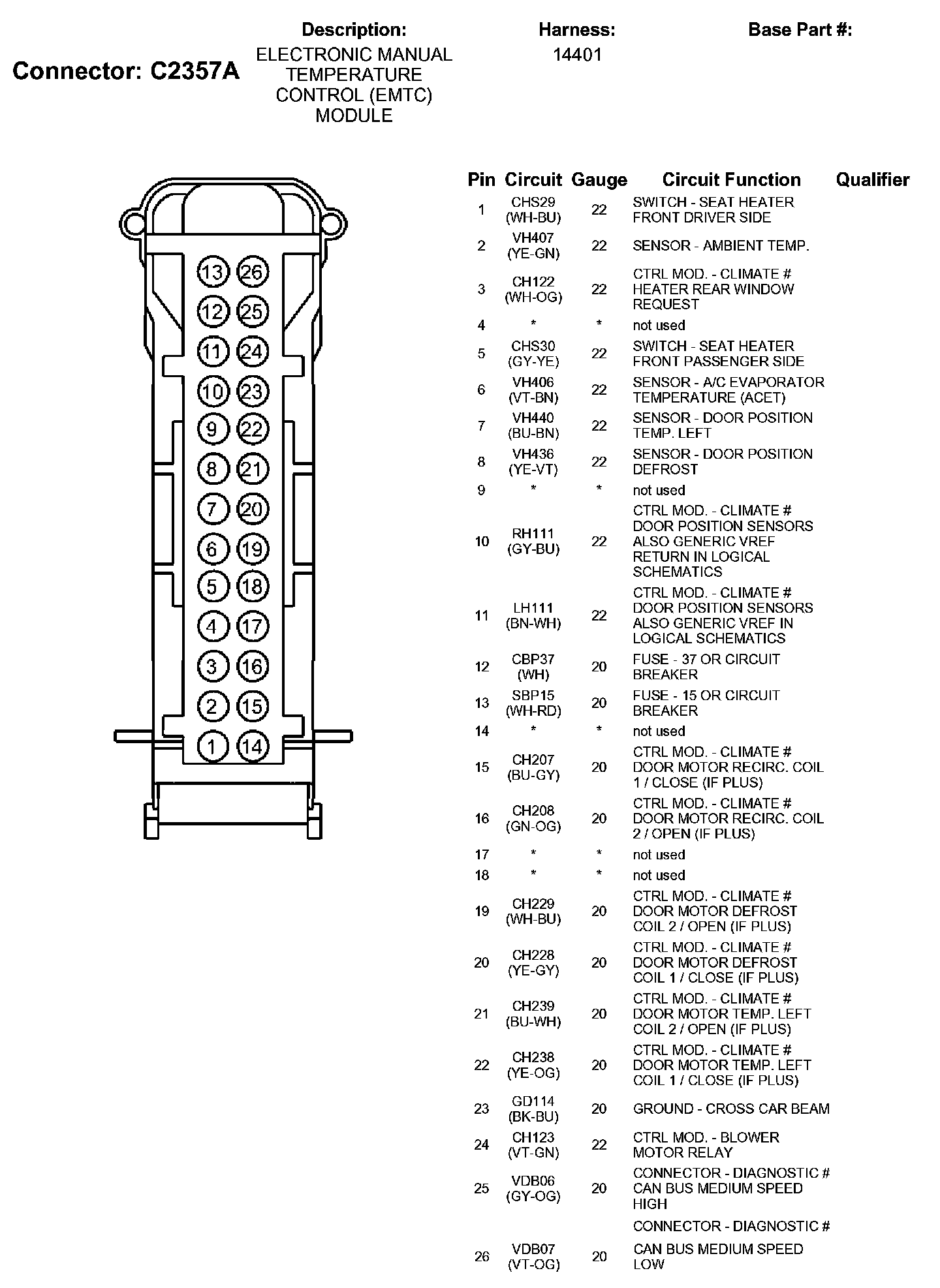

C2357A:

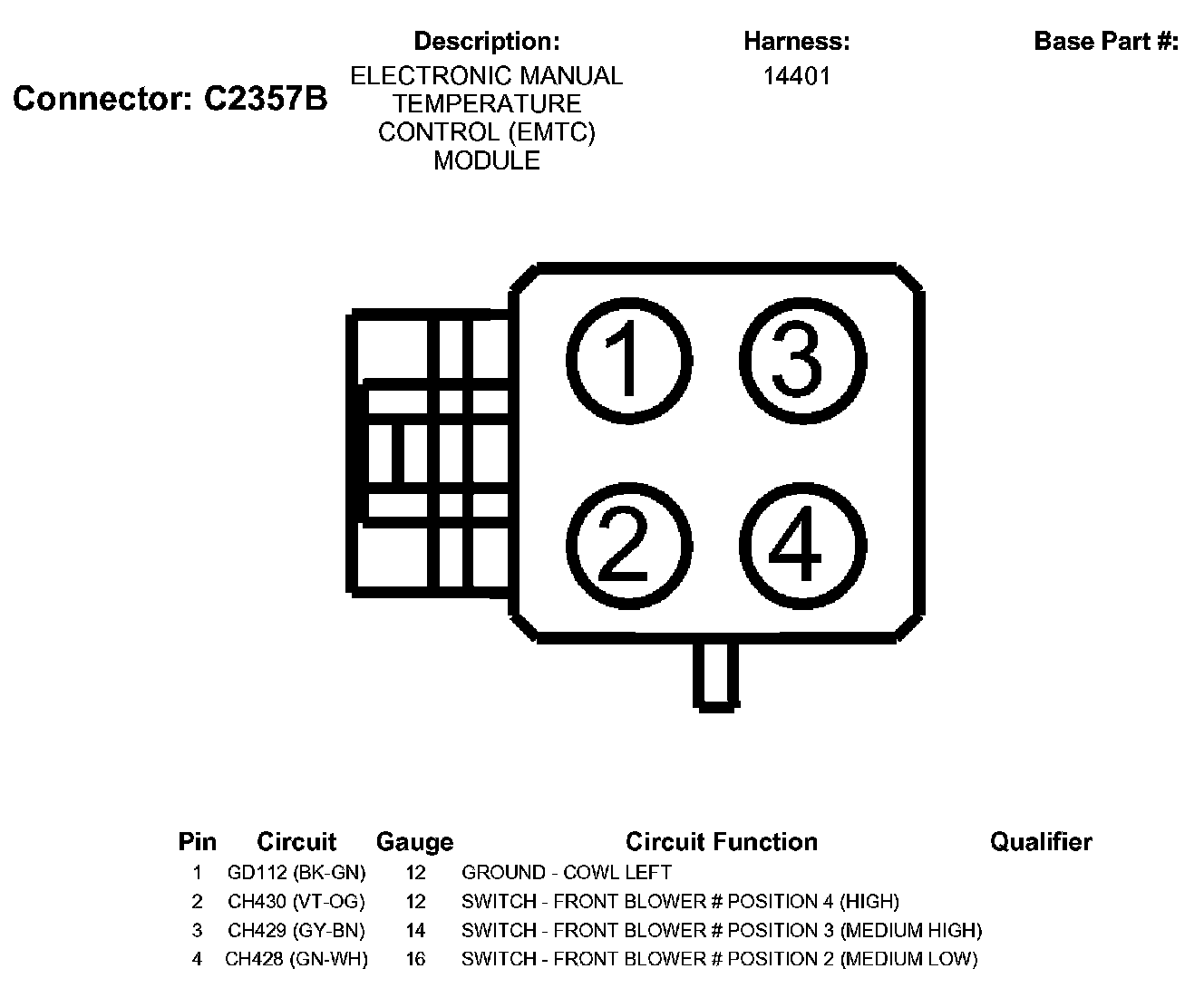

C2357B:
