Mercury
>>
2008
>>
Mariner 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Dual Automatic Temperature Control (DATC) Module
Dual Automatic Temperature Control (DATC) Module

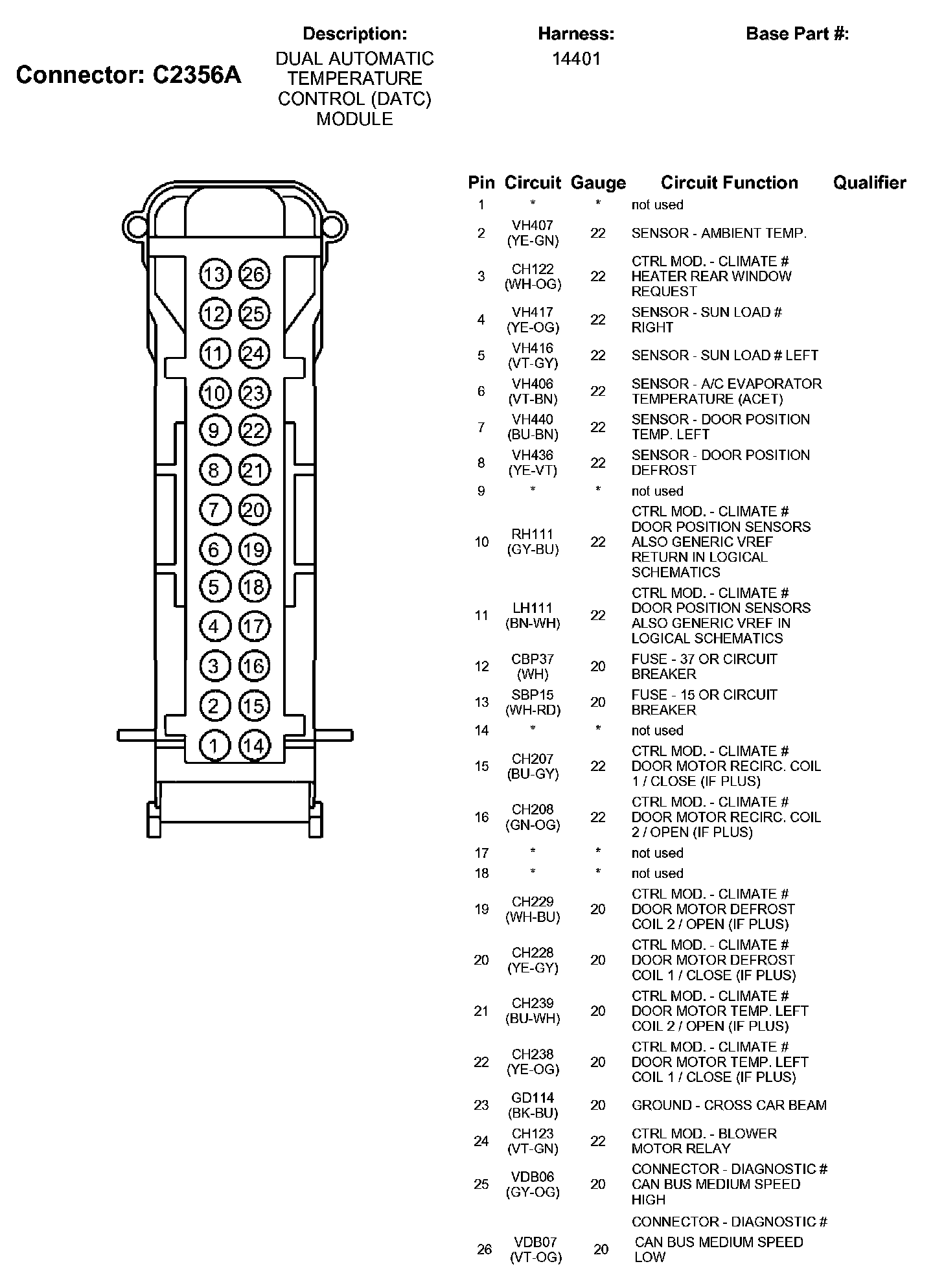

C2356A:

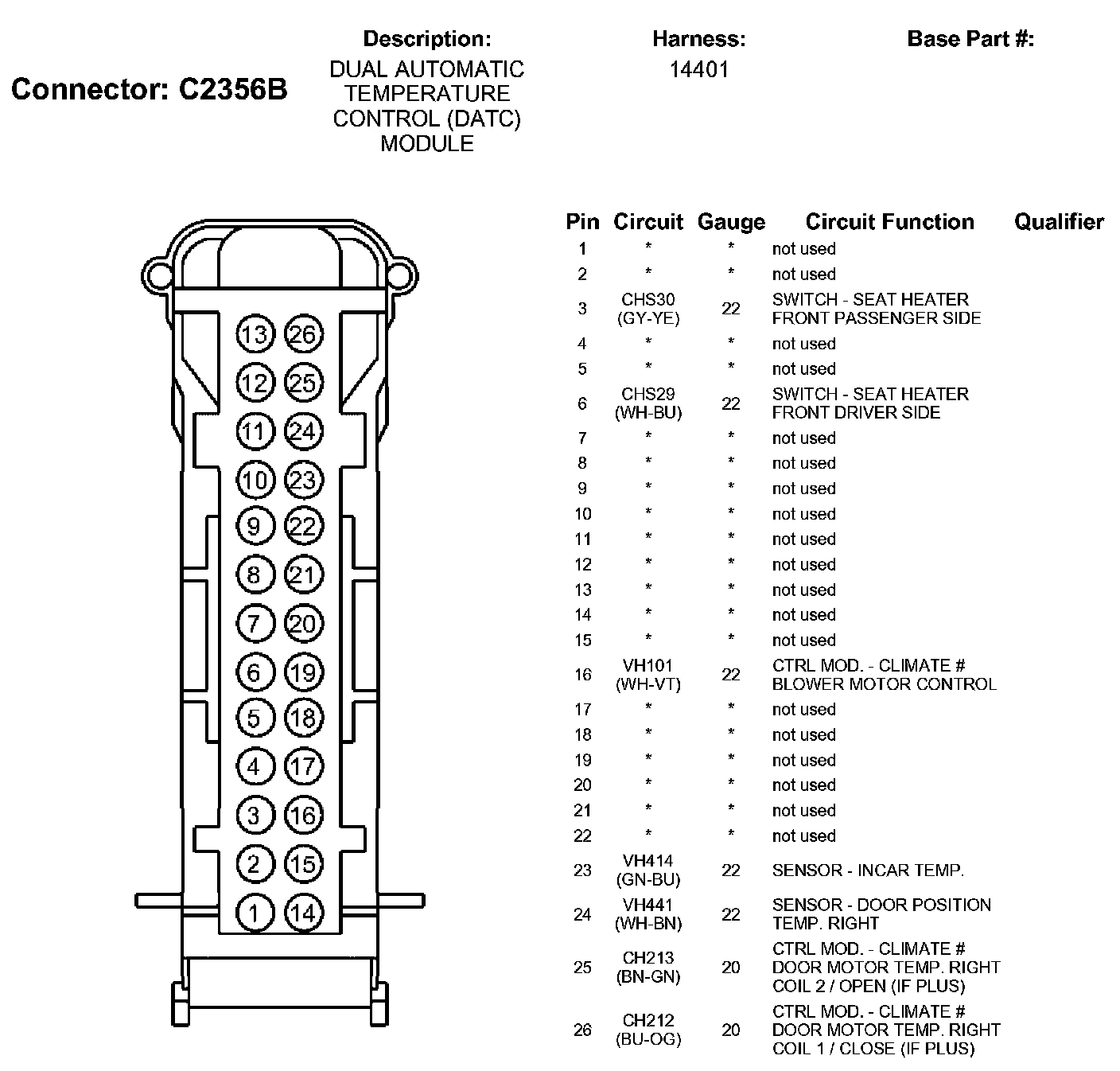

C2356B:
