Engine Control Module: Diagrams

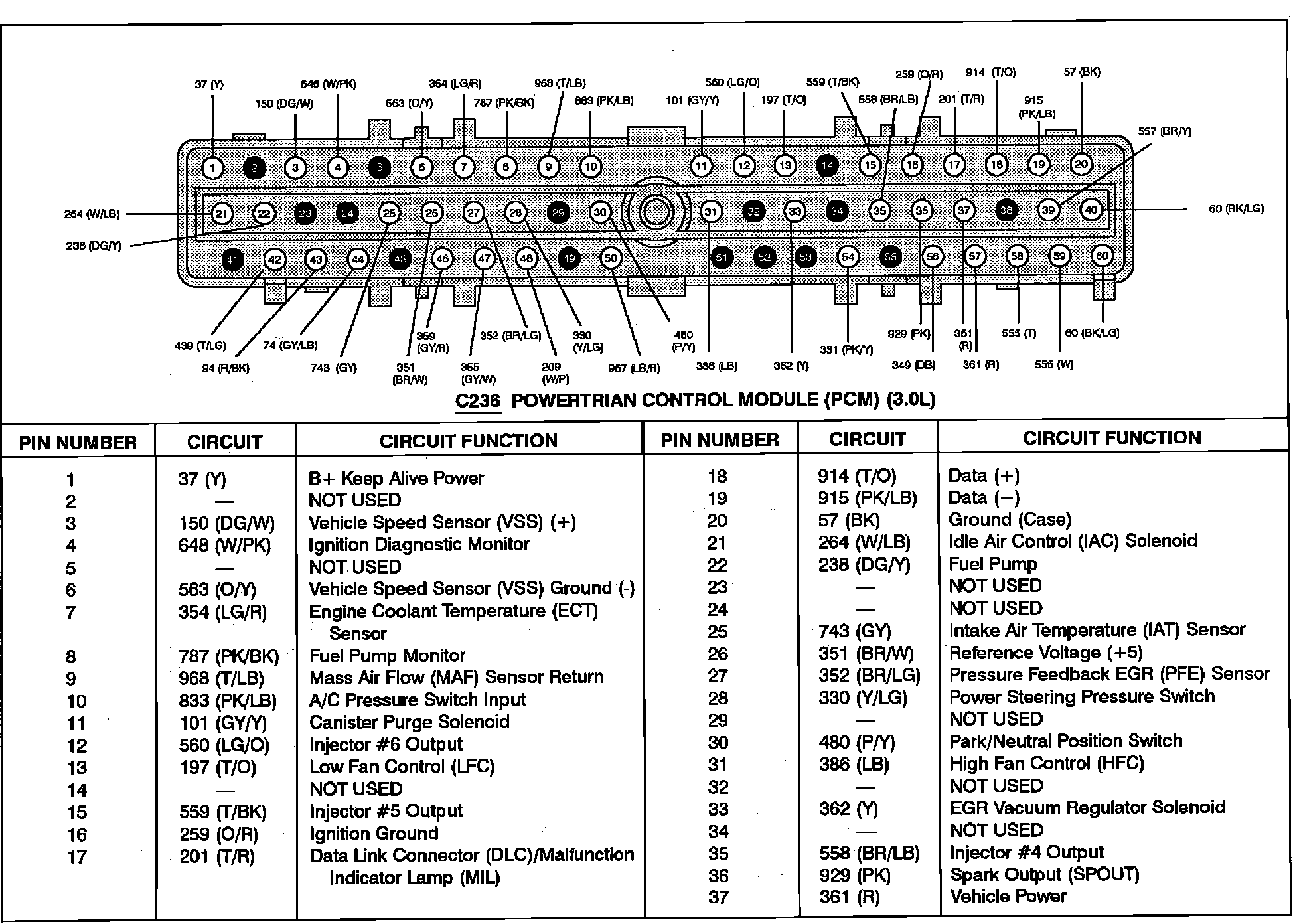

Powertrain Control Module (PCM) Pinout Chart:



Powertrain Control Module (PCM):

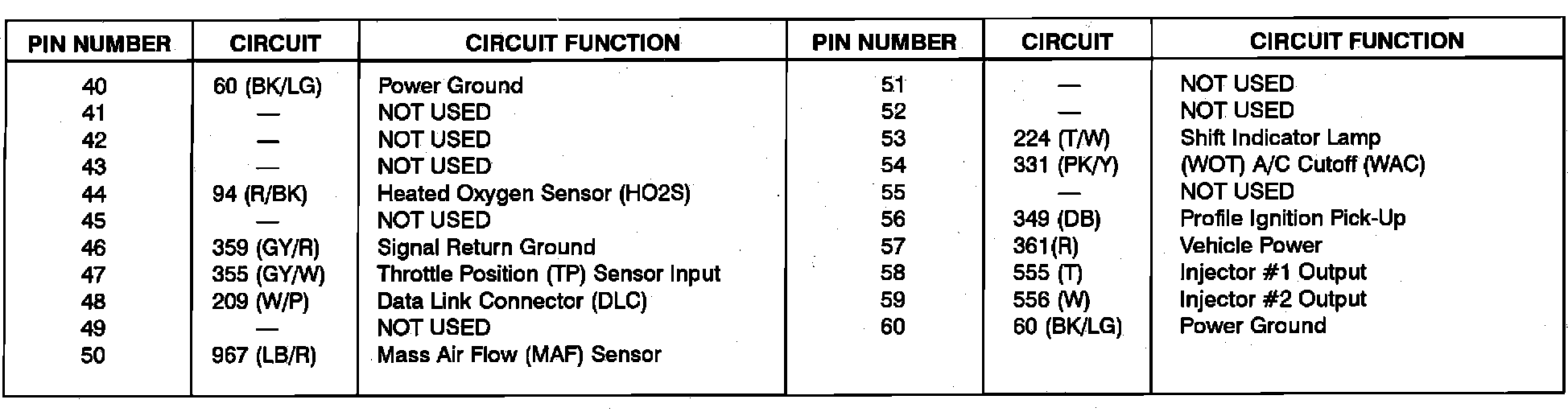

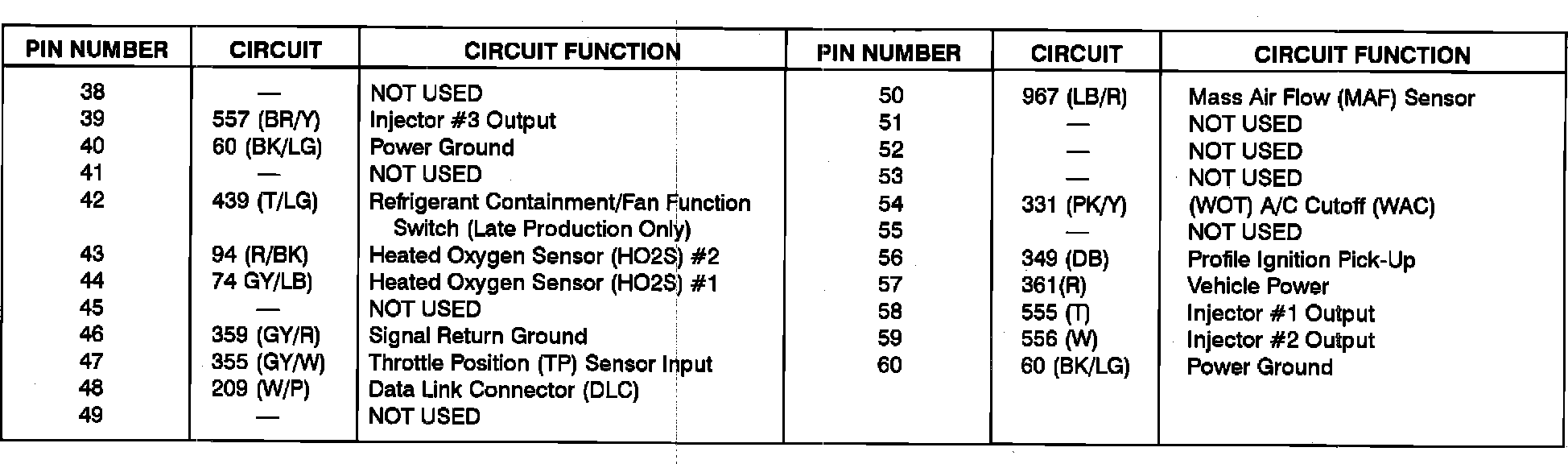

Powertrain Control Module (PCM) Pinout Chart:
