Engine Control Module

Powertrain Control Module (PCM):

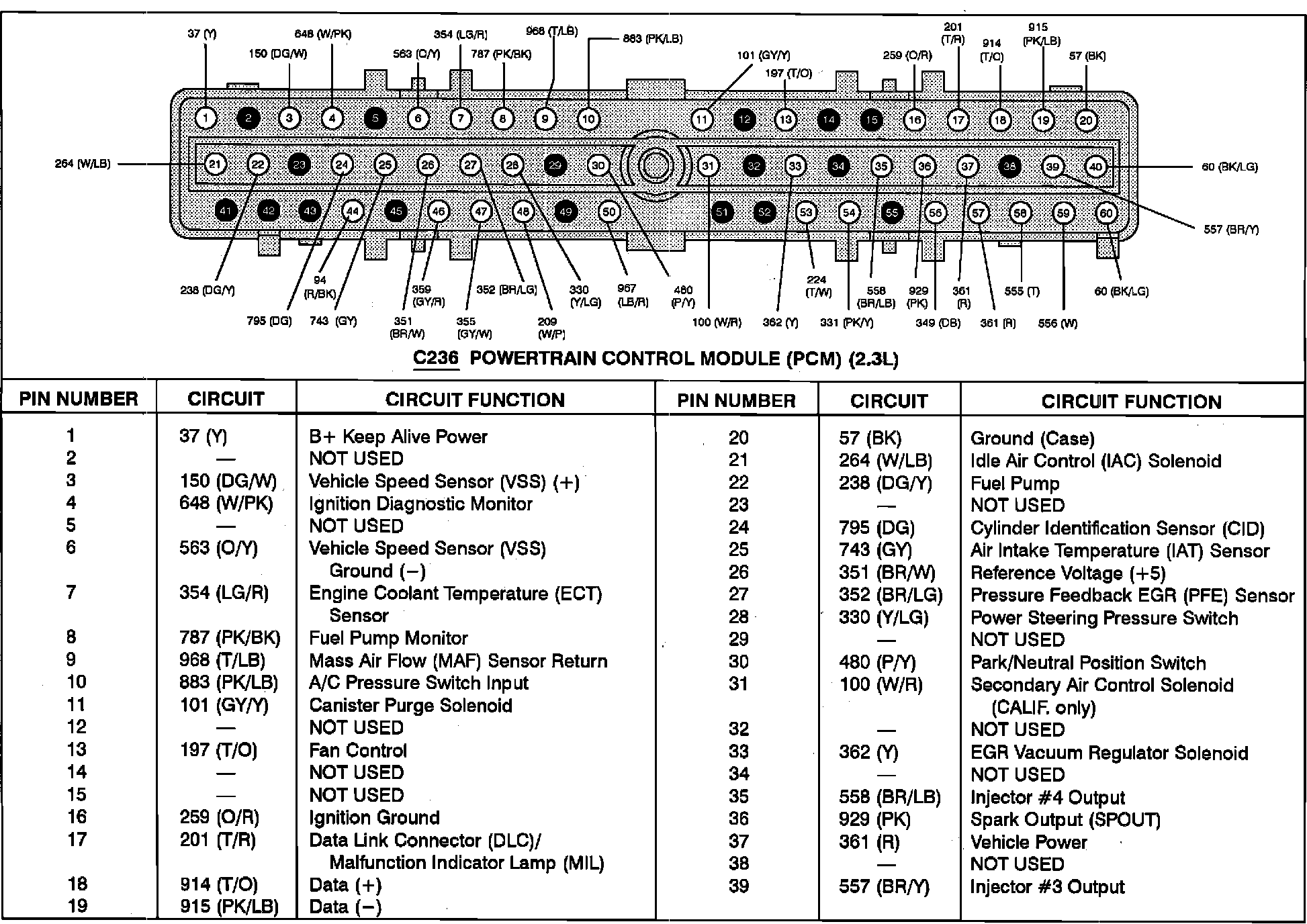

Powertrain Control Module (PCM) Pinout Chart:
