lemon-mirror
:
Home
>>
Mercury
>>
1993
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

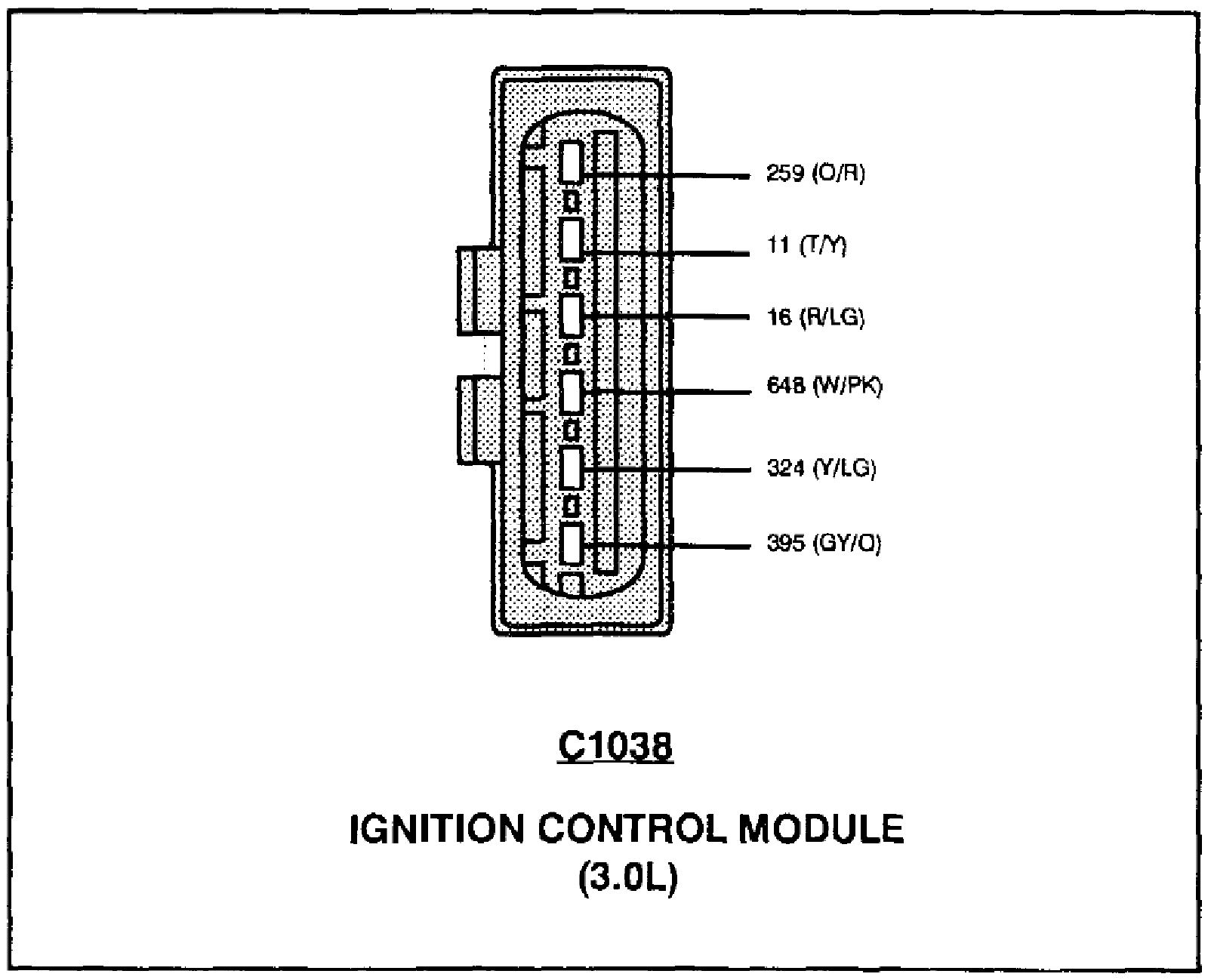

GASOLINE

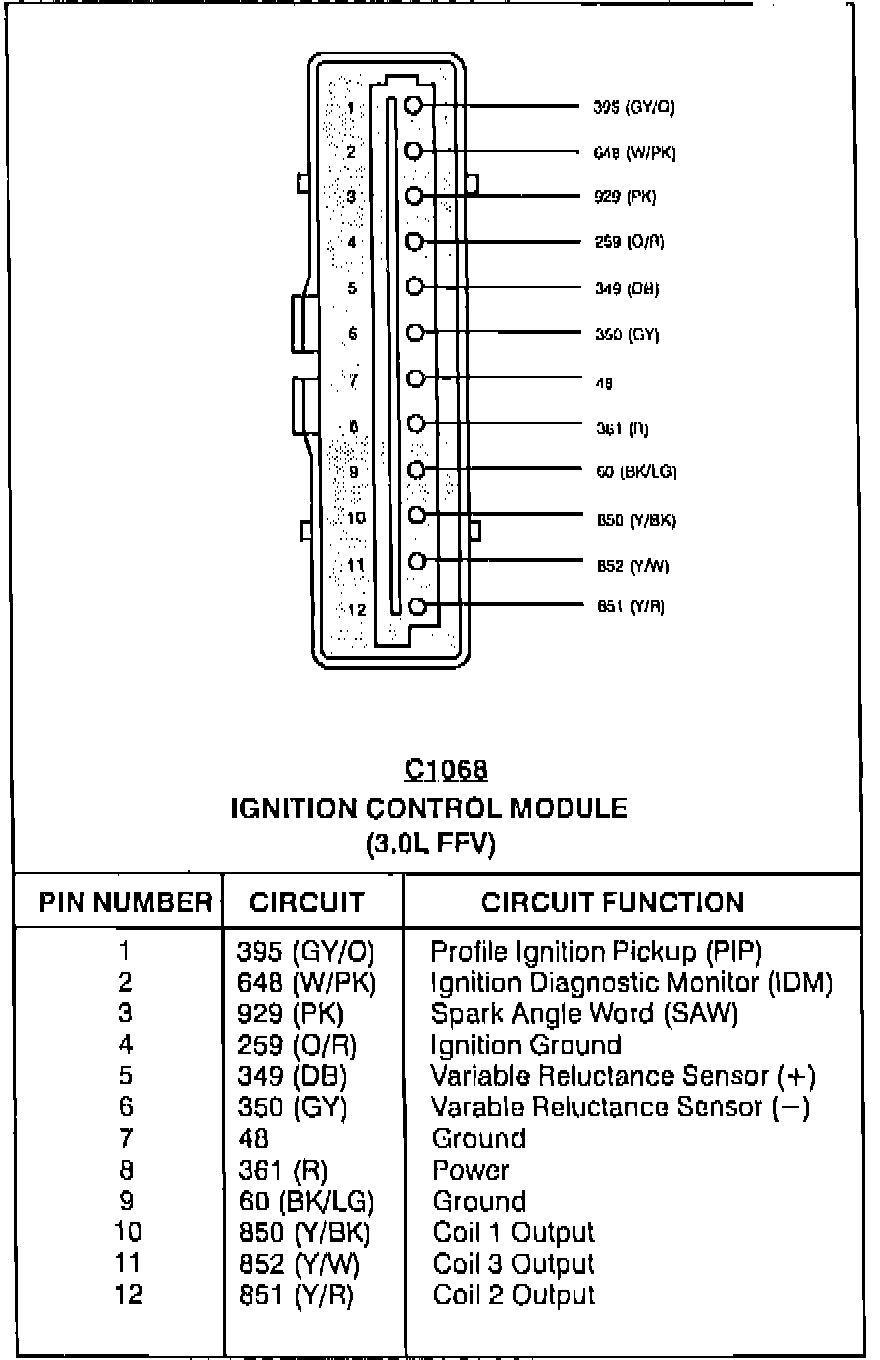

FLEXIBLE FUEL
Ignition Control Module:
