X - Integrated Relay Control Module
>>

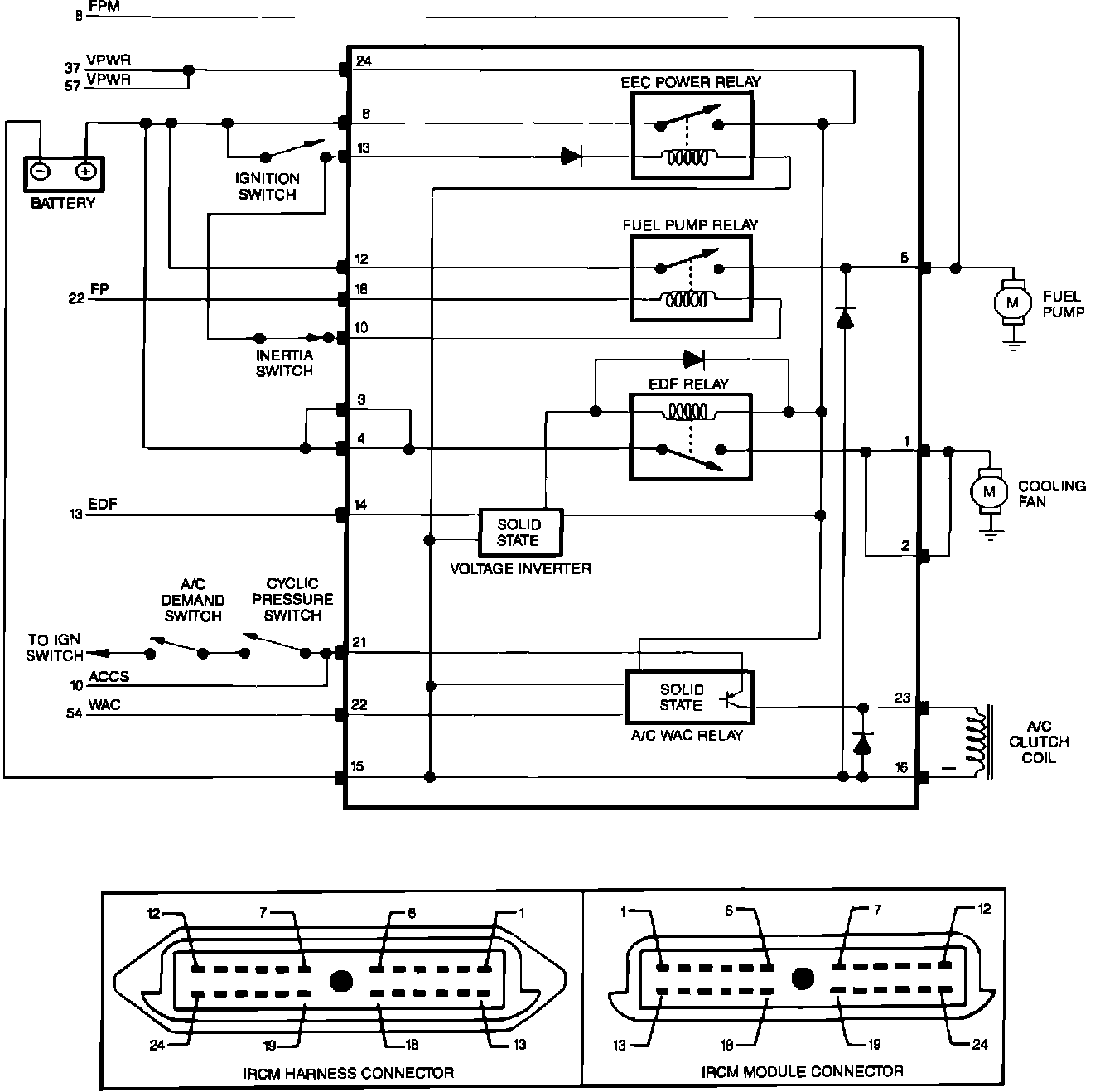

X - Testing Schematic
X - Testing Schematic
Integrated Relay Control Module:
