Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

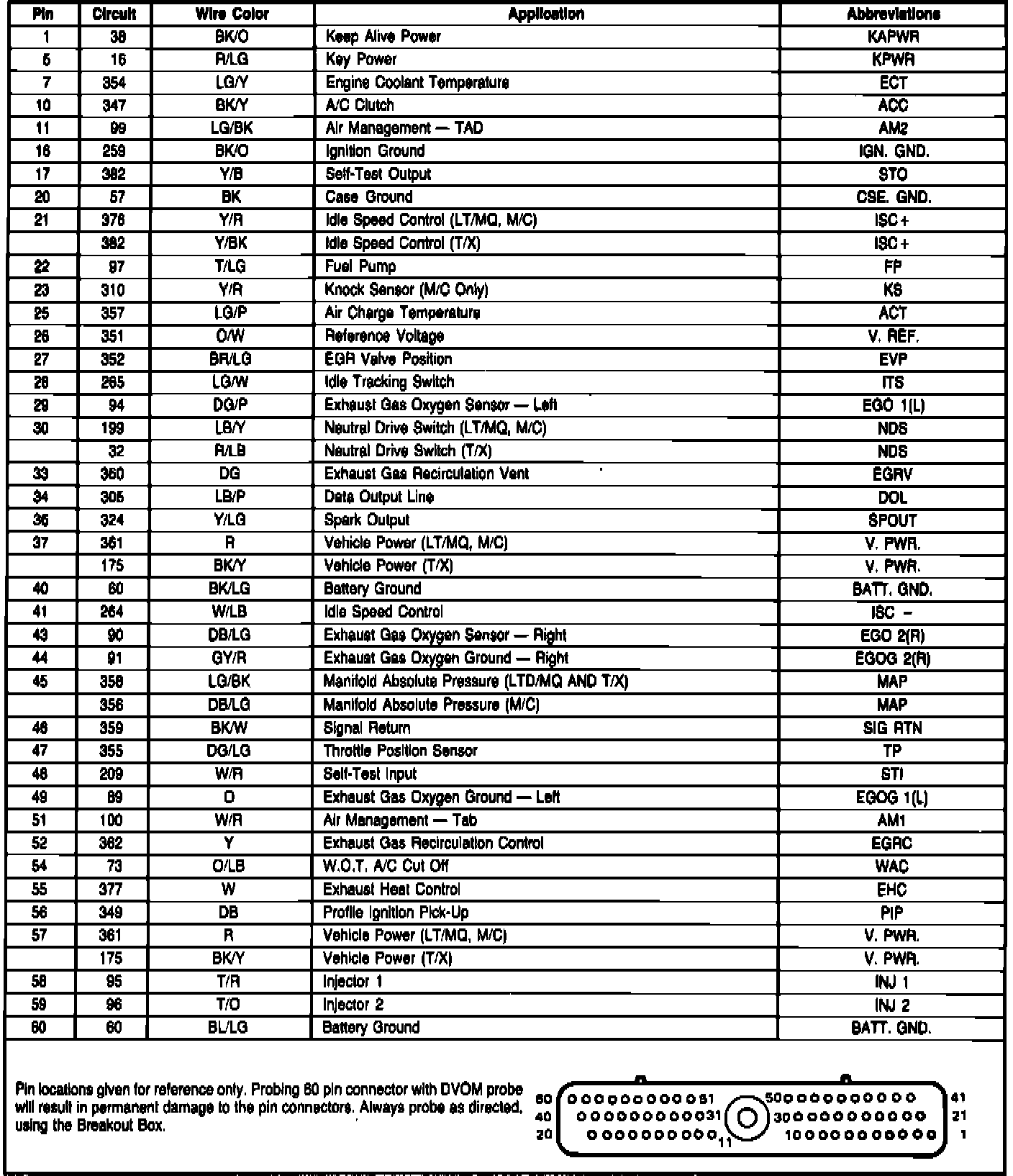

Fig. 236 EEC-IV module connector pin usage. 1986 V6-232 CFI engine:
