Home >> Mercury >> 1985 >> Capri V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

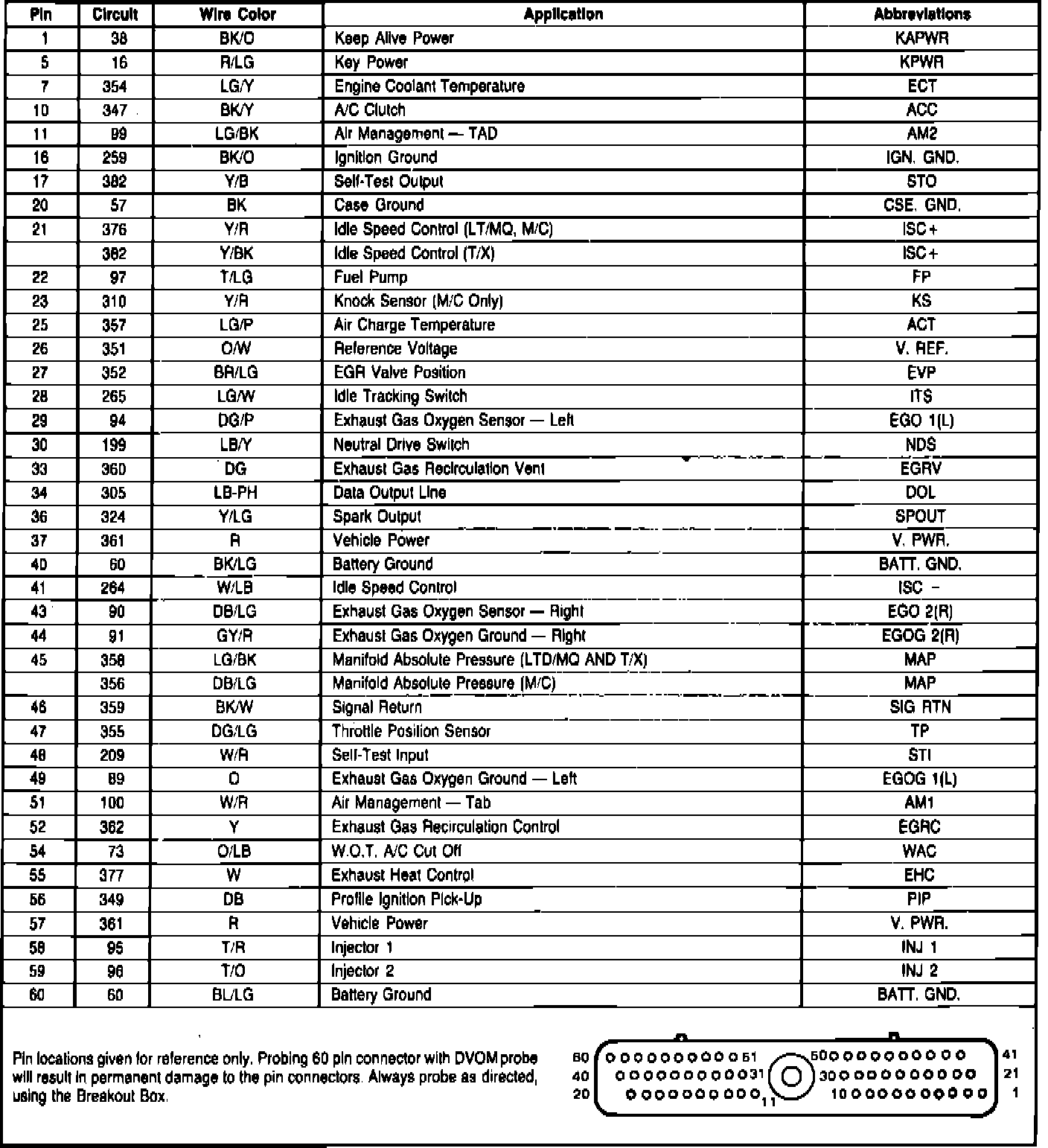

Fig. 163 EEC-IV module connector pin usage. 1985 V6-232 W/CFI:
