Automatic Transmission/Transaxle





TRANSMISSION/TRANSAXLE TECHNICAL DATA

[FS5A-EL]

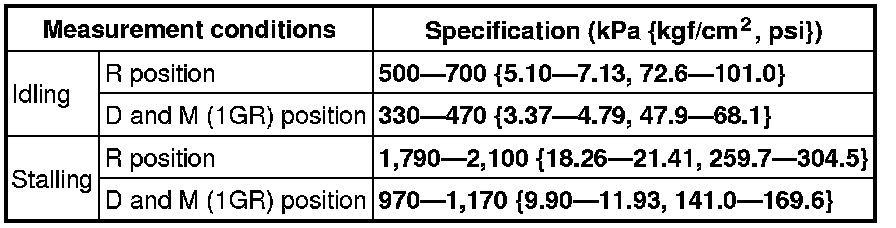

Line Pressure

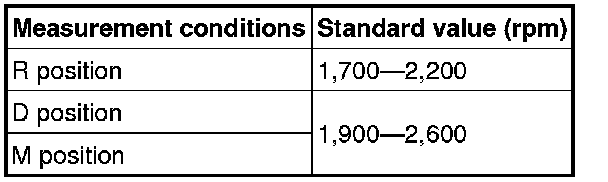

Stall Speed

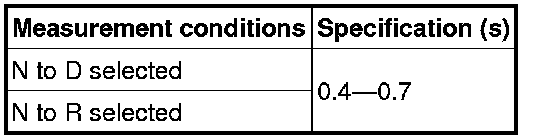

Time Lag






[FW6A-EL]

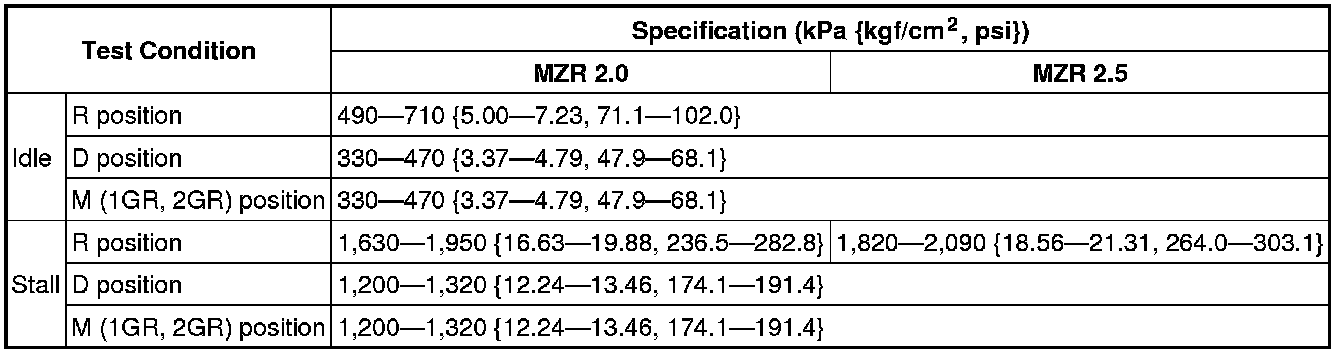

Line pressure

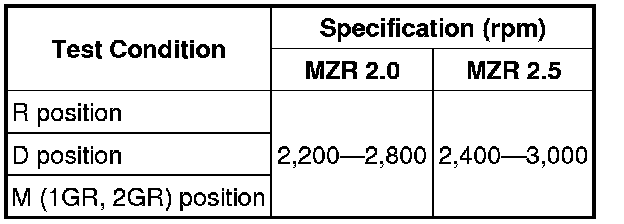

Stall speed

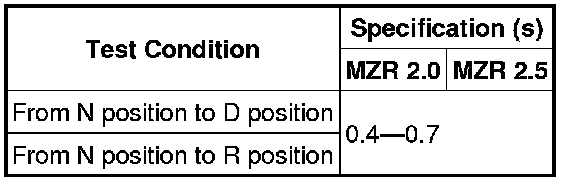

Time lag
