Emission Control Systems: Locations





EMISSION SYSTEM LOCATION INDEX [MZR 2.3 DISI Turbo]

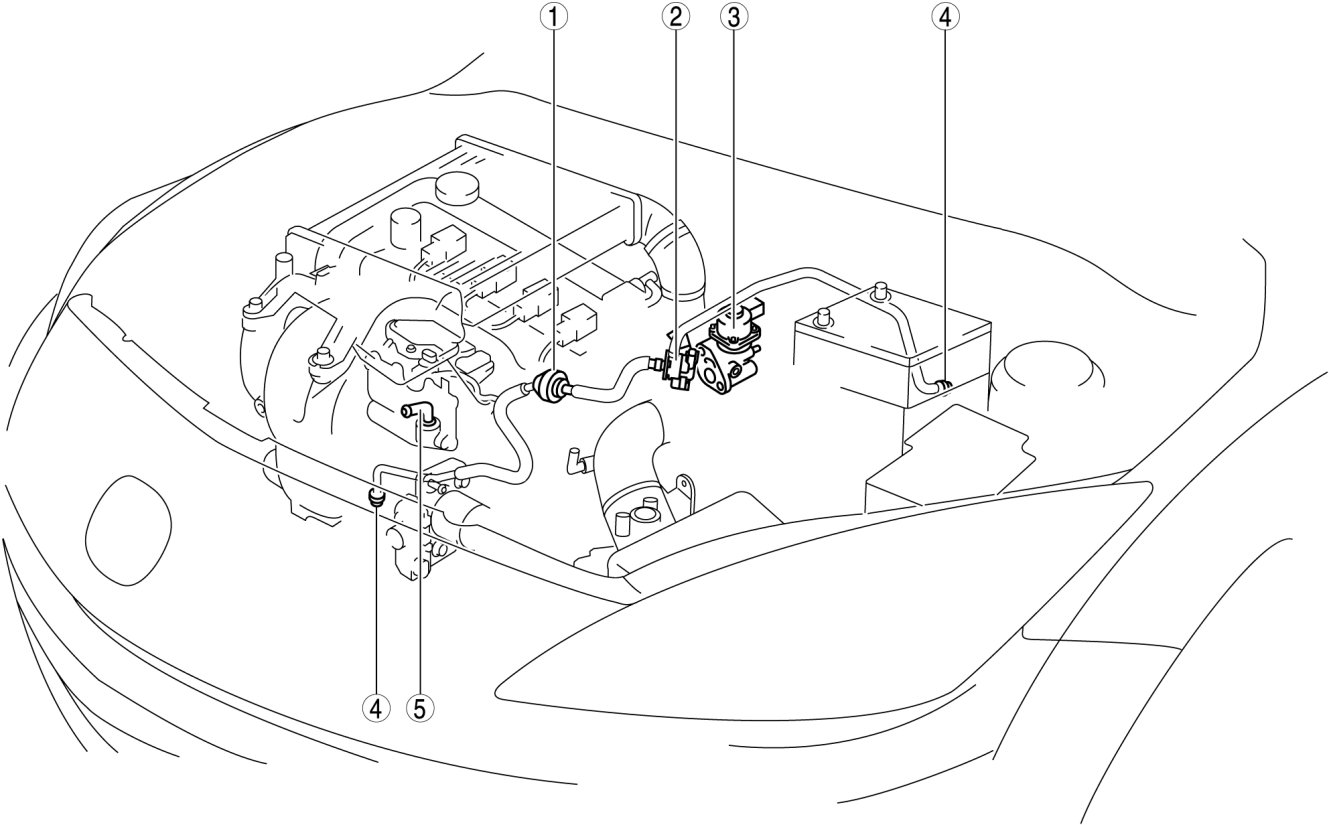

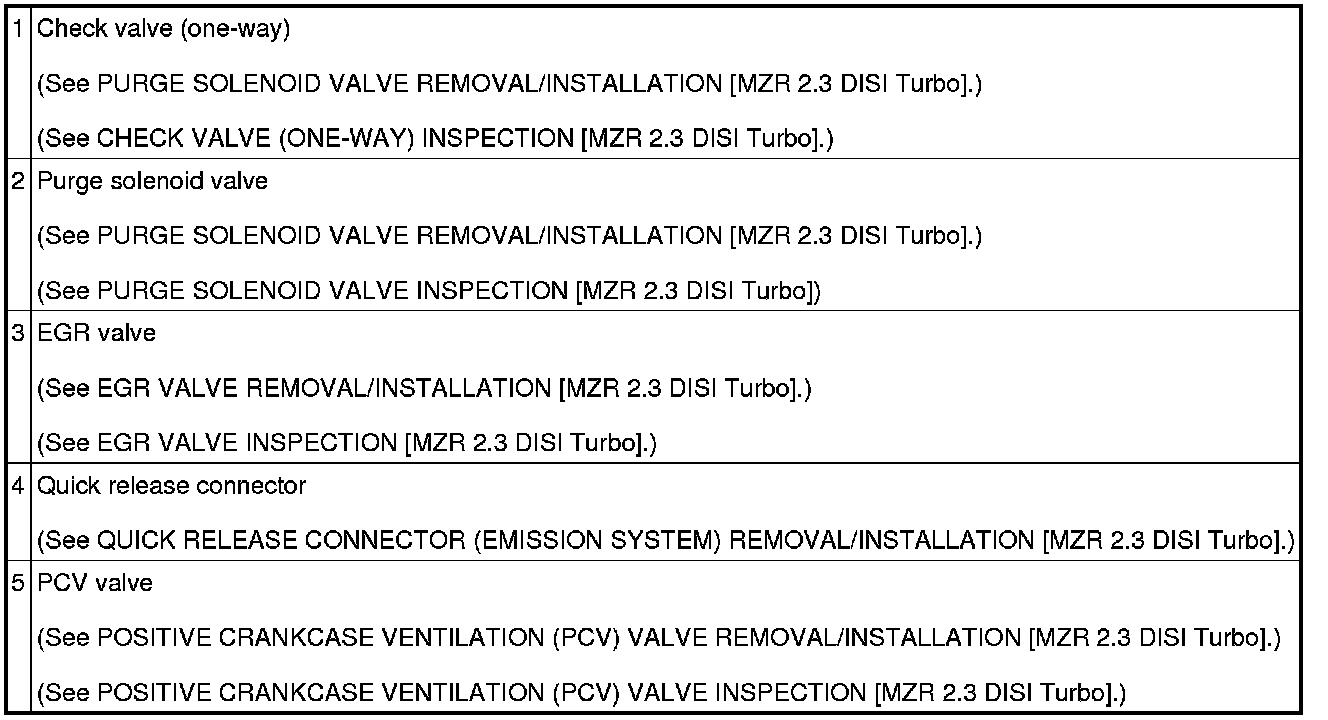

Engine Compartment Side

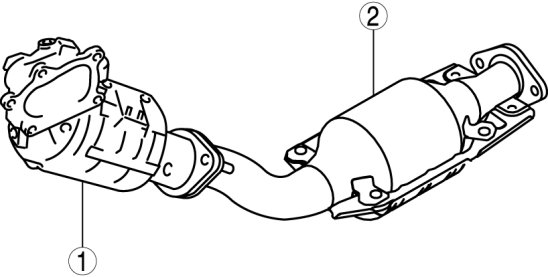

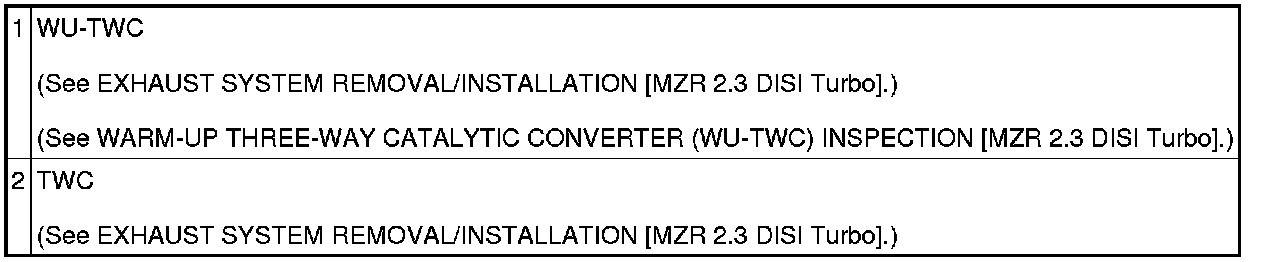

Exhaust System Side

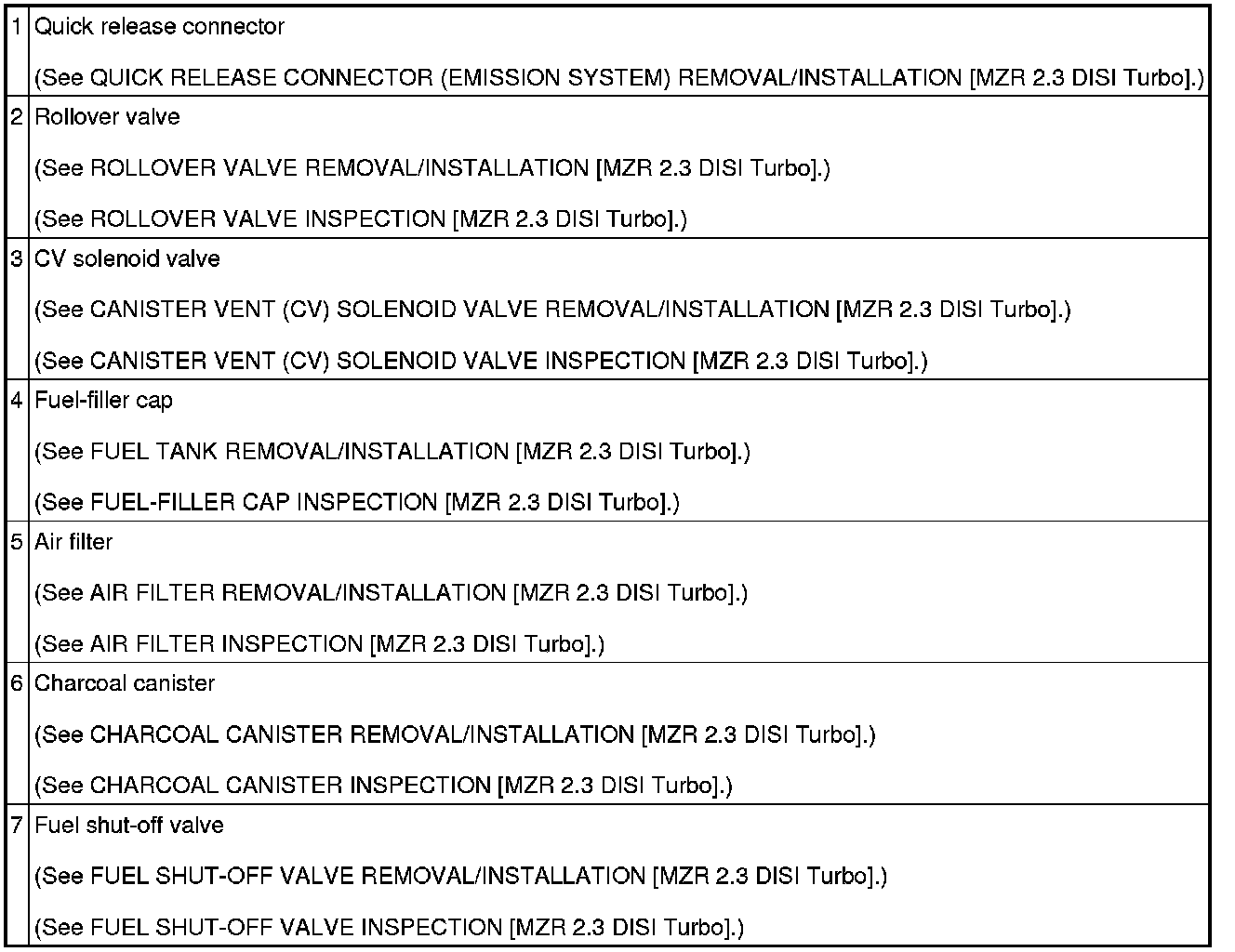

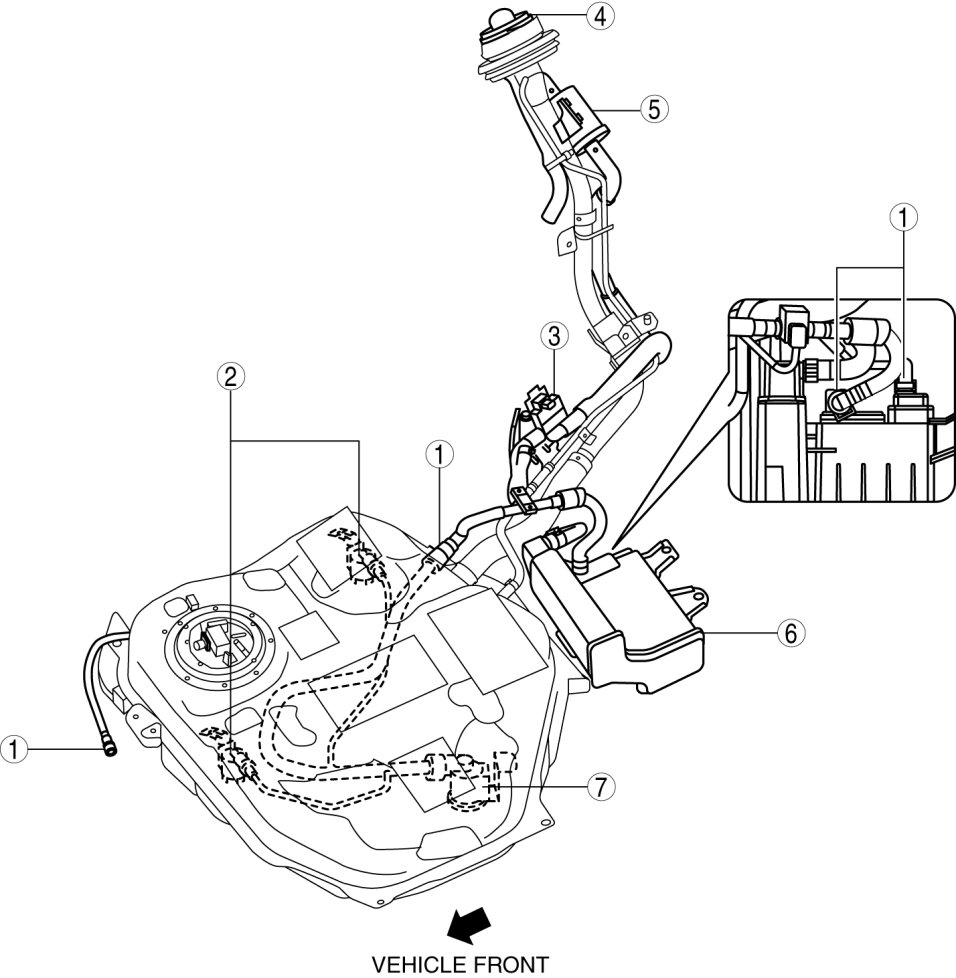

Fuel Tank Side
