Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

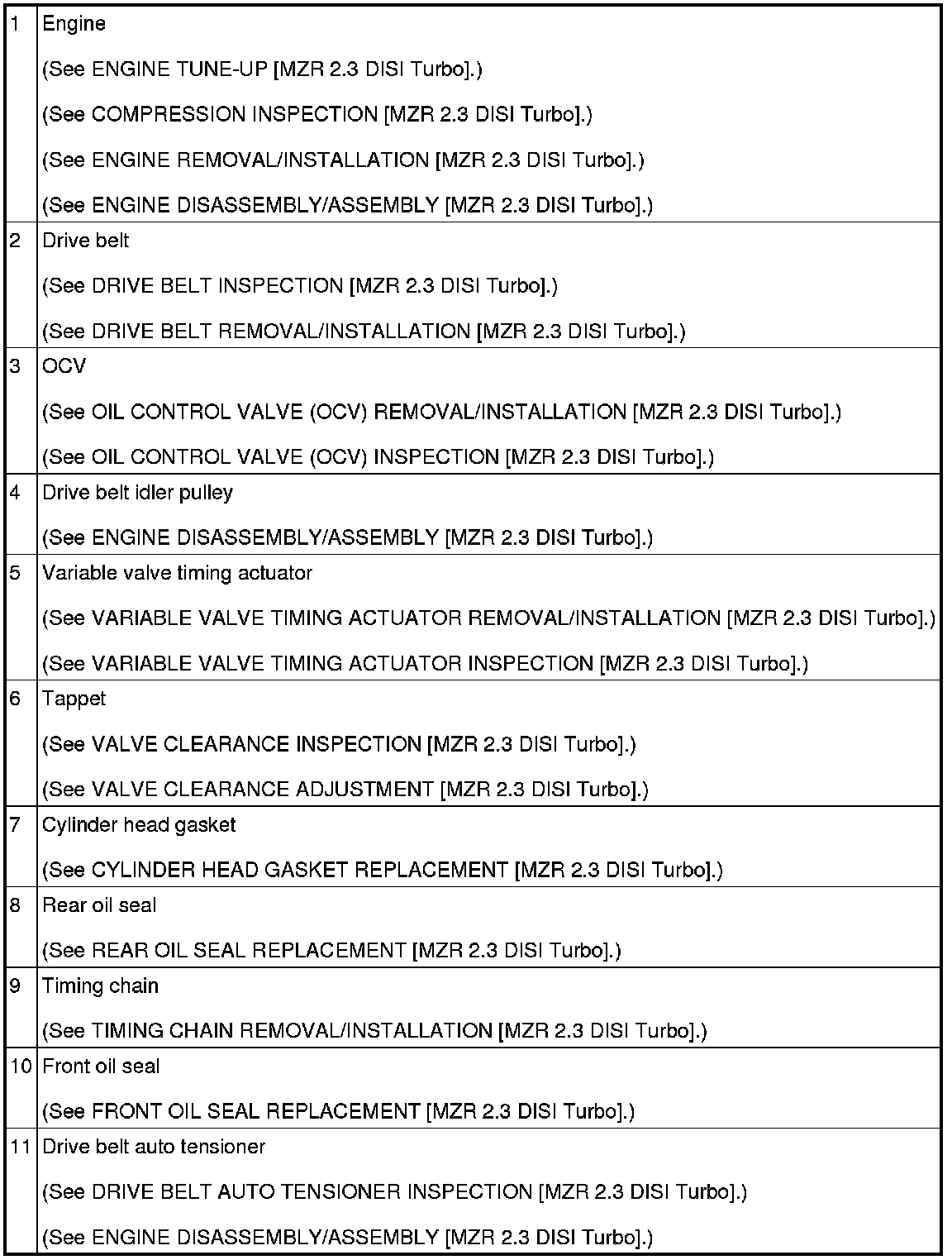

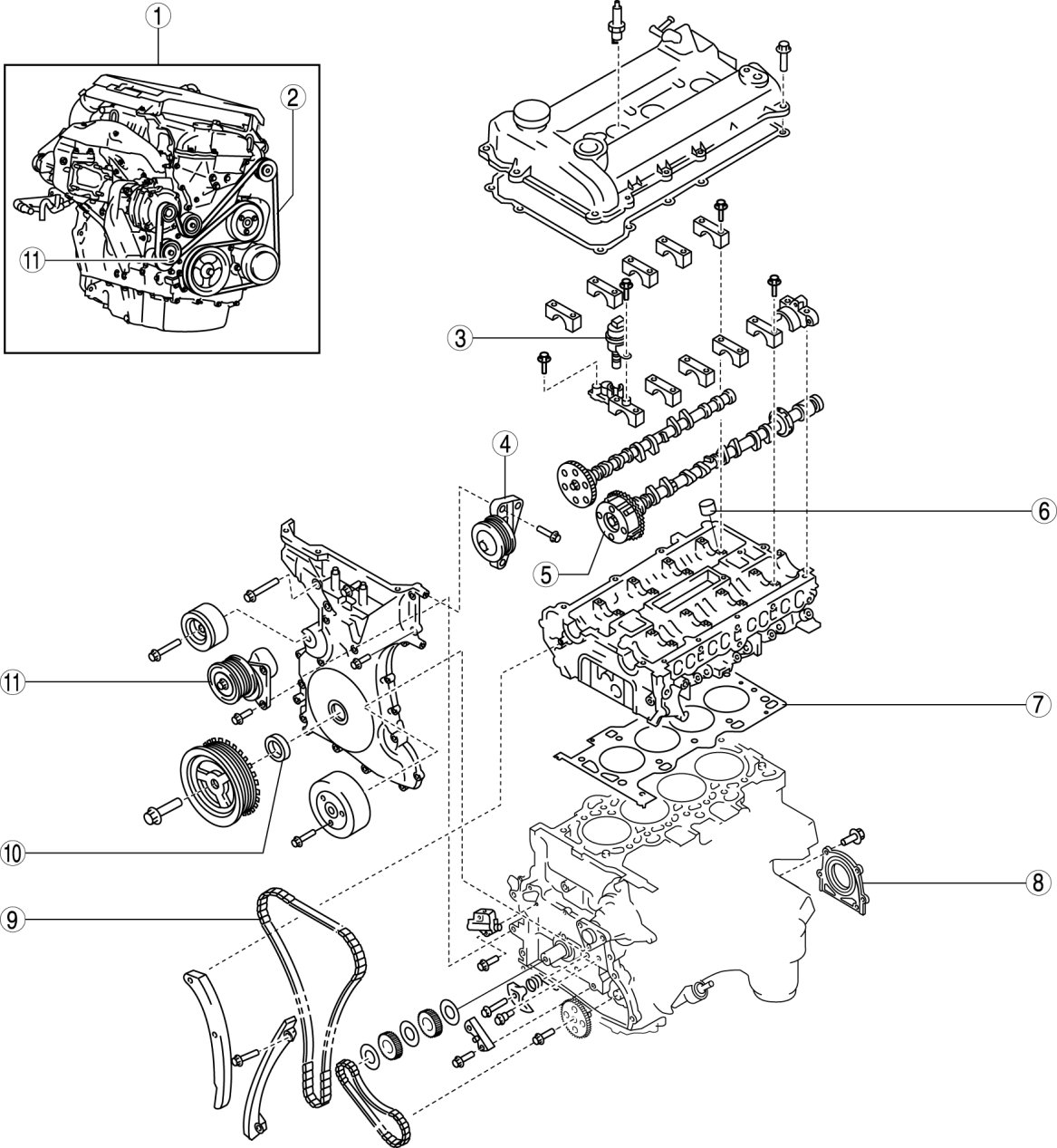

ENGINE LOCATION INDEX [MZR 2.3 DISI Turbo]
