Auto Light-OFF Control Module Removal/Installation

AUTO LIGHT-OFF CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

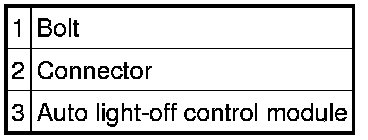

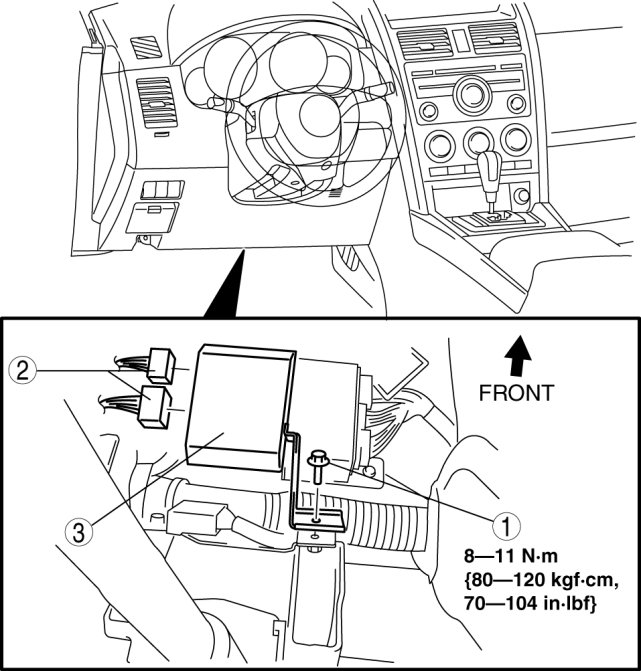

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
