System Specifications
TRANSMISSION/TRANSAXLE TECHNICAL DATA
Automatic Transaxle [FS5A-EL]

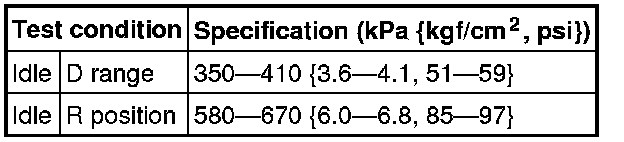

Line Pressure

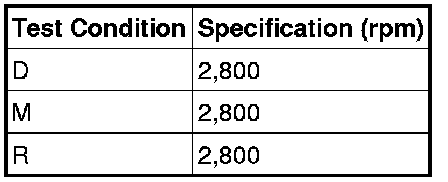

Stall Speed

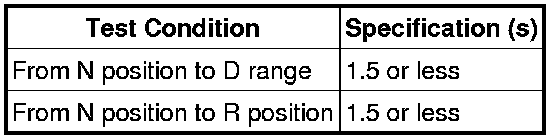

Time Lag
Automatic Transaxle [AW6A-EL, AW6AX-EL]

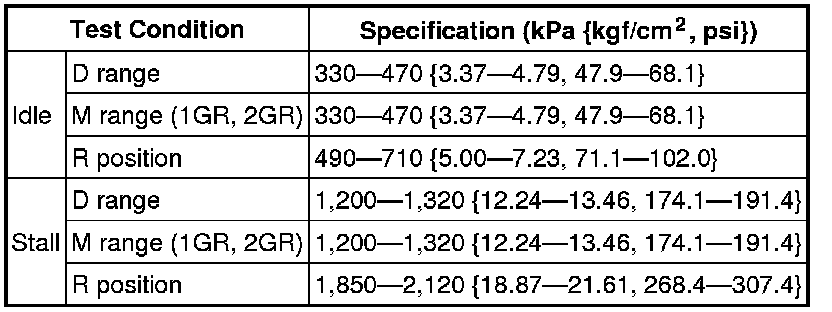

Line pressure specification (while idling)

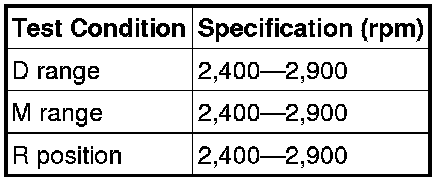

Stall speed

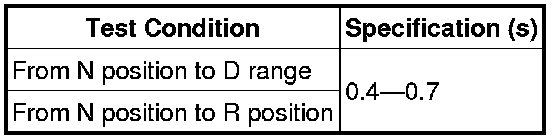

Time lag
TRANSMISSION/TRANSAXLE TECHNICAL DATA
Automatic Transaxle [FS5A-EL]
Line Pressure
Stall Speed
Time Lag
Automatic Transaxle [AW6A-EL, AW6AX-EL]
Line pressure specification (while idling)
Stall speed
Time lag
