Relay Box: Testing and Inspection

RELAY INSPECTION [L5]

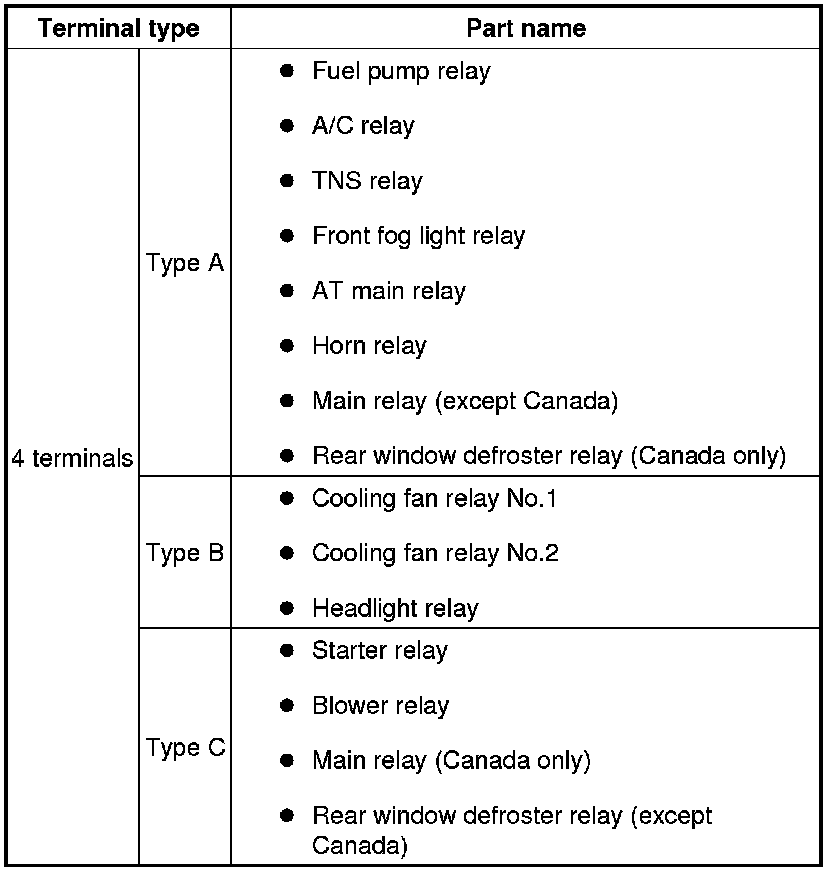

Relay type

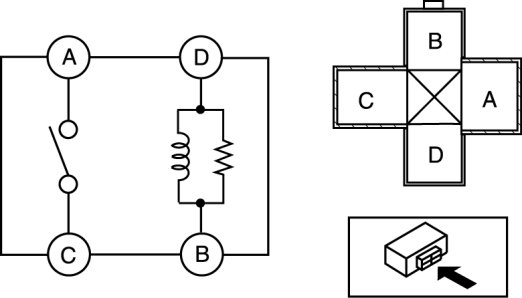

Type A

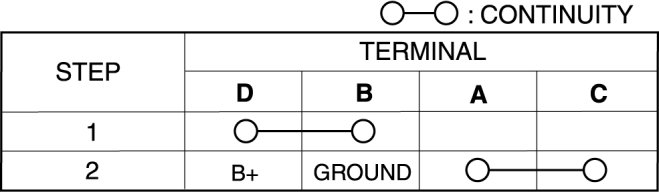

1. Verify the continuity between the relay terminals.






- If not as indicated in the table, replace the relay.

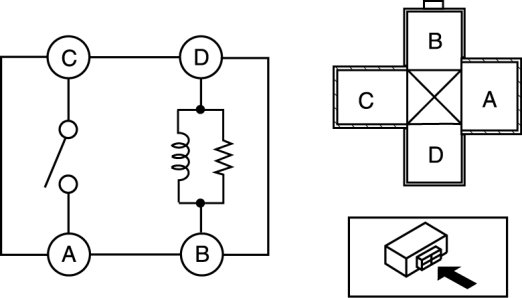

Type B

1. Verify the continuity between the relay terminals.






- If not as indicated in the table, replace the relay.

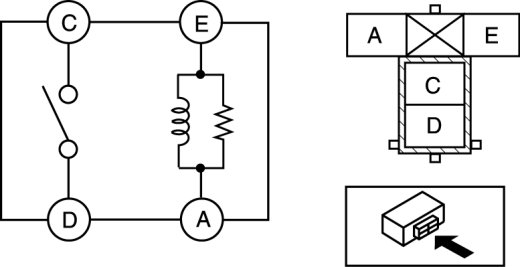

Type C

1. Verify the continuity between the relay terminals.






- If not as indicated in the table, replace the relay.
