Home >> Mazda >> 2012 >> 5 L4-2.5L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Locations

Headlamp Control Module: Locations





LIGHTING SYSTEMS LOCATION INDEX

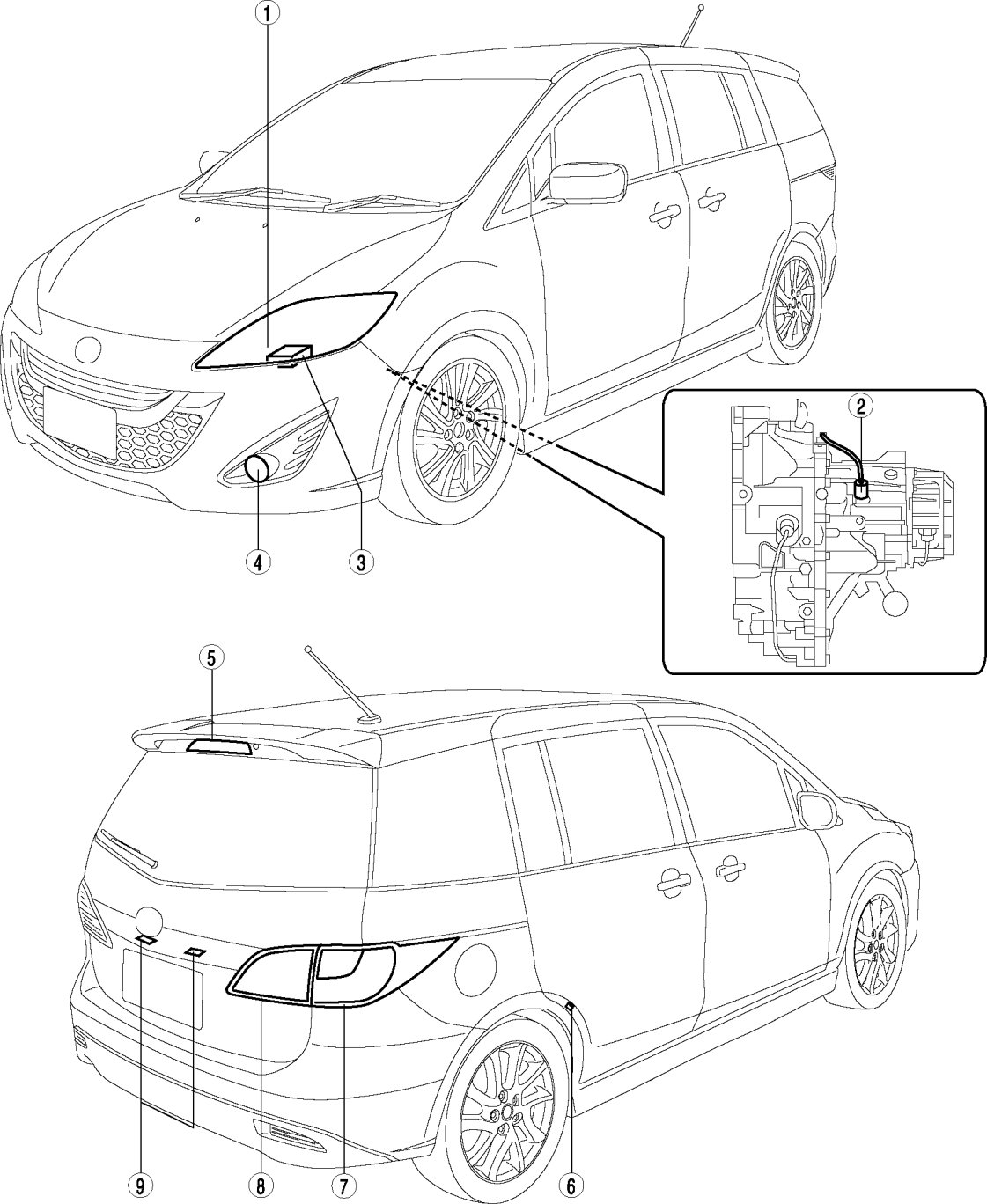

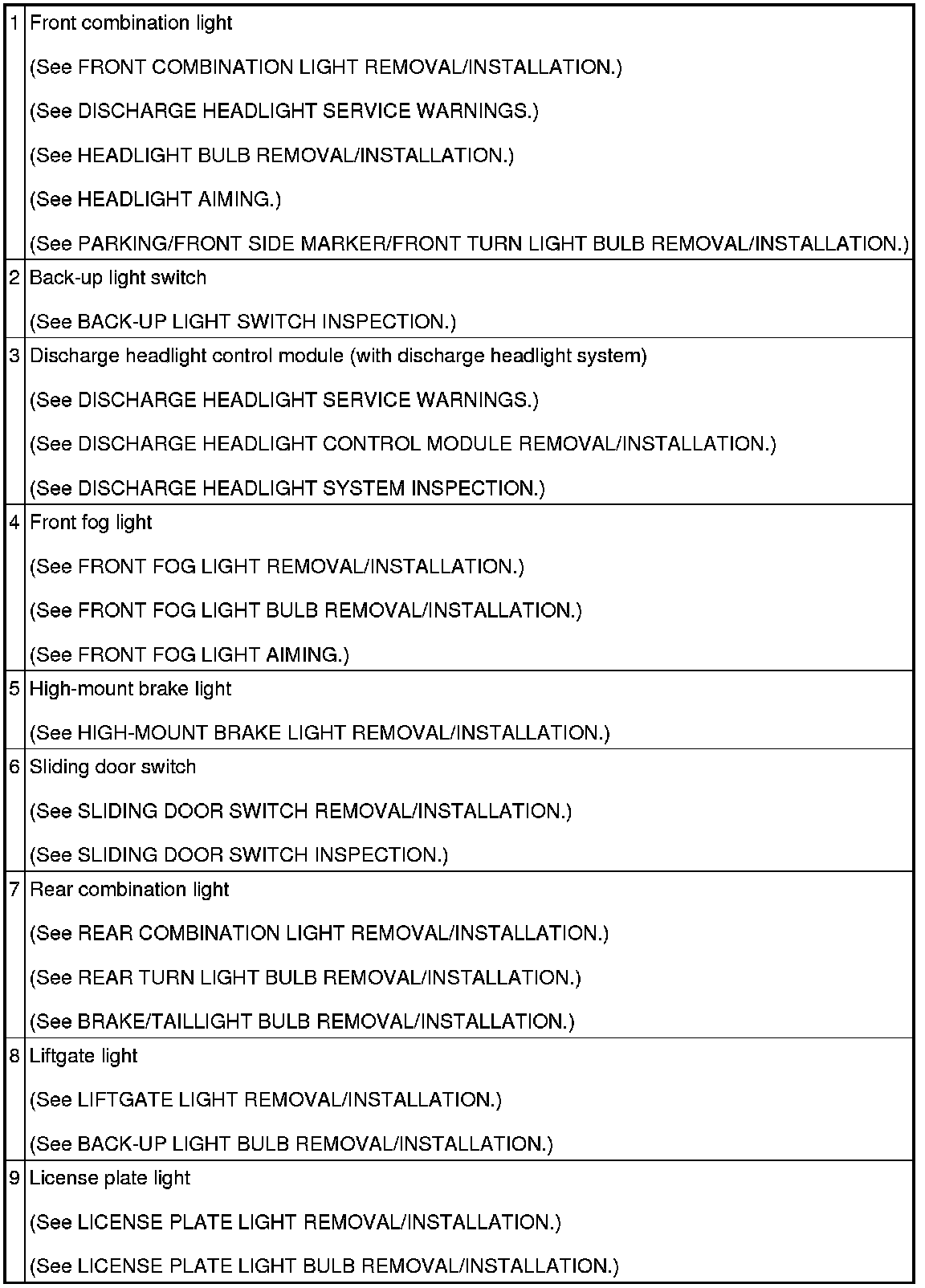

Exterior

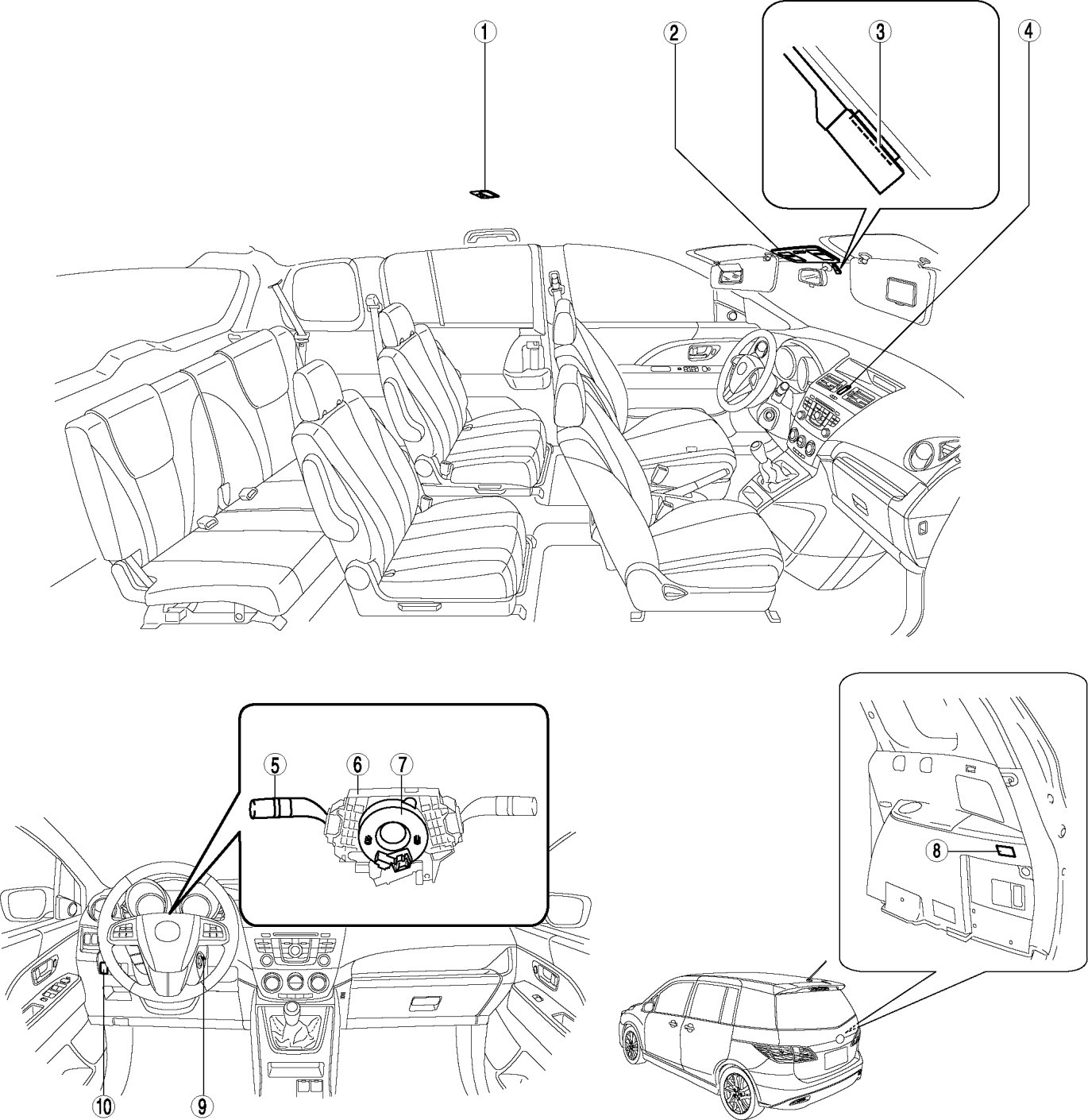

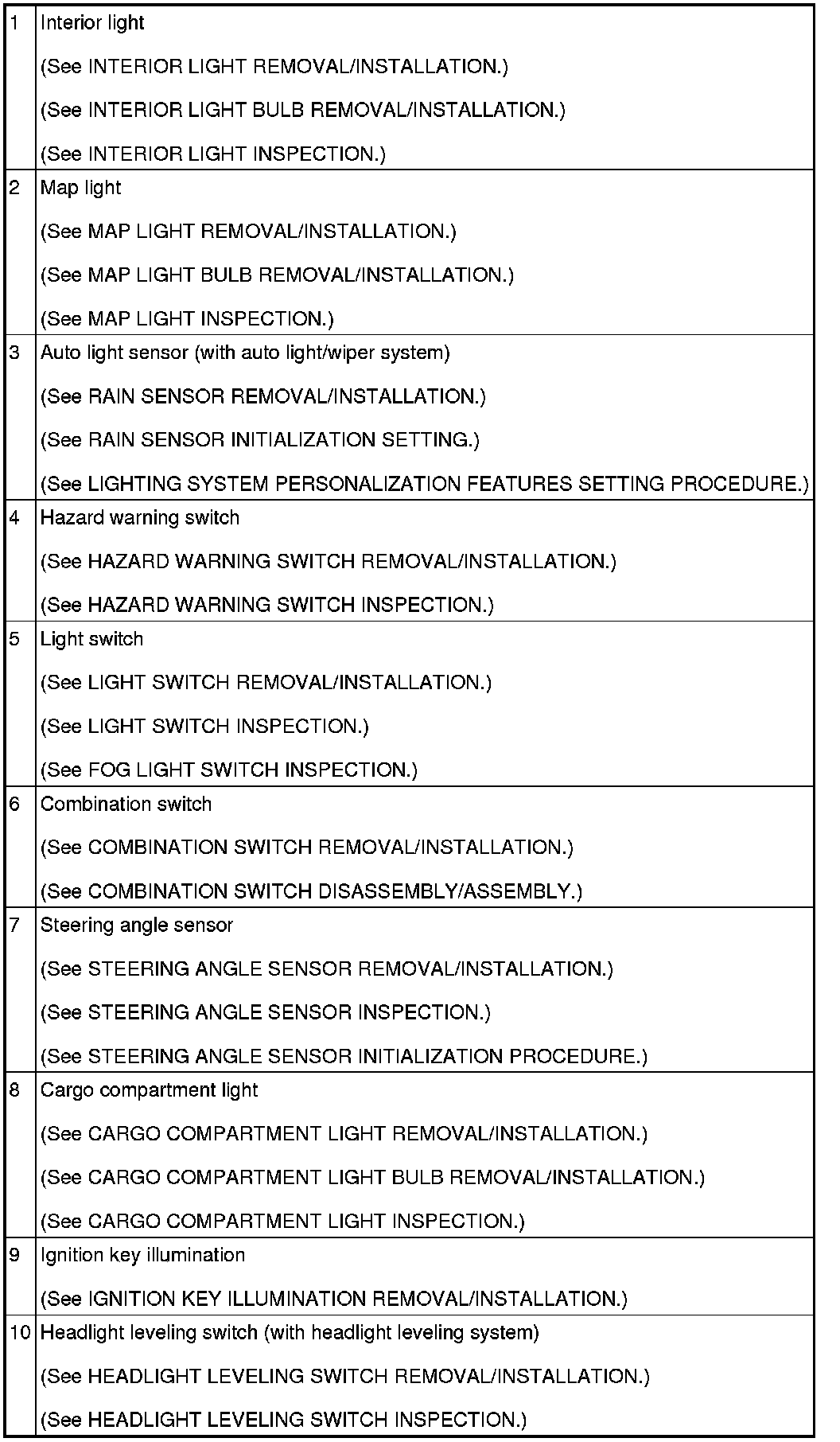

Interior
