Antenna - Keyless Entry: Service and Repair

COIL ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the connector.

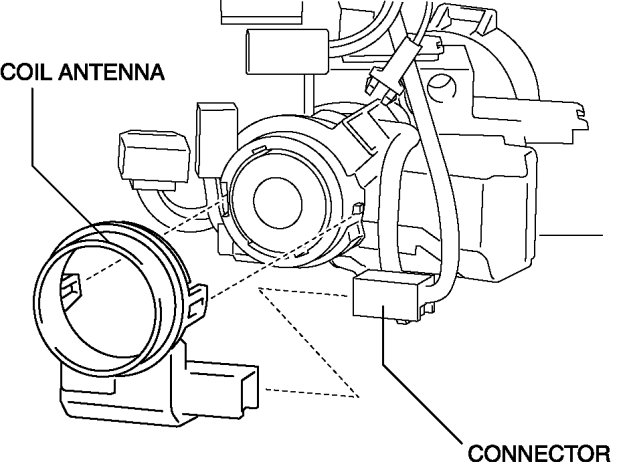

4. Detach the coil antenna hooks and remove the coil antenna from the key cylinder.

5. Install in the reverse order of removal.
