Fuse: Service and Repair

MAIN FUSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

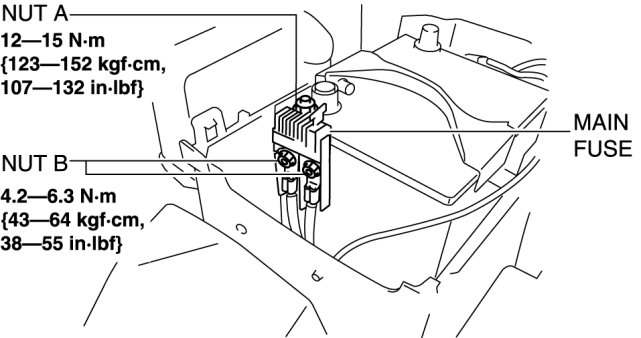

2. Remove nuts A and B shown in the figure.






3. Remove the main fuse.

4. Install in the reverse order of removal.
