Exhaust Manifold
Exhaust Manifold

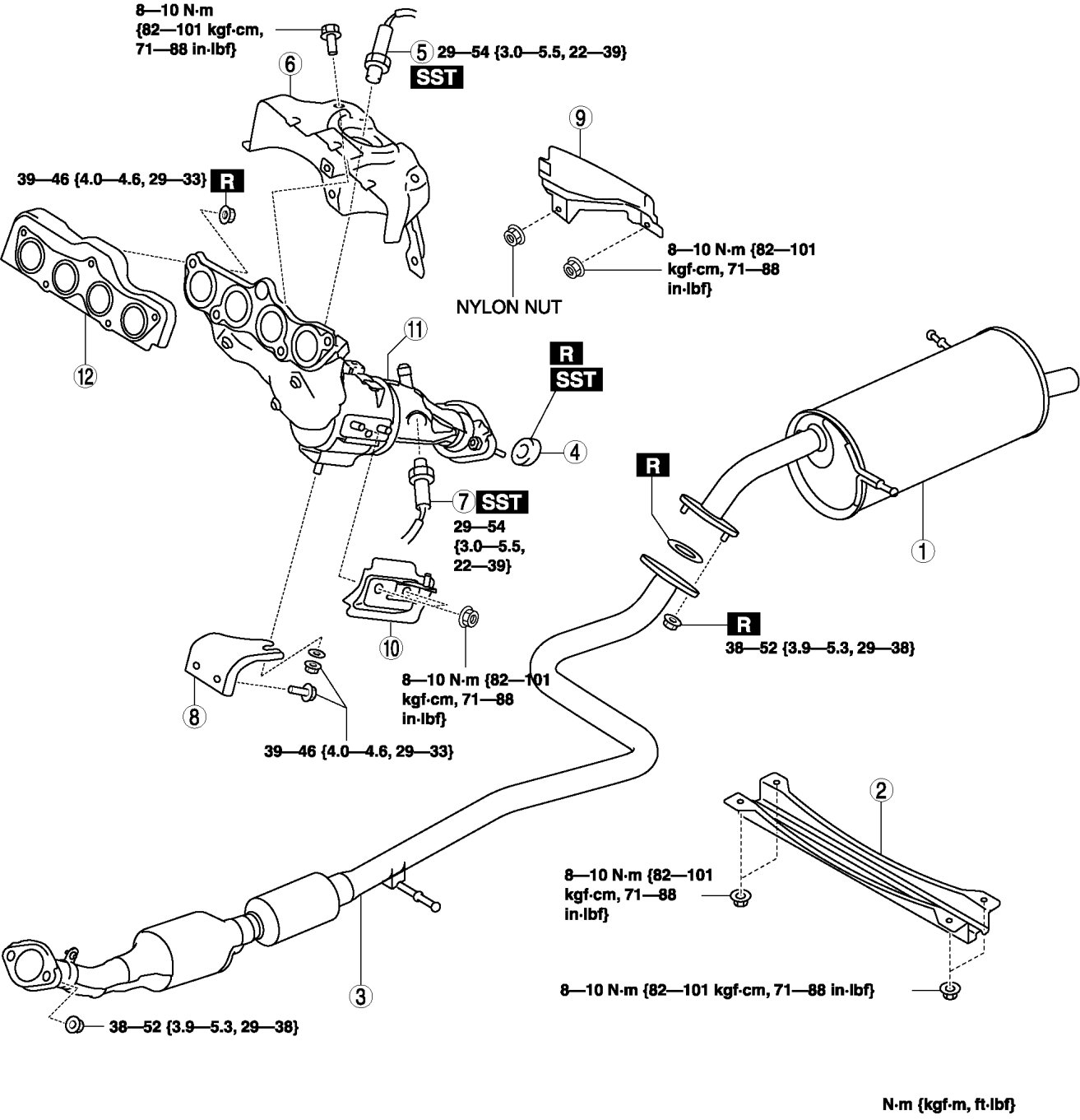

Exhaust System

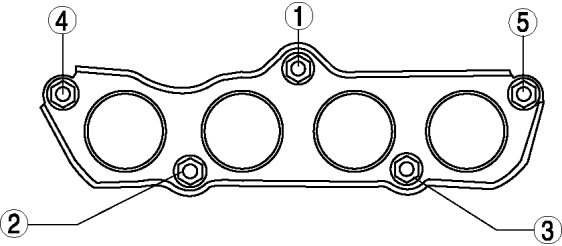

Tighten the
exhaust manifold
installation nuts in the order shown in the figure.
