Home >> Mazda >> 2012 >> 2 L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

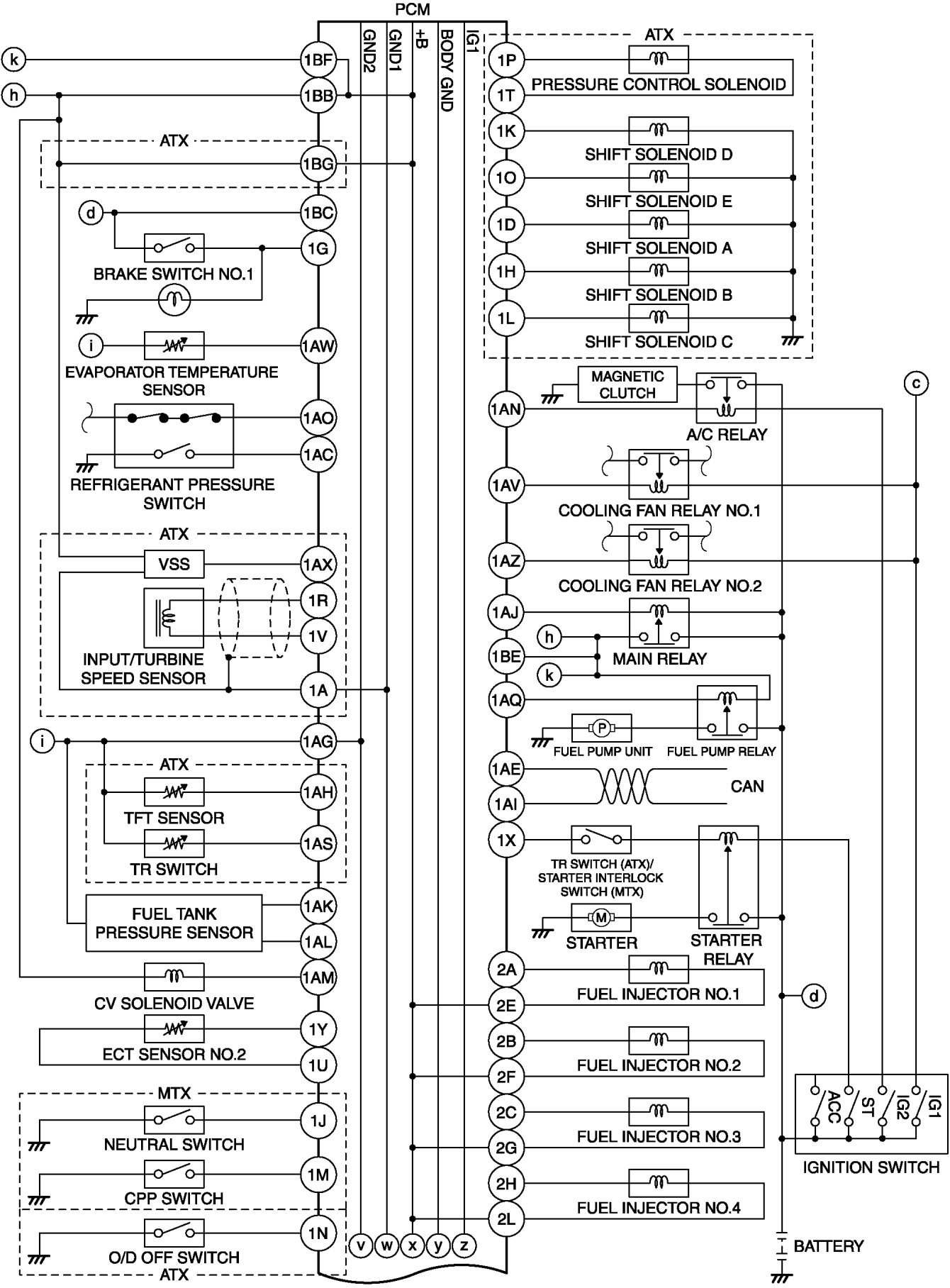

CONTROL SYSTEM WIRING DIAGRAM [MZR 1.5]
